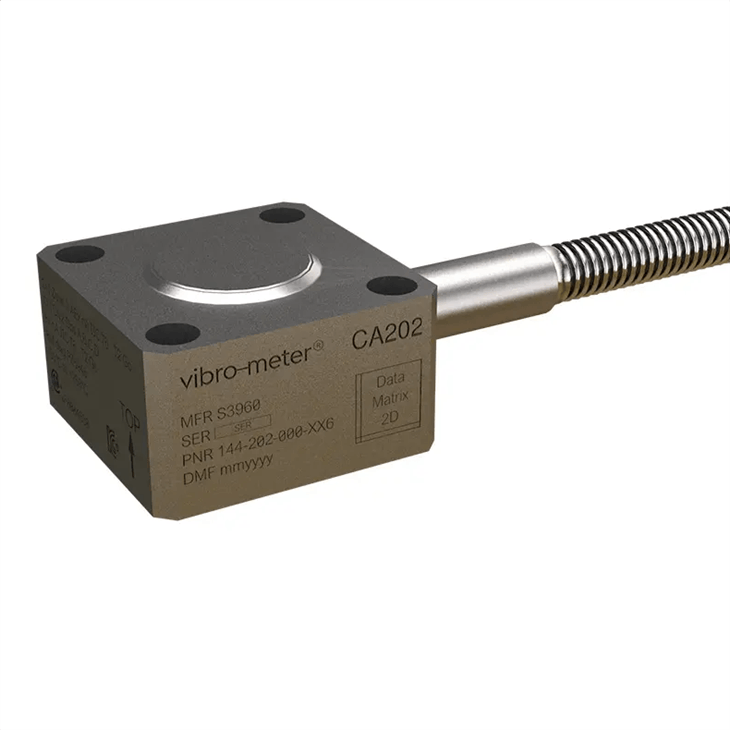

Vibro-Meter CA202 144-202-000-205 Piezoelectric Accelerometer
Item Number:CA202 144-202-000-205
Brand: Vibro-Meter
Lead Time: In stock
Description:Piezoelectric Accelerometer
Payment: T/T
Product Description
CA202 144-202-000-205 piezoelectric accelerometer works on the basis of the piezoelectric effect, which converts the mechanical stress it senses into an electrical signal. It uses a polycrystalline measuring element in a symmetrical shear mode, built into an austenitic stainless steel housing with internal insulation.
It is equipped with an integrated low-noise cable, which is protected by a flexible stainless steel protective hose (sealed and leakproof), and the hose is sealed and welded to the sensor to form a sealed and leakproof component.
There are versions suitable for different industrial environments, including explosion-proof versions for potentially explosive environments (hazardous areas) and standard versions for non-hazardous areas, designed for heavy-duty industrial vibration monitoring and measurement.
Function & Features
- High sensitivity: 100 pC/g
- Frequency response range: 0.5 to 6000 Hz
- Temperature range: −55 to 260°C
- Available in standard version and explosion-proof version certified for use in potentially explosive atmospheres.
- Symmetrical sensor with internal housing insulation and differential output.
- Heat-tight welded austenitic stainless steel housing with heat-resistant stainless steel protective hose
Specifications
|
Category |
Specification |
| Series | CA202144-202-000-205 |
|
Signal Transmission |
2-pin system, insulated from housing, charge output. |
|
Requires a charge converter (IPC70x signal conditioner). |
|
|
Dynamic Measurement Range |
0.01 to 400 g (peak). |
|
Overload Capability (Spike) |
Up to 500 g (peak). |
|
Linearity |
±1% (0.01–20 g peak); ±2% (20–400 g peak). |
|
Transverse Sensitivity |
≤3%. |
|
Resonant Frequency |
>22 kHz (nominal). |
|
Frequency Response |
±5% (0.5–6000 Hz); lower cutoff frequency determined by signal conditioner; typical deviation +10% at 8 kHz. |
|
Internal Insulation Resistance |
≥10⁹ Ω. |
FAQ
Q: What is the brand?
A: Spares
Q: What is the type?
A:Piezoelectric Accelerometer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
