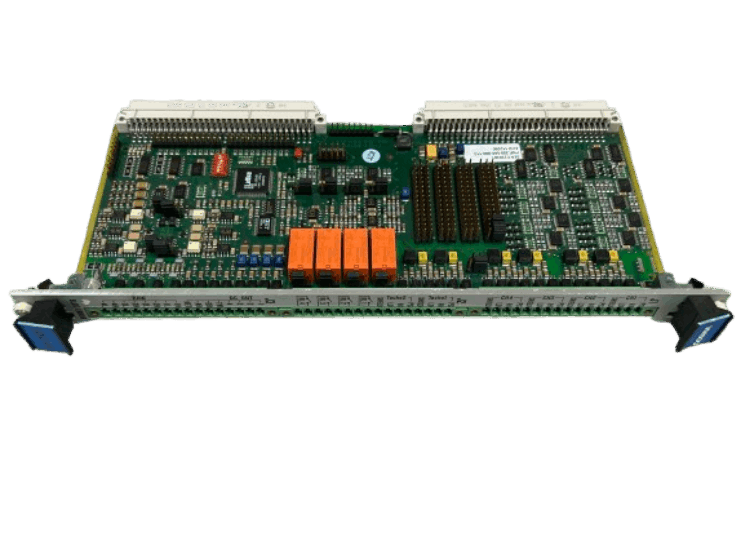

Vibro-meter IOC4T 200-560-000-114 Input/Output Card
Item Number: IOC4T 200-560-000-114
Brand: Vibro-meter
Lead Time: In stock
Description:Input/Output Card
Payment: T/T
Product Description
The IOC4T 200-560-000-114 Input/Output Card is the signal interface of the MPC4 mechanical protection card. It is installed at the rear of the rack and is directly connected to the rack backplane through two connectors. Each IOC4T card is associated with a corresponding MPC4 card and is installed directly behind it, communicating with the MPC4 card through the Industry Pack (IP) interface in slave mode.
Function & Features
- Dynamic Signal Input: The IOC4T card receives raw vibration/speed signals from vibration sensors (e.g., eddy current probes, accelerometers) and transmits them to the MPC4 card for processing.
- Analog Voltage Output (0–10 V): The IOC4T card provides a calibrated signal via an onboard DAC (digital-to-analog converter).
- Current Output (4–20 mA): The IOC4T card uses a voltage-to-current converter (jumper selectable).
- Local Relays: The IOC4T card has 4 programmable relays that can be configured via software to trigger MPC4 alarms (e.g., "Sensor OK," "Alarm," "Danger").
Specifications
|
Parameter |
Details |
|
Accuracy |
≤±1.5% |
|
Linearity error |
≤±0.5% |
|
Admissible load on output |
>100 kΩ for voltage output. <325 Ω for current output. |
|
Relay names |
RL1 to RL4 |
|
Type |
PE014005 |
|
Contact arrangement |
1 x NC or 1 x NO contact per relay (user configurable). The selected contacts are available on J2. |
|
Nominal rated voltage |
250 V<sub>AC</sub> |
|
Nominal rated current |
5 A<sub>AC</sub> |
|
Maximum breaking capacity (without contact protection) |
1250 VA |
Questions & Answers
FAQs
Q: What is the brand?
A: Others
Q: What is the type?
A:Input/Output Card
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
