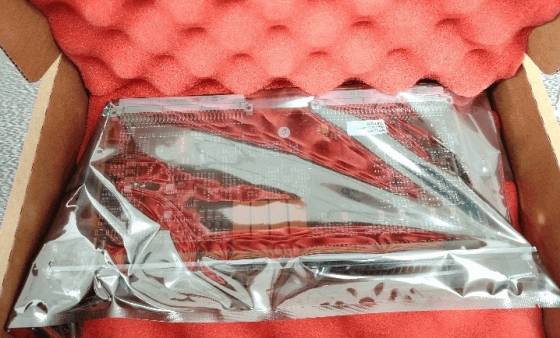

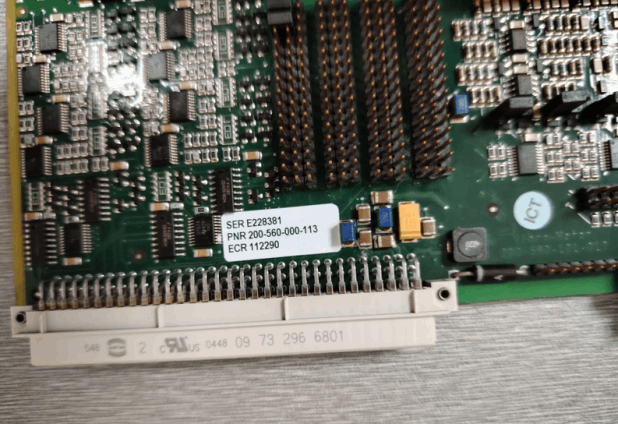

Vibro-Meter IOC4T 200-560-000-013 Input/Output Card
Item Number:IOC4T 200-560-000-013
Brand: Vibro-Meter
Lead Time: In stock
Description:Input/Output Card
Payment: T/T
Product Description
IOC4T 200-560-000-013 input/output card is a signal interface card for the MPC4 machinery protection card. It is mounted at the rear of the rack and is directly connected to the rack backplane via two connectors. The card has 4 dynamic signal inputs and 2 tachometer (speed) inputs, which can connect the raw dynamic and speed signals of the sensor to the MPC4, and the processed signals are returned to the terminal block of the IOC4T front panel. It can protect the input and output from electromagnetic interference and signal surges, and is suitable for machinery monitoring and protection in a variety of industrial scenarios.
Fuctions & Features
- Signal interface: The IOC4T 200-560-000-013 input/output card provides 4 dynamic signal inputs and 2 tachometer (speed) inputs for connecting sensors and signal conditioners. All input/output connections are made through 48 screw terminal connectors.
- Relay Functionality: The IOC4T 200-560-000-013 I/O card contains 4 local relays that can be configured via software to specific alarm signals (such as MPC4 fault or sensor status).
- Output Signals: The IOC4T 200-560-000-013 I/O card has 32 fully programmable open collector outputs that can be connected to either IRC4 or RLC16 relay cards via jumper select. Buffered raw sensor signals and analog output signals (voltage or current) are provided for the vibration channel.
- Signal Processing: The IOC4T 200-560-000-013 I/O card provides 4 on-board digital-to-analog converters (DACs) that output calibrated signals with a range of 0 to 10 V. 4 on-board voltage-to-current converters are provided with an output range of 4 to 20 mA (jumper selectable).
Specification
|
Category |
Sub - parameter |
Details |
|
Analog (DC) outputs |
Number of outputs |
4 per IOC4T card (one per MPC4 dynamic signal channel) |
|
Signal range |
Current output (4 to 20 mA) or voltage output (0 to 10 V), individually selectable by a jumper on the IOC4T for each output. Note: For current outputs, the analog output is actually driven in a slightly wider 2 to 23 mA range, proportional to the input signal. |
|
|
Accuracy |
≤±1.5% |
|
|
Linearity error |
≤±0.5% |
|
|
Admissible load on output |
>100 kΩ for voltage output. <325 Ω for current output. |
|
|
Relay characteristics |
Relay names |
RL1 to RL4 |
|
Type |
PE014005 |
|
|
Contact arrangement |
1 x NC or 1 x NO contact per relay (user configurable). The selected contacts are available on J2. |
|
|
Nominal rated voltage |
250 V<sub>AC</sub> |
|
|
Nominal rated current |
5 A<sub>AC</sub> |
|
|
Maximum breaking capacity (without contact protection) |
1250 VA |
