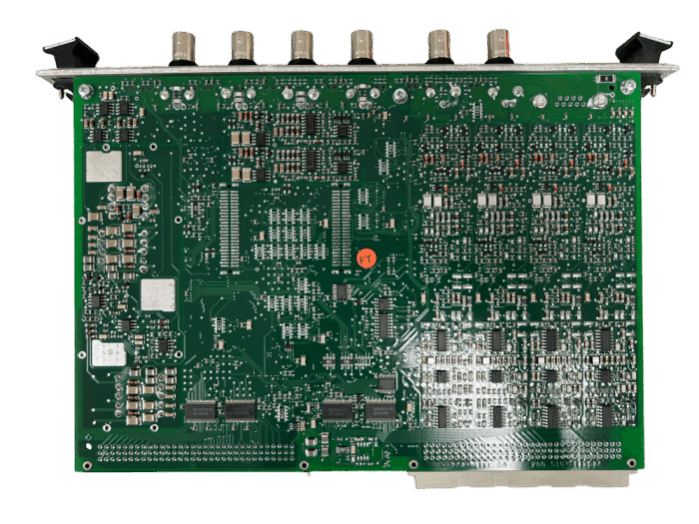

Vibro-Meter MPC4 200-510-076-114 Machinery Protection Card
Item Number: MPC4 200-510-076-114
Brand:Vibro-Meter
Lead Time: In stock
Description: Machinery Protection Card
Payment: T/T
Product Description
The MPC4 200-510-076-114 Machinery Protection Card is a universal four-channel monitoring card used to monitor the health of rotating machinery. The card receives raw signals from various sensors, performs digital signal processing, generates machine status parameters, and issues alarms when anomalies are detected.
Function & Features
- Dynamic Signal Input: The MPC4 200-510-076-114 can simultaneously process up to four dynamic signal inputs (such as vibration signals).
- Key Phase Signal Input: The MPC4 200-510-076-114 can simultaneously process up to two speed (key phase) signal inputs for phase analysis and order tracking.
- Alarm Output: Each alarm status corresponds to a digital output (on the accompanying IOC4T card), which can drive a relay card (such as the RLC16 or IRC4) to implement an external shutdown or alarm.
- Environmental Option: The MPC4 200-510-076-114 is available with optional conformal coating.
Specifications
|
Item |
Detail |
|
Model |
MPC4 200-510-076-114 |
|
VME bus |
A24/D16 slave mode |
|
MPC4 to IOC4T bus |
Similar to industry pack (IP) |
|
Current power supply |
6.16 mA ±5% in the range 1 to 23 V |
|
Over-current protection (on-board) |
11.0 A on +5 V line |
|
Height |
262 mm |
|
Width |
20mm |
|
Depth |
187mm |
|
Weight |
0.40 kg |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
