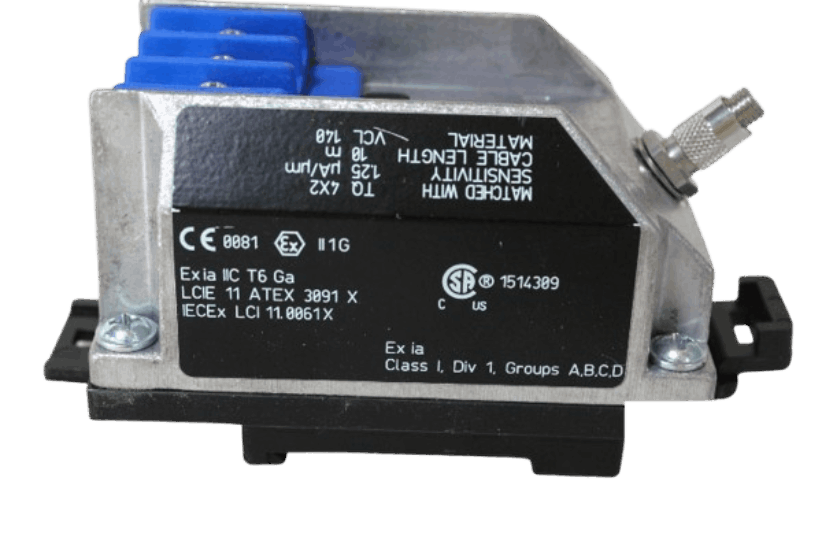

Vibro-Meter IQS453 204-453-000-021 Signal Conditioner
Item Number: IQS453 204-453-000-021
Brand:Vibro-Meter
Lead Time: In stock
Description: Signal Conditioner
Payment: T/T
Product Description
IQS453 204-453-000-021 is a signal conditioner designed to drive TQ 400 Series proximity sensors (eddy current sensors). This conditioner measures the gap (displacement) between a target object and the sensor probe and outputs a corresponding dynamic signal. As the gap distance changes, the conditioner outputs a dynamic signal proportional to the target's motion.
Function & Features
- High-Frequency Modulator/Demodulator: Provides excitation signals for eddy-current sensors, generating electromagnetic fields that measure displacement of target metal objects based on the eddy current principle.
- Power Supply: The IQS453 204-453-000-021 is powered by the associated processor module or rack power supply; no additional power supply is required.
- Specific Systems: The IQS453 204-453-000-021 must be used with TQ 400 series sensors to provide the drive signal and signal processing for these sensors.
Specifications
| Model Number | IQS453 204-453-000-021 |
|
Matching Transducer |
TQ 400 series proximity transducers (with combined extension cable if applicable) |
|
Frequency Response |
DC to 20 kHz (-3 dB) |
|
Interchangeability |
≤5% |
|
Voltage Output (3 wires) |
- Output impedance: 500Ω - Short - circuit current: 45 mA |
|
Current Output (2 wires) |
- Current at min. GAP: 15 mA - Current at max. GAP: 20 mA - Dynamic range: 5 mA |
|
Power Supply |
- Voltage: -20 V to -32 V - Current: 13 ± 1 mA (25 mA max.) |
FAQ
Q: What is the brand?
A: Spare
Q: What is the type?
A: Signal Conditioner
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
