Vibro-Meter CI185 VMD-185-020-AT-CA-S Acceleration Sensor
Item Number: CI185 VMD-185-020-AT-CA-S
Brand:Vibro-Meter
Lead Time: In stock
Description: Acceleration Sensor
Payment: T/T
Product Description

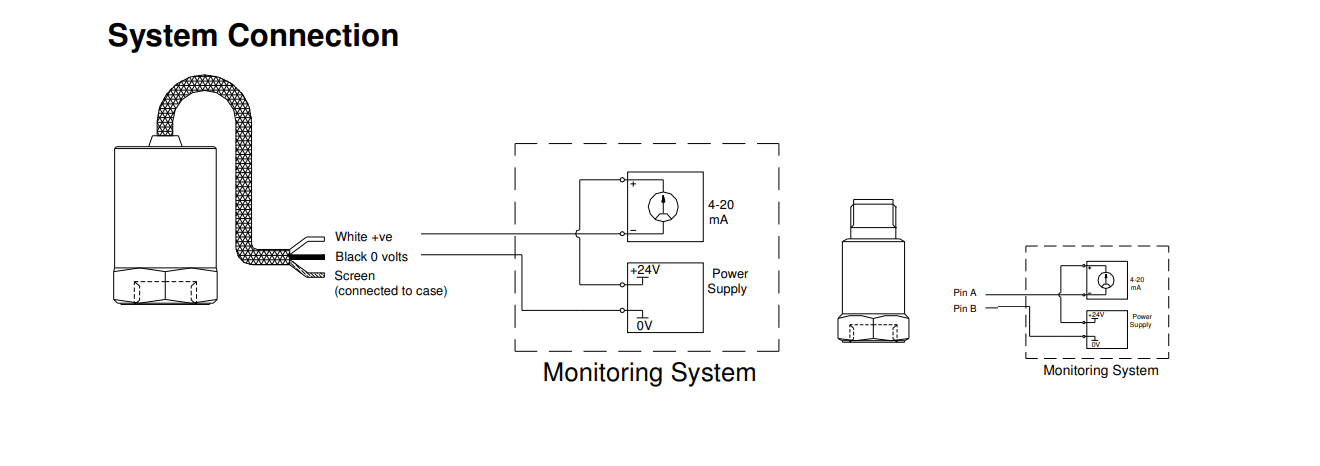

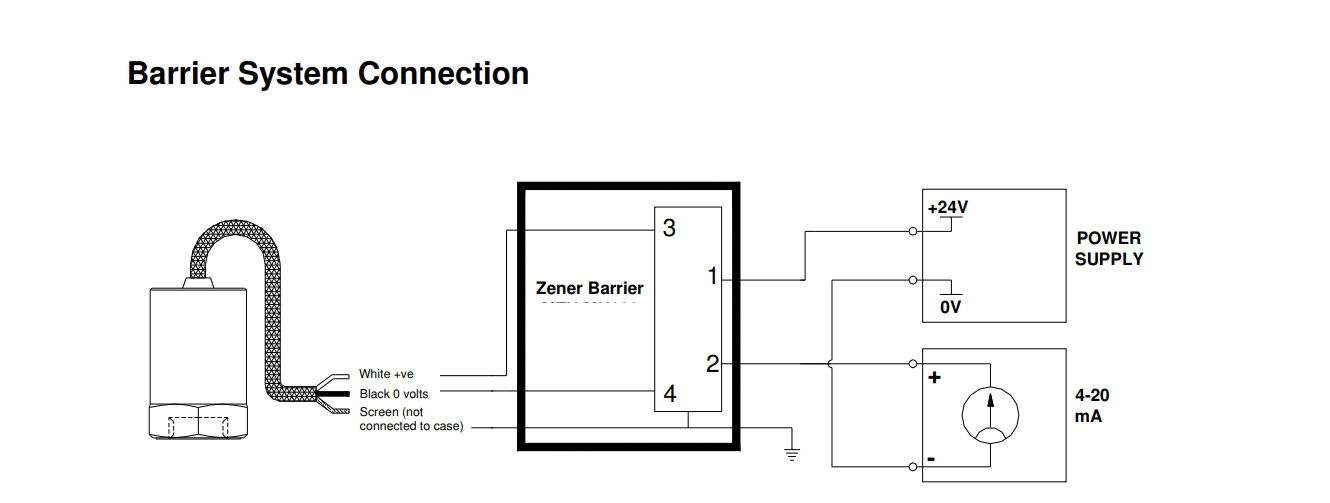

The CI185 VMD-185-020-AT-CA-S is a PLC-interfaced accelerometer. It is loop-powered and outputs a 4-20mA signal proportional to the velocity unit. The output signal is proportional to the effective vibration velocity (RMS) value (in mm/s). It can be used in equipment such as fans, blowers, compressors, and pumps. When used, refer to drawing ATX009 and match a safety barrier.
VMD-185-020-AT-CA-S Code Explanation:
020: Velocity range (e.g., 20 mm/s).
AT: Armored cable (top exit).
CA: 4–20 mA analog output.
S: Standard mounting connector (¼" UNF).
Function & Features
- Power Supply: The CI185 VMD-185-020-AT-CA-S is loop-powered with a supply voltage range of 12-32V DC.
- Mounting: The CI185 VMD-185-020-AT-CA-S uses a standard 1/4" UNF internal thread (with an M8 external adapter).
- Cable: The CI185 VMD-185-020-AT-CA-S comes with a 5-meter armored PTFE cable by default (extensible to 1000 meters with the EX version).
- Optional configurations for the CI185 VMD-185-020-AT-CA-S include side-exit cable, filters, custom ranges, or threading.
Specifications
|
Parameter |
Details |
|
Model Series |
CI185 |
|
Paet Number |
VMD-185-020-AT-CA-S |
|
Frequency Response |
2 Hz to 1 kHz ±10 % |
|
Dynamic Range |
50g peak |
|
Mounted Resonance |
5 kHz min |
|
Temperature Sensitivity |
0.08 %/ºC |
|
Transverse Sensitivity |
Less than 5% |
|
Mating Connector |
2 pin MS for CT version |
|
Case Material |
Stainless steel |
|
Weight |
150 gms (nominal) |
|
Mounting Torque |
8 Nm |
FAQ
Q: What is the brand?
A: Spares
Q: What is the type?
A:Acceleration Sensor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
