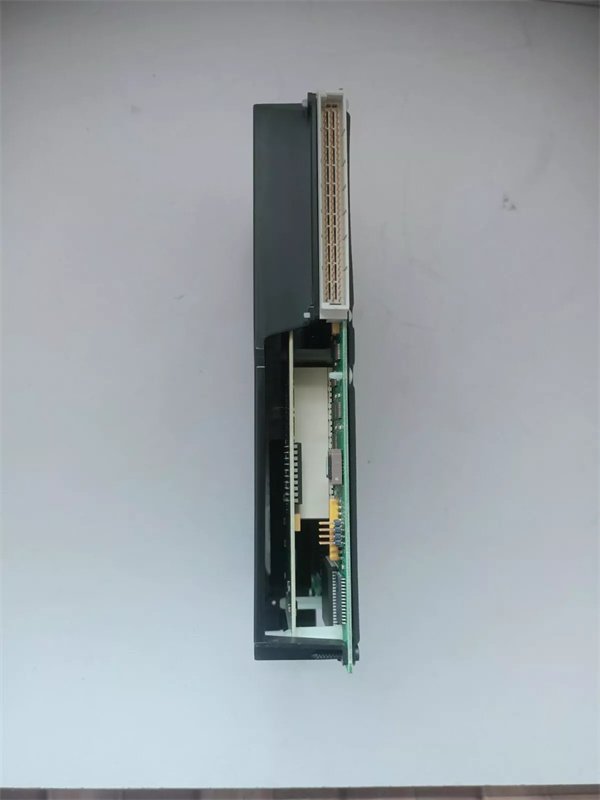

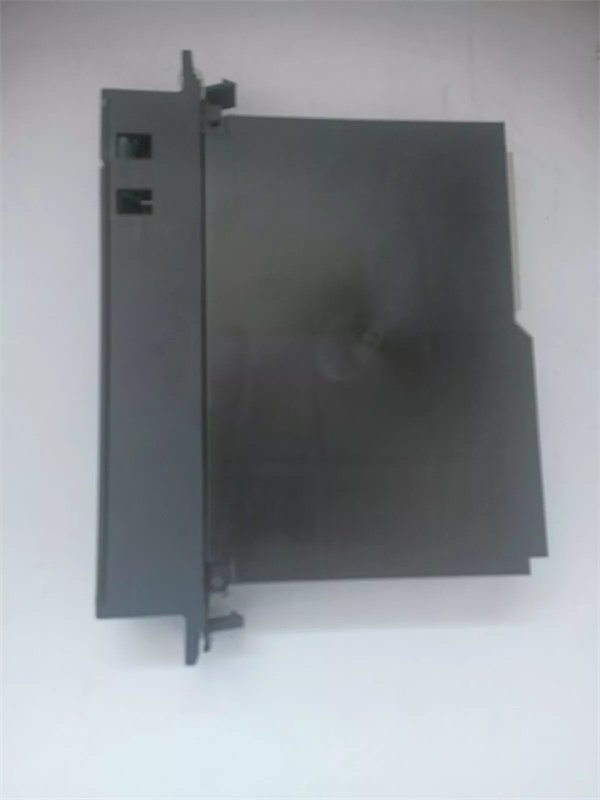

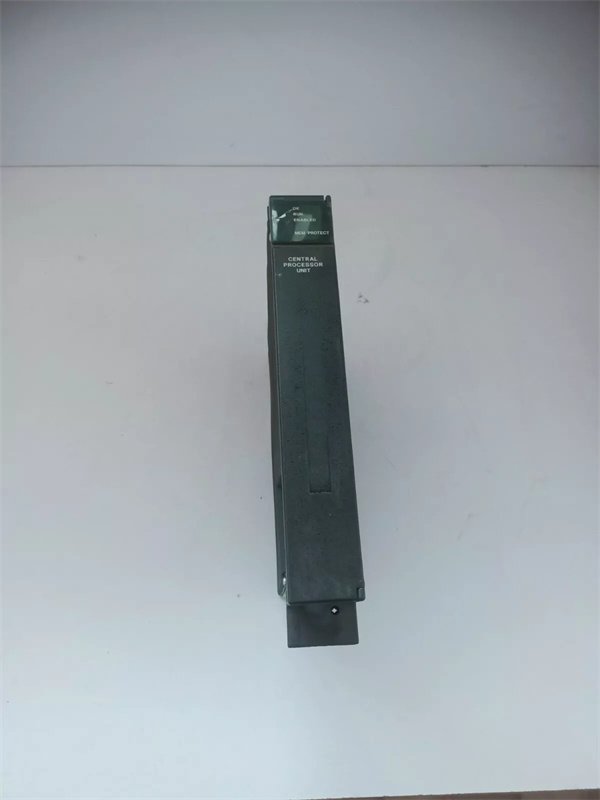

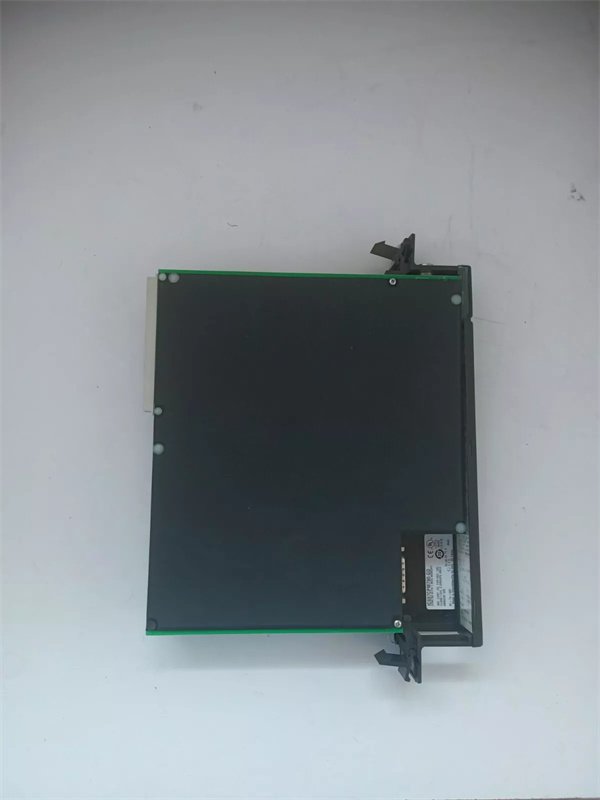

General Electric IC697CPU789 Central Processing Unit (CPU) Module

The GE IC697CPU789 is a flagship high-performance CPU module in GE’s Series 90-70 PLC platform, engineered to serve as the “brain” of large-scale, complex industrial automation systems. As the core control unit, it executes user-defined logic, processes real-time data from connected I/O modules, and coordinates communication with external devices—making it indispensable for applications requiring fast response times and high reliability.

With its 16 MB user program memory and 32 MB data memory (expandable via optional cards), the GE IC697CPU789 can handle intricate control sequences, such as those in automotive assembly lines or chemical processing plants. It natively supports all IEC 61131-3 programming languages, allowing engineers to choose the most efficient language for their application, while its built-in Ethernet port enables seamless integration with HMIs, SCADA systems, and enterprise software. Additionally, the GE IC697CPU789 works seamlessly with expansion modules like the GE IC697BEM741, supporting up to 8 remote racks to extend I/O capacity across large facilities—delivering the scalability needed for growing operations.

Detailed Parameter Table

Core Advantages and Technical Highlights

Ultra-fast processing performance: The GE IC697CPU789 delivers industry-leading processing speeds, with basic instructions executed in just 0.1 microseconds and floating-point instructions in 0.5 microseconds. This speed is critical for time-sensitive applications, such as high-speed packaging lines or power grid control, where even millisecond delays can cause production errors or safety risks. Compared to lower-tier Series 90-70 CPUs (e.g., GE IC697CPU771), the IC697CPU789 offers a 3x faster processing rate, enabling it to handle more complex logic and higher I/O counts without performance degradation.

Expansive memory and scalability: Equipped with 16 MB of user program memory and 32 MB of data memory, the GE IC697CPU789 can store large programs and process vast amounts of real-time data—eliminating the need for frequent memory upgrades. For applications requiring even more storage, optional memory cards (e.g., GE’s Series 90-70 memory modules) can expand data memory up to 128 MB. Additionally, the CPU supports up to 8 remote racks via expansion modules like the GE IC697BEM741, allowing users to distribute I/O across large facilities while maintaining centralized control—ideal for oil refineries, water treatment plants, or automotive factories with multiple production lines.

Dual communication interfaces for versatility: The GE IC697CPU789 features two built-in communication ports: an RS-232 port for programming and local configuration, and a 10/100 Base-TX Ethernet port supporting Modbus TCP/IP. The Ethernet port enables direct communication with HMIs (e.g., GE’s Proficy HMI/SCADA iFIX) for real-time monitoring, while also facilitating data transfer to enterprise resource planning (ERP) systems for production analytics. Unlike CPUs without built-in Ethernet, the GE IC697CPU789 eliminates the need for external communication modules, reducing system cost and complexity.

Robust fault tolerance and diagnostics: The GE IC697CPU789 is designed for maximum uptime, with built-in fault tolerance features including watchdog timers, memory error checking and correction (ECC), and redundant power supply support. Its LED indicators provide at-a-glance status updates: green for power, blue for “run” mode, amber for “stop” mode, and red for faults. For deeper troubleshooting, the CPU logs detailed error data (e.g., program syntax errors, communication failures) that can be accessed via GE’s Proficy Machine Edition software. This diagnostic capability allows maintenance teams to quickly identify and resolve issues, minimizing unplanned downtime—a critical advantage for mission-critical applications like nuclear power plants or pharmaceutical manufacturing.

Typical Application Scenarios

The GE IC697CPU789 is ideally suited for large-scale, complex industrial automation applications where speed, reliability, and scalability are paramount. In automotive manufacturing, for example, it serves as the central controller for entire assembly lines, managing up to 5,000 I/O points across 8 remote racks (connected via GE IC697BEM741 modules). The CPU executes logic to coordinate robotic arms, conveyor belts, and quality inspection systems, with its fast processing speed ensuring that each step in the assembly process is synchronized—reducing cycle times and improving product quality. Its built-in Ethernet port also enables real-time data transfer to the plant’s MES system, allowing managers to track production rates and identify bottlenecks.

In chemical processing plants, the GE IC697CPU789 controls batch processing sequences, where precise temperature, pressure, and flow rate control are essential for product consistency and safety. The CPU processes data from analog I/O modules (e.g., GE IC697MDL655) that monitor reactor conditions, executing complex PID loops to adjust valves and pumps in real time. Its fault tolerance features—such as ECC memory and watchdog timers—prevent system crashes during critical batch cycles, avoiding costly material waste and ensuring compliance with safety regulations (e.g., OSHA, EPA).

For power generation facilities, the GE IC697CPU789 manages the control of turbines, generators, and distribution systems. It communicates with SCADA systems via its Ethernet port to transmit data on power output, fuel consumption, and equipment health, while its ability to support 8 remote racks allows it to monitor and control distributed components (e.g., transformers, switchgear) across the plant. The CPU’s fast processing speed ensures that it can respond to grid fluctuations within milliseconds, maintaining stable power supply and preventing blackouts—making it a reliable choice for utility companies.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing the GE IC697CPU789, power off the Series 90-70 main rack and wear an anti-static wristband to prevent electrostatic damage. Ensure the main rack (e.g., GE IC697RACK20) has an available slot in the “CPU position” (typically the first slot in the rack) and that the rack is powered by a compatible supply (e.g., GE IC697PWR711). Gather tools including a screwdriver (to secure the module to the rack), a torque wrench (to tighten rack screws to 4.5 N·m), and a programming cable (for initial configuration). Verify the installation environment: temperatures should be between 0°C to 60°C, humidity between 5%-95% non-condensing, and the area should be free from direct sunlight, corrosive gases, or excessive dust—all of which can degrade CPU performance.

Maintenance suggestions: For daily maintenance of the GE IC697CPU789, inspect the LED indicators—steady green for power, blue for “run” mode, and no red fault light indicate normal operation. If a fault occurs, use Proficy Machine Edition to access error logs and identify the issue (e.g., memory corruption, communication failure). Clean the CPU’s backplane connector monthly with a dry, lint-free cloth to remove dust, which can cause intermittent connection issues. Every 6 months, back up the user program to an external memory card to prevent data loss in case of CPU failure. For firmware updates, use GE’s official software and ensure the new firmware is compatible with connected modules (e.g., GE IC697BEM741)—never update firmware during production hours. Keep a spare GE IC697CPU789 on hand for critical applications to minimize downtime if replacement is needed.
