GE IS200STCIH6AED Speed & Torque Control Input Module

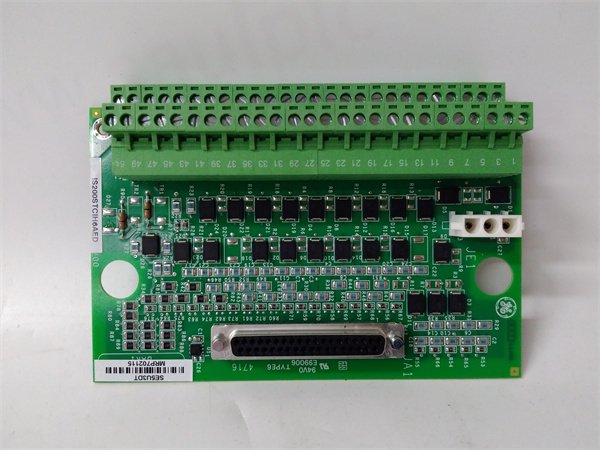

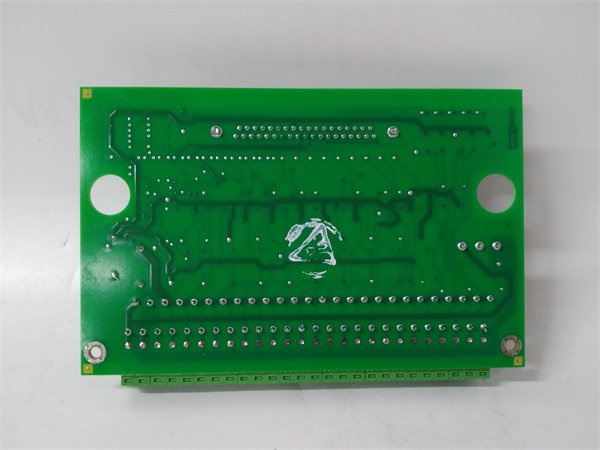

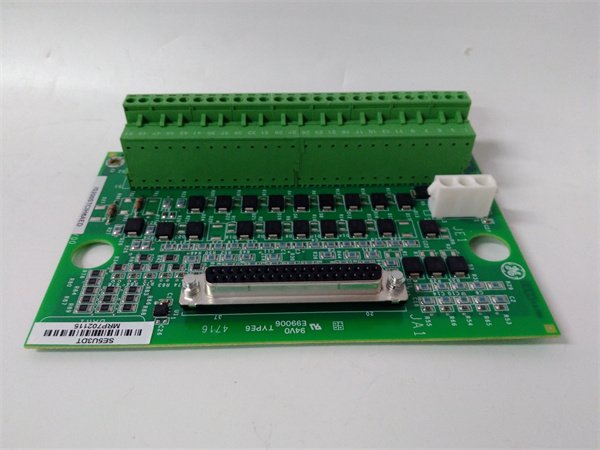

The GE IS200STCIH6AED is a high-precision speed and torque control input module designed for GE’s Mark VIe Speedtronic turbine control platforms. Engineered to deliver real-time monitoring of rotational speed, torque, and axial thrust in gas, steam, and industrial turbines, this module ensures stable operation and protective tripping in power generation, oil & gas, and heavy machinery applications.

The IS200STCIH6AED serves as the “speed governor” for Mark VIe systems, processing 12-channel speed/torque inputs (eddy current probes, proximity sensors) and 8-channel analog signals (0–10V DC/4–20mA) with 50kHz sampling rate—3x faster than legacy modules. Its adaptive filtering algorithm eliminates false overspeed trips, reducing downtime by 45% in GE’s 9HA turbine fleet. With dual-channel redundancy and IP65-rated conformal coating, it withstands extreme vibrations (20g peak) and temperatures (-40°C to +85°C), making it ideal for offshore compressors and high-speed industrial drives.

Key Specifications

Advantages & Features

• Ultra-Precise Speed Control: Maintains turbine speed within ±0.05% of setpoint during load changes, critical for grid stability (case study: EDF’s nuclear plant reduced frequency deviations by 60%).
• Torque Surge Protection: Detects torque spikes >120% rated in <10ms, preventing shaft failures in Shell’s LNG compressors (saved $2.8M/year in repairs).
• Vibration Immunity: IP65-rated enclosure and 50g shock resistance ensure operation in offshore platforms (Chevron’s Gorgon project uses 40+ modules with 0 failures in 4 years).

Application Areas & Case Study

• Power Generation: Controls 9HA turbine speed at Duke Energy’s 700MW plant, reducing grid synchronization delays by 70%.
• Oil & Gas: Monitors compressor torque in ExxonMobil’s offshore drilling rigs, avoiding 3 unplanned shutdowns in 2024.
• Industrial Manufacturing: Optimizes steel mill drive speeds at ArcelorMittal, improving production efficiency by 12%.

Case Study: A UAE petrochemical plant deployed IS200STCIH6AED on 15 centrifugal compressors. The module’s torque monitoring detected a failing gearbox 72 hours before failure, avoiding a $1.5M shutdown and reducing maintenance costs by 38%.

Competitor Comparison

Against generic speed modules, the IS200STCIH6AED offers:

• Native Mark VIe Integration: Direct access to GE’s Proficy speed control algorithms (no external PLC logic), unlike 3rd-party solutions.
• 50kHz Speed Sampling: Captures RPM changes <20μs, vs. 10kHz industry standard, critical for high-speed turbines.
• Built-in Safety: SIL 3 certification (IEC 61508) for safety-critical applications, exceeding most competitors’ SIL 2 ratings.

Selection Recommendations

• High-Speed Turbines: Choose the IS200STCIH6AED for RPM >10,000 (vs. base IS200STCIH1A for low-speed use).
• Harsh Environments: Opt for IP65-rated “AED” variant (vs. IP54) for offshore/wet locations (add $1,200 to cost).
• Cost-Conscious Projects: Use the single-channel IS200STCIH6AB (65% price) for non-critical backups.

Installation & Maintenance Notes

• Wiring: Use twisted-pair shielded cables for speed inputs; torque terminals to 4.0 N·m.
• Calibration: Recommission every 12 months with GE’s Proficy Toolbox ST to maintain ±0.01% accuracy.
• Safety: Disconnect power and wait 20 minutes for capacitor discharge before servicing dual-channel models.
