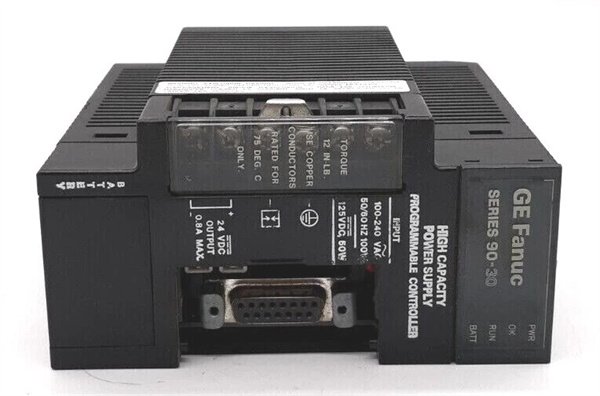

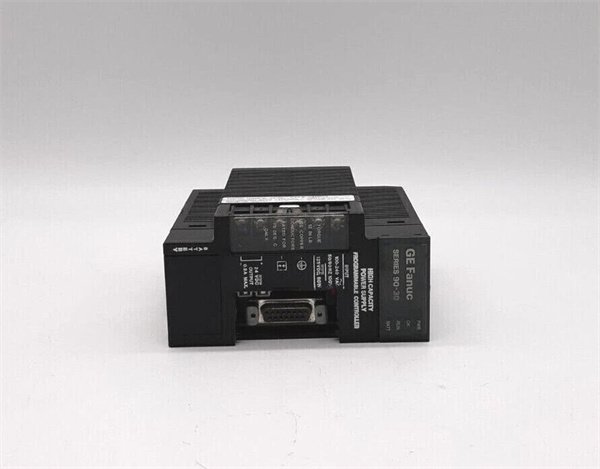

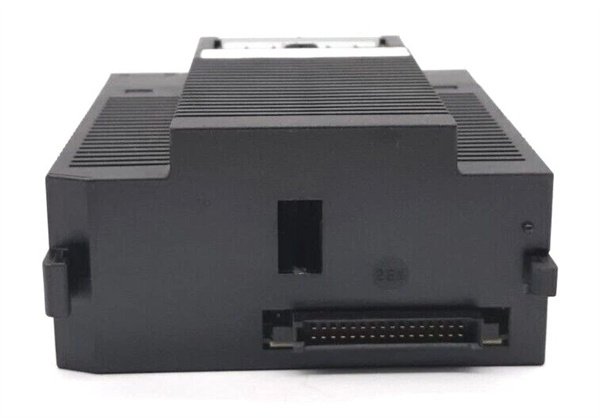

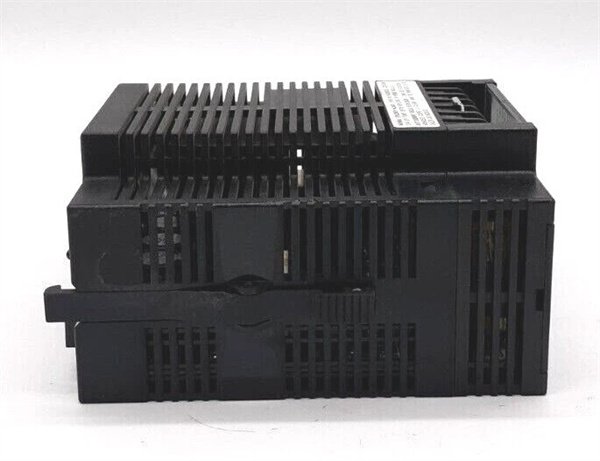

General Electric IC693PWR330F Industrial Power Supply Module

The GE IC693PWR330F is a critical power supply module in GE’s Series 90-30 PLC ecosystem, engineered to serve as the “energy backbone” for industrial automation systems. Unlike low-capacity power supplies, the GE IC693PWR330F delivers a robust 10 A continuous current at 5 V DC—enough to power multiple I/O modules (e.g., digital inputs, analog outputs) and a Series 90-30 CPU on a single baseplate.

Technical positioning for mid-to-large Series 90-30 deployments (e.g., manufacturing lines, utility control panels), the GE IC693PWR330F features a wide input voltage range (85–264 V AC) to handle voltage fluctuations common in industrial facilities. It converts unstable line power into regulated 5 V DC, ensuring consistent performance of connected modules—even during brownouts or voltage spikes. In automation architectures, the GE IC693PWR330F acts as a “power stabilizer,” preventing system crashes or data loss caused by power irregularities, making it indispensable for reliable 24/7 operations.

Detailed Parameter Table

Core Advantages and Technical Highlights

High-capacity power delivery: The GE IC693PWR330F’s 10 A continuous output supports up to 12 Series 90-30 I/O modules on a single baseplate (e.g., 8 digital input modules + 4 analog output modules). This eliminates the need for multiple power supplies, reducing control cabinet clutter and hardware costs. For example, a automotive component assembly line using a 16-slot IC693CHS316 baseplate can power all modules with one GE IC693PWR330F, simplifying wiring and maintenance.

Wide input voltage tolerance: With 85–264 V AC input range, the GE IC693PWR330F works seamlessly in global industrial environments—from 110 V AC (North America) to 230 V AC (Europe/Asia). It also handles voltage sags (down to 85 V AC) and surges (up to 264 V AC), ensuring uninterrupted power to Series 90-30 systems during grid instability. This is critical for remote facilities (e.g., rural water pumps) where line power is often inconsistent.

Comprehensive protection mechanisms: The GE IC693PWR330F includes multi-layer protection: overload protection trips at 120% load to avoid overheating, short-circuit protection shuts down output if a module wire is grounded, and over-temperature protection activates at 70°C to prevent component damage. These features safeguard expensive Series 90-30 modules (e.g., IC693CMM321-JJ Ethernet modules) from power-related failures, reducing replacement costs.

Redundancy capability: The GE IC693PWR330F supports N+1 redundancy when paired with a second GE IC693PWR330F on the same baseplate. If one unit fails, the other automatically takes over (≤10 ms switchover time), ensuring zero downtime for critical applications. For example, a wastewater treatment plant using redundant GE IC693PWR330F units can maintain pump control during power supply failures, avoiding untreated water discharges and regulatory penalties.

Typical Application Scenarios

In discrete manufacturing (e.g., electronics assembly), the GE IC693PWR330F powers a IC693CHS391 9-slot baseplate hosting a IC693CPU374 CPU, IC693CMM321-JJ Ethernet module, and 7 digital I/O modules. Its 10 A output ensures all modules receive stable power, even when multiple sensors/actuators are active simultaneously. The wide input range handles voltage fluctuations from nearby soldering equipment, preventing unexpected line shutdowns.

For utility control panels (e.g., electrical distribution substations), the GE IC693PWR330F is deployed in redundant pairs to power Series 90-30 modules monitoring circuit breakers and transformer temperatures. If one GE IC693PWR330F fails, the redundant unit maintains power, ensuring SCADA systems continue receiving data—critical for grid stability and preventing blackouts.

In food and beverage processing, the GE IC693PWR330F powers a IC693CHS308 8-slot baseplate with IC693ALG223 analog input modules (monitoring oven temperatures) and IC693DIA321 digital input modules (tracking conveyor status). Its over-temperature protection withstands the warm, humid environment of processing plants, while regulated output ensures temperature sensors provide accurate data for food safety compliance.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing GE IC693PWR330F, power off the Series 90-30 baseplate and verify input voltage matches the facility’s line power (85–264 V AC). Required tools include a torque screwdriver (0.5–1.0 N·m for baseplate screws), wire strippers (for 18–14 AWG AC wires), and a multimeter (to test input voltage). Align the GE IC693PWR330F with the baseplate’s power supply slot (labeled “PWR”), push until it latches, and secure with front-panel screws. Connect AC input wires to the terminal block (L = line, N = neutral, GND = ground) and ensure tight connections to avoid arcing.

Maintenance suggestions: Daily maintenance for GE IC693PWR330F involves checking the “PWR OK” LED (steady green = normal, red = fault). Every 3 months, use compressed air (≤50 psi) to clean dust from the module’s vents—accumulated dust can reduce efficiency and cause overheating. If the red fault LED activates, use a multimeter to check input voltage (ensure it’s within 85–264 V AC) and test for short circuits in connected modules. When replacing GE IC693PWR330F, ensure the new unit has the same firmware version (printed on the label) to maintain compatibility with the baseplate.
