General Electric 531X305NTBAPG1 Terminal Board

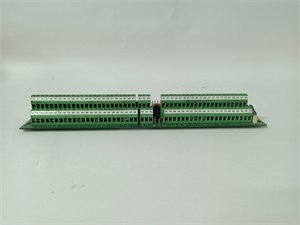

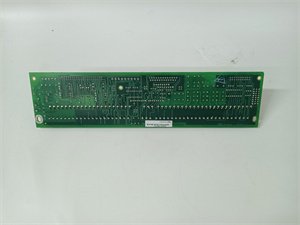

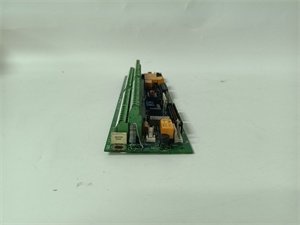

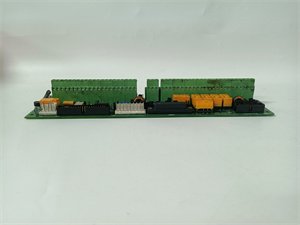

The GE 531X305NTBAPG1 is a specialized terminal board developed by General Electric, designed with a focus on delivering seamless connectivity and control within industrial systems. As part of the 531X series, this board is engineered to play a pivotal role in drive and exciter cabinets. It serves as a crucial interface point, enabling the connection and management of a wide array of signals and power sources.

At its core, the GE 531X305NTBAPG1 offers diverse input/output capabilities. It can handle digital control signals, relay outputs, and low – level analog signals with ease. This versatility makes it an ideal choice for industrial control systems where different types of signals need to be processed and transmitted accurately. By integrating the 531X305NTBAPG1 into an automation setup, users can enhance the overall functionality and reliability of their systems, ensuring smooth operation in various industrial applications.

Technical Specifications

Versatile Connectivity

The GE 531X305NTBAPG1 offers a wide range of input/output interfaces. It can interface with digital control inputs, which are crucial for receiving commands from control systems. The relay outputs allow for the control of external devices, such as motors or solenoids. The low – level analog I/O capabilities enable it to handle sensitive analog signals, like those from sensors. Additionally, the encoder interface, along with RS – 232C and RS – 422 serial interfaces, further expand its connectivity options, making it suitable for a diverse range of industrial devices.

Power Management

This terminal board provides both regulated and unregulated power sources. The regulated 5 VDC and 15 VDC outputs, each with a 300 mA current capacity, are useful for powering sensitive components that require stable voltage. The unregulated 24 VDC (500 mA capacity) and 120 VAC (0.5 A capacity) outputs can be used for devices that are less sensitive to voltage fluctuations. This power management feature ensures compatibility with a variety of industrial equipment.

Customizable Settings

Users can configure several board settings to meet specific load requirements. For example, the 5V and 15V encoders can be adjusted using the jumpers on the board. The board also features a combination of seven form A and form C relay outputs, with contacts rated at 120 VAC. Moreover, it contains four potentiometers for scaling low – level analog I/O, allowing for precise calibration according to the application needs.

Industrial Drive Systems

In industrial drive systems, the GE 531X305NTBAPG1 is used to interface between the drive control board and external devices. It can manage the control signals to the drive, ensuring smooth operation. For example, in a large – scale manufacturing plant, the terminal board can connect to motors, sensors, and other control elements in the drive system. This helps in accurately controlling the speed and torque of motors, which is crucial for maintaining production efficiency.

Exciter Cabinets

Within exciter cabinets, the 531X305NTBAPG1 plays a vital role. It can handle the power distribution and signal processing required for the exciter system. In power generation applications, such as in a power plant, the exciter cabinet controls the field current of the generator. The terminal board ensures that the control signals are accurately transmitted and that the power is supplied correctly, contributing to the stable operation of the generator.

Automation Control Panels

Automation control panels rely on components like the GE 531X305NTBAPG1 to manage the complex network of signals and power. In a factory’s automated production line, the control panel uses this terminal board to interface with various sensors, actuators, and controllers. It enables real – time monitoring and control, allowing for quick adjustments to the production process in case of any issues.

Installation and Maintenance

Pre – installation preparation: Before installing the GE 531X305NTBAPG1, carefully review the installation manual provided by GE. Ensure that the drive or exciter cabinet where it will be installed is powered off and properly grounded. Check the physical condition of the board for any signs of damage during transit. Verify that the input/output connections on the board match the requirements of the devices it will be connected to. Make sure to handle the board with anti – static precautions to avoid electrostatic discharge that could damage the sensitive components.

Maintenance recommendations: Regularly inspect the GE 531X305NTBAPG1 for any loose connections. Over time, vibrations in industrial environments can cause connectors to become loose. Check the power outputs periodically to ensure they are within the specified voltage and current ranges. Clean the board gently to remove dust and debris, as these can accumulate and affect the performance. If any issues arise, such as signal malfunctions or power irregularities, refer to the troubleshooting guide in the product manual. Consider scheduling preventive maintenance checks at regular intervals to ensure long – term reliable operation.

Product Guarantee

GE stands firmly behind the quality of the GE 531X305NTBAPG1 terminal board. The product undergoes rigorous quality control procedures during manufacturing to meet high – industry standards. GE offers a comprehensive warranty for the 531X305NTBAPG1, covering any defects in materials and workmanship. Their global network of technical support teams is available to assist customers. Whether it’s answering installation – related questions, helping with complex troubleshooting, or providing advice on maintenance, GE’s experts are dedicated to ensuring the long – term reliable operation of the terminal board. This reflects GE’s confidence in the product and its commitment to customer satisfaction.
