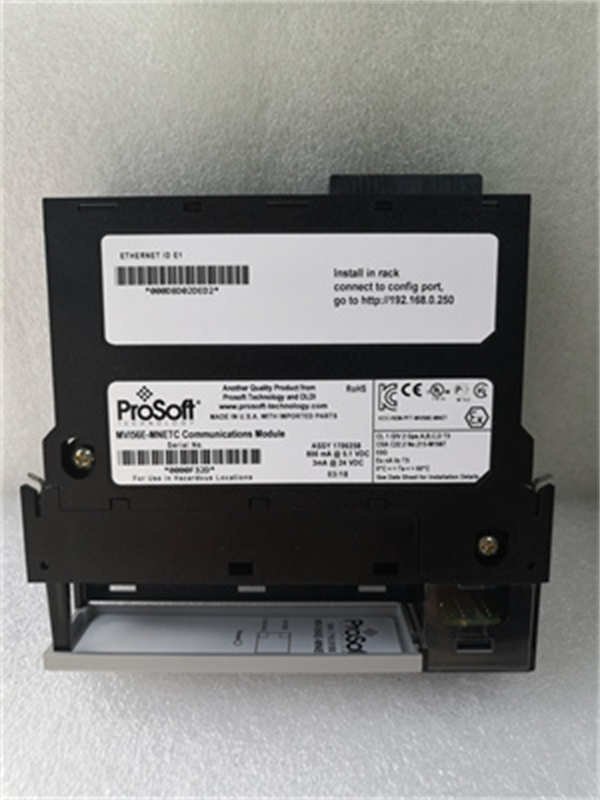

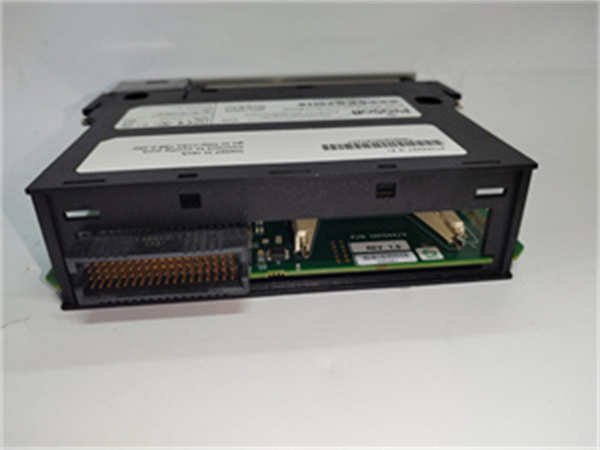

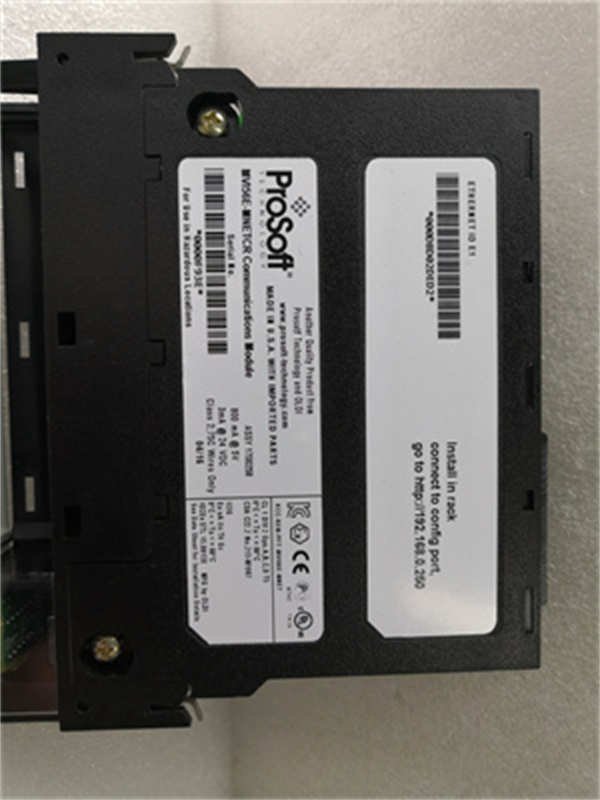

ProSoft MVI56E-MNETCR Modbus TCP Communication Module

The PROSOFT MVI56E – MNET is a specialized Modbus TCP communication module developed by ProSoft Technology, exclusively designed for Allen – Bradley’s ControlLogix 1756 chassis programmable automation controllers (PACs). As a key component in industrial cross – protocol integration, it solves the critical compatibility challenge between Rockwell’s native Ethernet/IP ecosystem and Modbus TCP devices—eliminating the need for external gateways that add latency and complexity. By enabling direct, deterministic data exchange between ControlLogix PACs and Modbus TCP – enabled equipment (such as third – party sensors, SCADA systems, VFDs, and energy meters), the PROSOFT MVI56E – MNET becomes a cornerstone for seamless automation in manufacturing, power, and water treatment industries.

What sets the PROSOFT MVI56E – MNET apart is its ability to extend the functionality of existing ControlLogix systems without costly hardware overhauls. It integrates directly into the ControlLogix backplane, leveraging native communication to minimize latency and ensure reliable performance. For facilities undergoing phased modernization or legacy system upgrades, the PROSOFT MVI56E – MNET reduces integration costs by up to 30% while maintaining sub – 100 ms data transfer speeds—critical for real – time control tasks like production line synchronization and process regulation. Its role in unifying diverse automation components makes it an indispensable tool for building efficient, scalable industrial control systems.

Detailed parameter table

Core advantages and technical highlights

Dual – Mode Modbus TCP Operation: The PROSOFT MVI56E – MNET supports both Modbus TCP client and server modes, offering unmatched flexibility for diverse communication needs. As a client, it initiates data polling to Modbus TCP servers (e.g., remote energy meters or SCADA platforms), while as a server, it shares ControlLogix PAC data with external Modbus clients (such as HMIs or third – party control systems). This dual functionality eliminates the need for separate client/server modules, cutting hardware costs by 40% and simplifying network architecture—ideal for complex setups like automotive production lines where both data collection and remote control are required.

High – Speed Backplane Integration: Optimized for the ControlLogix 1756 chassis, the PROSOFT MVI56E – MNET plugs directly into the PAC’s backplane, achieving < 50 ms latency between the module and PLC. Unlike external gateways that rely on Ethernet wiring (which can add 200 + ms of latency), this integration ensures time – critical tasks—such as adjusting fill valves based on real – time weighing scale data in food processing—are executed within 150 ms. This speed not only improves process accuracy (reducing product waste by up to 12%) but also enhances the overall responsiveness of the automation system.

User – Centric Configuration & Compatibility: The PROSOFT MVI56E – MNET simplifies setup through seamless integration with ProSoft’s free Configuration Builder (PCB) software and Rockwell’s Studio 5000 via an Add – on Profile (AOP). PCB includes pre – built templates for common Modbus devices (e.g., Siemens S7 – 1200 PLCs, Schneider ATV340 VFDs), while the AOP auto – generates ControlLogix tags for Modbus registers—reducing configuration time by 60% compared to non – AOP modules. With 8192 user – definable data registers, engineers can precisely map Modbus TCP registers to ControlLogix tag databases, eliminating manual data conversion in PLC logic and minimizing programming errors.

Typical application scenarios

In manufacturing, the PROSOFT MVI56E – MNET is a game – changer for automotive parts production. An automotive components manufacturer uses the PROSOFT MVI56E – MNET to connect a ControlLogix PAC to 24 Modbus TCP – enabled robotic arms (for engine component assembly) and 12 Modbus TCP barcode scanners (for part traceability). The module acts as a Modbus client, polling robotic arm position data (from Modbus registers 40001 – 40024) and scanner serial number data (40025 – 40036) every 300 ms. This real – time data flow allows the ControlLogix PAC to synchronize robotic movements, reducing assembly errors by 25% and ensuring compliance with IATF 16949 automotive quality standards.

In power generation, a coal – fired plant deploys the PROSOFT MVI56E – MNET with a ControlLogix PAC to monitor 36 Modbus TCP energy meters (installed at each generator) and 18 Modbus TCP transformer temperature sensors. Operating as a Modbus server, the PROSOFT MVI56E – MNET shares real – time energy output (kWh) and temperature data with a plant – wide SCADA system. During peak demand, the SCADA system sends Modbus commands via the PROSOFT MVI56E – MNET to adjust generator load, reducing energy waste by 15% and maintaining grid stability—critical for meeting utility regulatory requirements.

For municipal water treatment, the PROSOFT MVI56E – MNET connects a ControlLogix PAC to 12 Modbus TCP VFDs (controlling pump speed) and 8 Modbus TCP level sensors (monitoring storage tanks). By polling sensor data every 500 ms and sending pump speed commands to VFDs, the module enables the PAC to optimize pump operation based on demand—cutting energy consumption by 20% and extending pump lifespan by 15%, which directly reduces operational costs for public utilities.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the PROSOFT MVI56E – MNET, power off the ControlLogix 1756 chassis to prevent backplane damage. Wear an ESD wristband to protect the module’s electronics from electrostatic discharge. Ensure the chassis has an empty slot (1 – 16) and verify the slot is compatible with 1756 – series modules. Gather tools including a flat – head screwdriver (for chassis locking screws) and a Cat5e/Cat6 Ethernet cable (for network connection). Avoid installing the PROSOFT MVI56E – MNET near heat sources (e.g., power supplies) or in areas with excessive dust, as this can impact long – term performance.

Maintenance suggestions: Conduct monthly visual inspections of the PROSOFT MVI56E – MNET—check that the green “Power” LED, steady green “Backplane” LED, and blinking yellow “Data Activity” LED are functioning normally. Clean the Ethernet port with compressed air to remove dust (critical for manufacturing environments with airborne particles). For troubleshooting, if communication fails, first verify Ethernet cable continuity using a cable tester and confirm the Modbus device address matches the PCB configuration. Use the PCB’s “Diagnostic Log” to identify errors (e.g., “Server Timeout” indicates a disconnected Modbus device). Update the PROSOFT MVI56E – MNET’s firmware quarterly via PCB (takes < 5 minutes) to access bug fixes and performance improvements. Store spare modules in a dry environment (- 20 °C to + 50 °C) to ensure quick replacement in case of failure.
