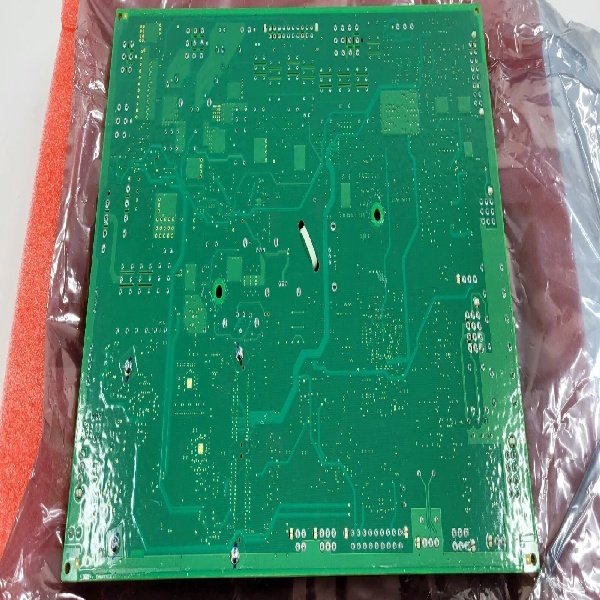

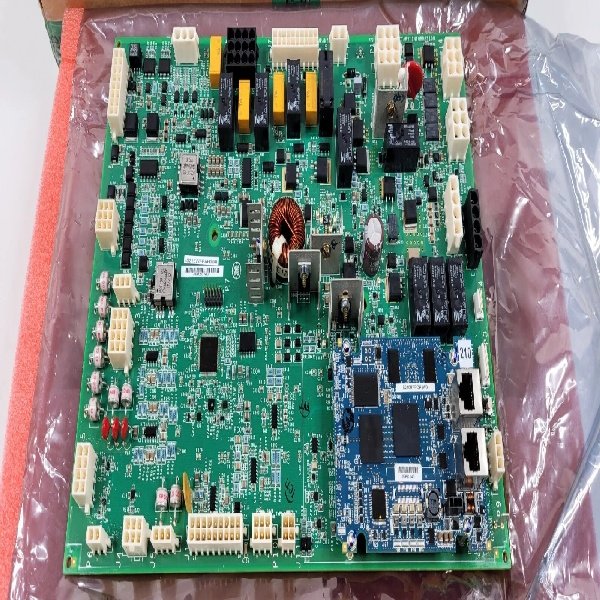

GE IS215PMVPH1A Mark VIe Pressure Measurement & Valve Control Module

The IS215PMVPH1A is a dedicated pressure measurement and valve control module developed by GE, exclusively engineered for the Mark VIe turbine control system. As a core component in turbine fuel and steam control loops, this module integrates high-precision pressure signal acquisition with proportional-integral-derivative (PID) valve control—enabling closed-loop regulation of critical parameters like fuel pressure, steam inlet pressure, and compressor discharge pressure. Unlike separate pressure transducers and valve controllers, it synchronizes measurement and control within a single unit, minimizing latency and ensuring consistent performance in power generation, oil & gas, and industrial turbine applications.

What distinguishes IS215PMVPH1A from generic control modules is its turbine-specific calibration and seamless Mark VIe integration. It features a 24-bit ADC for pressure measurement (delivering ±0.02% FS accuracy) and built-in PID logic optimized for fast-acting turbine valves—reducing pressure fluctuations by up to 40% compared to conventional systems. The module supports both analog (4-20 mA) and digital (HART) pressure sensors, with configurable valve output signals (4-20 mA or 0-10 VDC) to match different actuator types. Currently available as off-the-shelf stock with 3-5 days delivery, it retrofits easily into existing Mark VIe systems without requiring custom programming, making it ideal for both new installations and control loop upgrades.

Technical Specifications

High-Precision Pressure Measurement: Equipped with a 24-bit ADC, IS215PMVPH1A delivers ±0.02% FS accuracy across its 0-10000 psi range—outperforming generic modules (±0.1% FS). It supports both analog and HART-enabled pressure sensors, with built-in sensor drift compensation for long-term stability. For a 300 MW gas turbine, this ensures fuel pressure measurements are consistent within 0.1 psi, enabling precise fuel flow control and reducing emissions by up to 3%.

Turbine-Optimized PID Control: The module’s PID logic is pre-calibrated for turbine valves (e.g., fuel control valves, steam stop valves), with anti-windup and rate-limiting features to prevent valve overshoot. Unlike generic PID controllers, it responds to pressure changes in 50 ms—critical for load transients. A 150 MW steam turbine using this module reduced pressure fluctuations during load changes from ±5% to ±1.5%, improving steam quality and extending turbine life.

Seamless Mark VIe Integration: Connecting directly to the Mark VIe COREBUS without gateways, it shares pressure data and valve status with the main control system in real time. Its parameters (setpoints, PID gains) are configurable via GE Proficy software, and it supports hot-swapping for maintenance without system shutdown. A combined-cycle plant retrofitting from legacy controllers reduced integration time by 60% compared to third-party modules.

Safety & Reliability (SIL 2 Certified): Meeting IEC 61508 SIL 2 standards, IS215PMVPH1A includes dual-channel pressure monitoring and automatic valve fail-safe modes (e.g., close on power loss). For offshore gas turbines, this provides an extra layer of safety—detecting high fuel pressure and closing the valve within 100 ms to prevent over-pressurization and potential explosions.

Gas Turbine Fuel Control: A 200 MW gas turbine plant in Texas replaced legacy pressure controllers with IS215PMVPH1A to regulate natural gas supply pressure. The module’s precise measurement (±0.05 psi) and fast PID response reduced fuel pressure fluctuations by 70%, cutting NOx emissions by 4% and improving fuel efficiency by 1.2%—saving $150,000 annually in fuel costs.

Steam Turbine Inlet Pressure Regulation: A 400 MW coal-fired power plant in Germany deployed IS215PMVPH1A to control steam inlet pressure for its steam turbine. The module’s SIL 2 certification met safety requirements, while its drift compensation maintained accuracy over 12 months without recalibration. During load changes, steam pressure deviations were reduced from ±3 bar to ±0.5 bar, extending boiler tube life by 15%.

Offshore Compressor Pressure Control: A North Sea offshore platform used IS215PMVPH1A to regulate discharge pressure of a gas compressor driven by a 50 MW turbine. The module’s HART communication enabled remote sensor diagnostics, while its fail-safe valve control prevented over-pressurization during a sensor fault. This eliminated 3 unplanned shutdowns annually, saving $800,000 in production losses.

Pre-Installation Preparation

Verify Mark VIe firmware ≥v9.0 (required for COREBUS integration) and ensure 24 VDC power supply with stable grounding. Confirm pressure sensor compatibility (analog/HART) and valve actuator signal type (4-20 mA/0-10 VDC). Prepare tools: anti-static wristband, torque screwdriver (0.5-1.0 N·m), precision multimeter, and GE Proficy software (v8.5+).

Installation Steps

Mount IS215PMVPH1A in the 19-inch control rack, securing with front screws (torque to 0.8 N·m).

Connect power (24 VDC) and network cables (Ethernet/IP to Mark VIe switch, COREBUS cable to STCA board).

Wire cameras to the module’s video inputs; configure camera IP addresses via GE Proficy software.

Set up data tags (e.g., RPM, vibration) for synchronization and define trigger thresholds (e.g., vibration > 5 mm/s).

Calibrate pressure inputs using a precision test pump; set PID gains and valve output limits via Proficy software.

Maintenance Recommendations

Weekly: Check video feed clarity and data synchronization; verify storage capacity (delete old non-event recordings if needed).

Monthly: Test pressure setpoint tracking and valve response; verify alarm logic (high/low pressure) triggers correctly.

Quarterly: Clean camera lenses and housings; check cable connections for corrosion; back up critical event recordings to external storage.

Troubleshooting: If pressure measurements drift, calibrate inputs first; for valve overshoot, adjust PID gain parameters via Proficy software.
