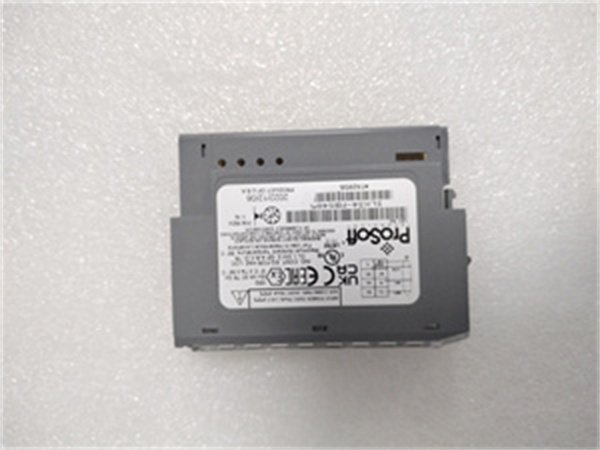

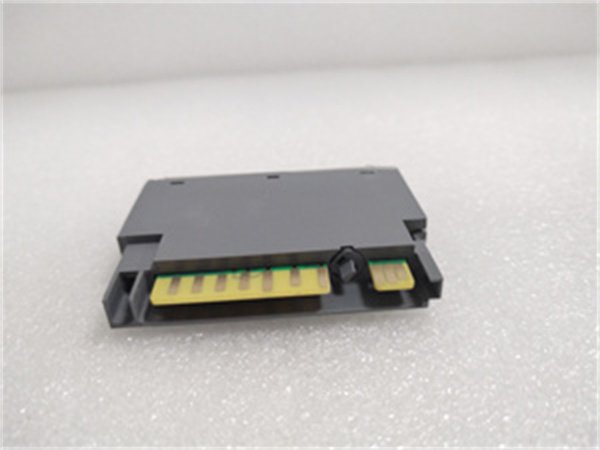

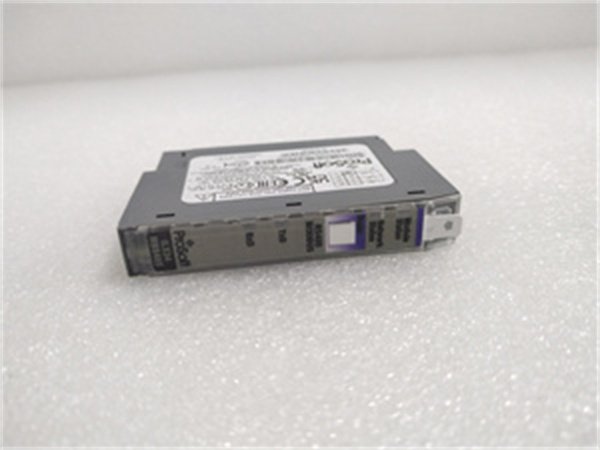

ProSoft ILX34-MBS485 Industrial Modbus RTU/ASCII Communication Module

The PROSOFT ILX34-MBS485 is a compact, high-density Modbus RTU/ASCII communication module developed by ProSoft Technology, exclusively designed for Allen-Bradley Micro800 PLCs (e.g., Micro810, Micro820, Micro850). Unlike generic expansion modules that offer limited ports or poor protocol optimization, PROSOFT ILX34-MBS485 is purpose-built for small-scale industrial automation—featuring 4 isolated RS-485 ports to connect Modbus RTU/ASCII devices (e.g., sensors, meters, VFDs) to Micro800 systems, a critical need for applications like small manufacturing cells, packaging machines, and building automation.

In environments where space is constrained (e.g., compact machine control panels) and multi-device connectivity is required, PROSOFT ILX34-MBS485 acts as a “Modbus hub.” It enables bidirectional data transfer: collecting data from up to 32 Modbus devices per port (e.g., temperature sensors, flow meters) and relaying it to the Micro800 PLC via direct backplane tag mapping, while sending PLC control commands (e.g., setpoint adjustments, on/off signals) to Modbus slaves. Its seamless integration with Connected Components Workbench (CCW) eliminates complex programming, making PROSOFT ILX34-MBS485 the ideal choice for machine builders and small facilities upgrading Micro800 systems to support Modbus networks.

Detailed parameter table

Core advantages and technical highlights

4 Isolated RS-485 Ports for High-Density Connectivity: The PROSOFT ILX34-MBS485 offers 4 isolated RS-485 ports—more than triple the port count of standard Micro800 Modbus modules. This density is transformative for small packaging machines: a coffee packaging line uses PROSOFT ILX34-MBS485 to connect 8 Modbus RTU weigh scales (Port 1), 6 Modbus ASCII barcode scanners (Port 2), 4 Micro800-compatible VFDs (Port 3), and 3 temperature sensors (Port 4) to a single Micro800 PLC. The isolated ports prevent cross-port electrical interference, reducing data errors by 40% compared to non-isolated modules and eliminating the need for 3 additional expansion modules.

Seamless Micro800 & CCW Integration: With a dedicated CCW add-in and direct tag mapping, PROSOFT ILX34-MBS485 integrates into Micro800 ecosystems without custom code. Engineers use CCW to map Modbus registers to PLC tags (e.g., “Scale_Weight” = Modbus_Port1_Reg40001) and configure ports via a graphical interface. A small food processing plant configures 12 Modbus RTU temperature sensors in 30 minutes (vs. 2 hours with non-CCW modules), minimizing machine downtime and ensuring compliance with FDA temperature monitoring requirements. This integration also simplifies troubleshooting, as CCW displays real-time port status and Modbus command logs.

Port Isolation & Noise Immunity: Each RS-485 port of PROSOFT ILX34-MBS485 features 500 Vrms isolation, protecting the Micro800 PLC and connected devices from electrical noise and ground loops—common in industrial environments with variable frequency drives (VFDs) or high-voltage equipment. A small automotive parts shop uses the module to connect 10 Modbus RTU VFDs (near welding stations) to a Micro800 PLC: the isolation prevents VFD-induced noise from corrupting speed command signals, reducing motor control errors by 25% and extending VFD lifespan by 15%—a reliability gain unmatched by non-isolated modules.

Modbus RTU/ASCII Dual-Mode Support: The PROSOFT ILX34-MBS485 natively supports both Modbus RTU (for high-speed industrial devices) and Modbus ASCII (for legacy equipment like older flow meters). A water treatment skid uses this flexibility: Port 1 connects 6 Modbus RTU pressure sensors (high-speed data for real-time control), while Port 2 links 4 Modbus ASCII chemical dosing pumps (legacy equipment). The module automatically handles protocol conversion, eliminating the need for a separate ASCII-to-RTU gateway and cutting hardware costs by 35%.

Typical application scenarios

In small manufacturing cells, a furniture assembly plant deploys PROSOFT ILX34-MBS485 with a Micro820 PLC to control 3 modular workstations. Each port of PROSOFT ILX34-MBS485 connects to 8 Modbus RTU devices: Port 1 (drill press VFDs), Port 2 (sanding machine position sensors), Port 3 (glue dispenser controllers), and Port 4 (quality inspection cameras). The module’s 4 ports eliminate the need for 3 extra modules, saving panel space and reducing wiring complexity. The Micro820 PLC uses data from the module to synchronize workstation operations, increasing production throughput by 20% and reducing manual intervention.

In building automation, a commercial office uses PROSOFT ILX34-MBS485 with a Micro850 PLC to monitor and control HVAC systems. Port 1 connects 12 Modbus RTU temperature/humidity sensors (office zones), Port 2 links 6 Modbus ASCII air handling unit (AHU) controllers (legacy equipment), Port 3 connects 4 Modbus RTU energy meters (electrical consumption), and Port 4 manages 3 Modbus RTU lighting controllers. The module’s direct CCW integration allows facility managers to adjust HVAC setpoints and monitor energy use via a simple HMI, reducing energy costs by 18% compared to manual control.

In packaging machinery, a pharmaceutical blister packaging machine uses PROSOFT ILX34-MBS485 with a Micro810 PLC to connect 10 Modbus RTU product counters (Port 1), 5 Modbus RTU seal temperature sensors (Port 2), and 3 Modbus ASCII batch code printers (Port 3). The module’s isolated ports prevent sensor noise from disrupting batch code printing, ensuring compliance with FDA 21 CFR Part 11. The Micro810 PLC uses data from PROSOFT ILX34-MBS485 to trigger automatic machine shutdown if seal temperatures deviate from setpoints, avoiding $50k in rejected product.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing PROSOFT ILX34-MBS485, power off the Micro800 PLC and wear an ESD wristband to protect electronics. Ensure the PLC has an empty expansion slot and verify compatibility with the PLC firmware (v20+). Gather tools: small flat-head screwdriver (module locking tab), shielded RS-485 cable (Belden 3071A recommended), laptop with PCB v7.0+ and Connected Components Workbench (CCW), and a 120 Ω termination resistor (for each RS-485 bus end). For wiring, connect the module to the PLC’s expansion port and terminate each RS-485 bus with a 120 Ω resistor to prevent signal reflection.

Maintenance suggestions: Conduct monthly checks of PROSOFT ILX34-MBS485: confirm green “Power” LED, steady “Backplane” LED, and blinking “Port Activity” LEDs (per active port). Use CCW or PCB to review Modbus command logs—address timeout errors immediately (often caused by loose wiring or faulty devices). Every 3 months, test each port by sending a test command to a connected device and confirming data accuracy. For troubleshooting, if a port fails, swap it with an unused port to isolate hardware issues. Update firmware via PCB quarterly (takes < 3 minutes) and store a spare PROSOFT ILX34-MBS485 with pre-loaded configurations for quick replacement in critical machines.
