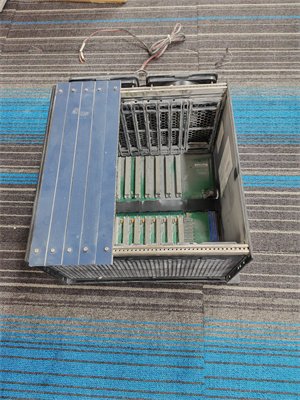

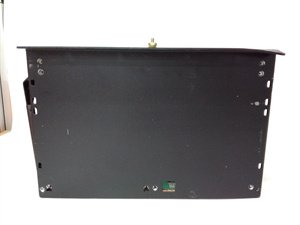

General Electric IC698CHS009 I/O Rack

The GE IC698CHS009 is a 9 – slot I/O rack specifically designed for the RX7i PACSystem. As an integral part of GE’s industrial automation portfolio, it plays a crucial role in providing a stable and organized platform for housing various components within an industrial control system.

This rear – mounted rack is highly compatible, working seamlessly with all RX7i CPUs, I/O devices, Series 90 – 70 I/Os, and VME modules. Its primary function is to offer a structured layout for these components, enabling efficient data transfer and power distribution. By accommodating multiple modules, the IC698CHS009 allows for the customization of control systems according to specific industrial requirements. Whether it’s in a manufacturing plant, a power generation facility, or a process control application, this I/O rack serves as a reliable foundation for building a robust and flexible automation system.

Technical Specifications

Software Configurability: The IC698CHS009 eliminates the need for DIP switches or jumpers for I/O addressing. Instead, it uses the machine edition logic developer – PLC software for I/O slot addressing. This software – based configuration simplifies the setup process and reduces the risk of errors during installation.

Slot Sensing Capability: It has a built – in slot sensing feature. This allows for automatic daisy – chaining of the interrupt acknowledgement and bus grant signals, without the need for slot jumpers. As a result, the integration of different modules into the rack becomes more straightforward, enhancing the overall system’s reliability.

Flexible Power Options: The rack supports both 100 – watt and 350 – watt power supplies. With the 100 – watt supply, it can handle a maximum current of 20 A at 5 VDC and 1 A at – 12 VDC, while the 350 – watt supply allows for 60 A at 5 VDC and 4 A at – 12 VDC. This flexibility in power options makes it suitable for a wide range of industrial applications with varying power demands.

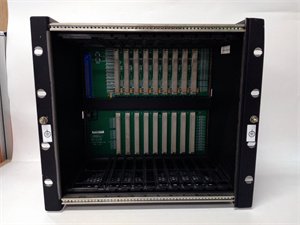

Module Compatibility: It can house a diverse range of modules, including single – width and double – width ones. Slots 1 – 8 are designed for single – width modules, while slot 9 can accommodate double – width modules. The power supply module has its dedicated slot (slot 0), ensuring proper power distribution to all the installed components.

Application Field

In manufacturing industries, the GE IC698CHS009 is used to build highly customized control systems for production lines. For example, in an automotive manufacturing plant, it can be used to house the I/O modules that control robotic arms, conveyor belts, and other automated machinery. By integrating different types of modules into the 9 – slot rack, manufacturers can precisely control the production process, ensuring high – quality output and efficient operation.

Power generation facilities also benefit from the IC698CHS009. In power plants, it can be used to manage the I/O signals related to turbine control, generator monitoring, and other critical systems. The ability to support different power supplies and its compatibility with various modules make it suitable for handling the complex power – related requirements in such facilities.

In the process control industry, such as in chemical plants or oil refineries, the IC698CHS009 is used to build control systems that monitor and regulate various processes. The software configurability and slot sensing capabilities are particularly useful in these applications, as they allow for easy integration of different sensors and actuators, enabling accurate process control.

Installation and Maintenance

Pre – installation preparation: Before installing the IC698CHS009, ensure that the installation area is clean and free from dust and debris. Check the power supply to confirm that it can provide the required 5 – 12 VDC. Verify the compatibility of the modules that will be installed in the rack. Use proper tools and follow safety procedures to avoid any damage to the rack or the components during installation.

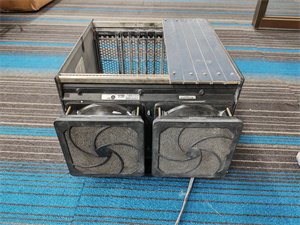

Maintenance recommendations: Regularly inspect the IC698CHS009 for any signs of physical damage, such as cracks or loose connections. Monitor the operating temperature to ensure it stays within the 0 °C – 60 °C range. If an optional fan assembly is installed, check its functionality to ensure proper cooling. Periodically clean the rack to prevent dust accumulation, as this can affect the performance of the installed modules.

Product Guarantee

GE stands firmly behind the quality of the IC698CHS009. The company offers a comprehensive product guarantee, ensuring that the product is free from defects in materials and workmanship. In case of any quality – related issues during the warranty period, GE provides prompt repair or replacement services. Their team of experienced technicians is available to offer technical support, helping customers with installation, configuration, and maintenance queries. This commitment to quality and customer satisfaction gives users confidence in the long – term reliability and performance of the IC698CHS009 in their industrial automation applications.
