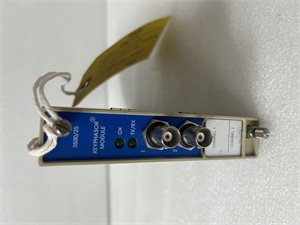

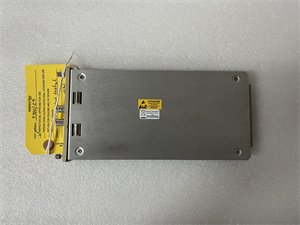

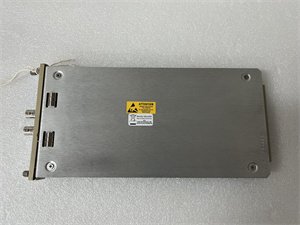

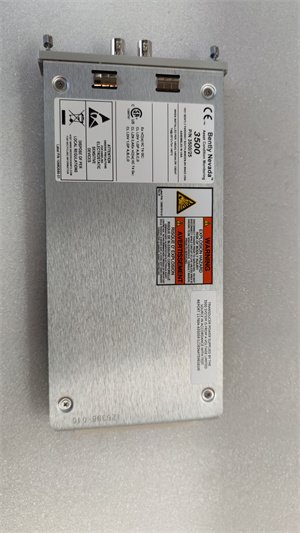

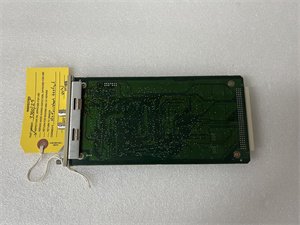

Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module
Manufacturer:Bently Nevada
Product Number:BENTLY 3500/25 149369-01
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 3500/25 149369-01 is an enhanced keyphasor module designed for precise rotational position monitoring in critical machinery. As part of the 3500 Monitoring System, it converts signals from proximity probes or magnetic pickups into digital keyphasor outputs, enabling accurate shaft speed measurement, vibration analysis, and phase-based diagnostics. With backward compatibility and advanced signal processing, this module supports predictive maintenance and ensures compliance with safety standards in industries such as oil & gas, power generation, and chemical processing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/25 149369-01 |
| Function | Enhanced Keyphasor Module |
| Input Channels | 1 (proximity probe/magnetic pickup) |
| Output Channels | 1 digital keyphasor signal |
| Power Supply | 24 VDC ±10% |
| Communication | RS-485 |
| Operating Temperature | -40°C to +85°C |
| Mounting | DIN rail or panel mount |
| Dimensions | 119.9 mm × 24.4 mm × 256.5 mm |
| Weight | 0.34 kg |
| Certifications | ATEX, IECEx (hazardous area approval) |
Advantages and Features
- Enhanced Signal Processing: Generates once-per-turn keyphasor signals from multi-event inputs for improved timing accuracy.
- Field-Upgradeable Firmware: Supports seamless updates to adapt to evolving monitoring requirements.
- Redundancy Support: Enables dual-channel configurations for critical systems, ensuring continuous operation.
- Safety Compliance: SIL 1/2 certifications for use in safety-instrumented systems.
- Wide Compatibility: Integrates with Bently 3500 racks and legacy modules.
Application Areas and Use Cases
Industry Applications:
- Oil & Gas: Monitoring compressors, turbines, and pumps for rotational alignment.
- Power Generation: Optimizing generator and steam turbine performance.
- Manufacturing: Ensuring precision in high-speed rotating machinery.
Case Study: A U.S. refinery reduced unplanned downtime by 25% using the 3500/25 149369-01 to synchronize vibration analysis with shaft speed data, detecting misalignment issues before failures occurred.
Competitor Comparison
- Higher Channel Density: Supports dual-channel configurations vs. single-channel alternatives.
- Integrated Safety: Combines keyphasor generation with SIL-rated safety features.
- Flexible Installation: Offers DIN rail or panel mounting options for space-efficient setups.
Selection Recommendations
- System Complexity: Choose the 3500/25 149369-01 for basic keyphasor needs; consider the 3500/22M for advanced vibration monitoring.
- Hazardous Environments: Verify ATEX/IECEx certifications for compliance in explosive zones.
- Redundancy Requirements: Pair with redundant power supplies for mission-critical applications.
Precautions
- Signal Calibration: Regularly calibrate the probe-to-shaft clearance using the Bently tool to ensure accurate phase signals.
- Environmental Limits: Avoid exposing the module to moisture or extreme temperatures beyond its rated range.
- Firmware Updates: Apply updates only during scheduled maintenance to prevent system interruptions.
