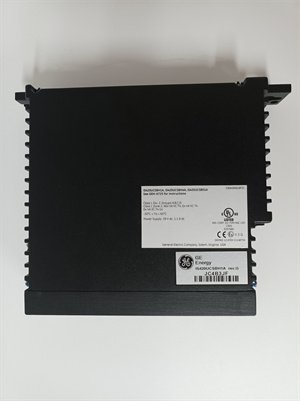

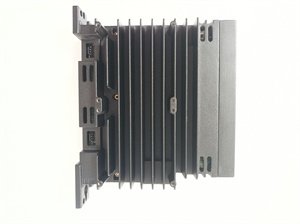

General Electric IS420UCSBS1A Safety Controller Module

The GE IS420UCSBS1A is a safety – oriented controller module designed by General Electric as an integral part of the Mark VIeS control safety system. This self – contained computer module functions as a powerful safety controller, playing a pivotal role in industrial automation and control, especially in scenarios involving industrial gas and steam turbines.

Built around a 600 MHz Intel EP80579 microprocessor running the QNX Neutrino operating system, the IS420UCSBS1A offers high – speed and reliable performance. It is engineered to handle complex control logics and ensure the safety of industrial processes. Unlike standard controllers, it has no backplane, and its own power supply eliminates the need for an external power source connection for basic operation. This module is a testament to GE’s commitment to providing advanced control solutions for critical industrial applications, ensuring seamless and secure operations.

Technical Specifications

High – Performance Processing

Powered by the 600 MHz Intel EP80579 microprocessor, the GE IS420UCSBS1A can execute complex control algorithms with ease. This high – speed processing enables it to respond promptly to various industrial process signals, ensuring efficient and accurate control. Whether it’s monitoring turbine speeds or regulating other critical parameters, the module’s processing power ensures seamless operation.

Flexible Redundancy Options

The module offers simplex, dual, or triple modular redundant (TMR) configurations. This flexibility allows users to choose the redundancy level based on the criticality of their industrial applications. In dual and TMR setups, data synchronization between controllers is automatic, enhancing system reliability and minimizing the risk of downtime due to controller failures.

Hazardous Environment Compatibility

Certified with UL E207685 for Class I, Zone 2, Group IIC mounting, the IS420UCSBS1A can be installed in hazardous environments. This makes it suitable for industries such as oil and gas, where the risk of explosion – prone atmospheres is high. It can operate safely and effectively, maintaining control and safety functions even in challenging surroundings.

Self – Contained Design

With its own power supply and no need for a backplane, the GE IS420UCSBS1A simplifies system integration. There are no battery requirements, and no jumper settings are needed, reducing the complexity of installation and maintenance. This self – contained design also ensures that application input is not lost during controller maintenance or repair, safeguarding the integrity of the control system.

In the power generation industry, the GE IS420UCSBS1A is extensively used in power plants that utilize gas or steam turbines. It monitors and controls turbine operations, ensuring optimal power generation efficiency while maintaining strict safety standards. For example, it can precisely regulate fuel flow to the turbine based on load requirements, while also monitoring for any abnormal conditions that could lead to safety hazards.

The oil and gas industry benefits from the IS420UCSBS1A in various applications. In oil refineries, it controls the operation of critical equipment, such as pumps and compressors, in hazardous areas. By providing reliable control in potentially explosive environments, it helps maintain the smooth operation of the refinery processes. In offshore oil rigs, the module is used to manage safety – critical functions, ensuring the safety of personnel and the integrity of the installation.

In manufacturing plants that use turbines for power generation or in production processes, the GE IS420UCSBS1A plays a crucial role. It controls the speed and performance of turbines, which in turn power machinery. This ensures consistent production quality and maximizes the lifespan of the equipment by preventing over – stress or abnormal operating conditions.

Installation and Maintenance

Pre – installation preparation: Before installing the GE IS420UCSBS1A, ensure that all power sources in the system are turned off to avoid electrical hazards. Verify that the control system network cabling and hardware are correctly connected. Check the module for any visible damage during transit. Make sure the environmental conditions at the installation site, such as temperature and humidity, are within the – 30 to + 65 °C range specified for the module. Also, confirm that the correct redundancy configuration has been planned and that the module has been properly added to the system.

Maintenance recommendations: Regularly monitor the IS420UCSBS1A for any signs of overheating, such as discoloration of the module casing. Check the power supply voltages to ensure they remain within the 27.4 – 28.6 VDC range. Periodically test the communication interfaces to ensure seamless data transfer. If the module is part of a redundant system, perform regular redundancy checks to confirm proper operation. In case of any detected issues, refer to the GE product manual or contact GE’s technical support for detailed troubleshooting and repair guidance.
