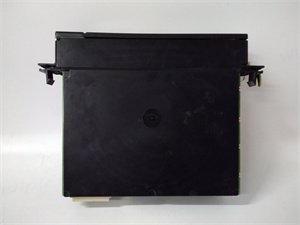

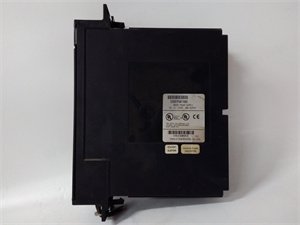

General Electric IC697PWR720 Power Supply Adapter Module

The GE IC697PWR720 is a power supply adapter module that plays a pivotal role in the GE Fanuc Series 90 – 70 programmable logic controller (PLC) systems. This module, now under Emerson Automation following the acquisition, interfaces an external power source to the IC697 rack. Its primary function is to distribute power to the backplane, ensuring that all the electronic components within the rack operate smoothly.

By delivering stable voltages of +5 VDC at 18 A, +12 VDC at 2 A, and -12 VDC at 1 A, the IC697PWR720 caters to the diverse power needs of different modules in the system. It also monitors the +5 V output and the input power ok signal from the external power supply, while generating backplane signals for power up – down sequences. This makes it a crucial component for maintaining the integrity and stability of industrial control systems, where consistent power supply is fundamental for seamless operation.

Technical Specifications

Stable Power Output

The GE IC697PWR720 is engineered to offer extremely stable power output. It can effectively counteract power fluctuations and noise, providing a clean and consistent power supply to the PLC system. This stability is crucial for the accurate operation of sensitive electronic components in the rack, reducing the risk of malfunctions due to power – related issues.

Wide Input Voltage Compatibility

With an input voltage range spanning from 85 to 264 VAC, this module can adapt to various power grid conditions. It is suitable for use in different regions and applications, eliminating the need for additional voltage conversion equipment in most cases. This wide compatibility enhances the versatility of the IC697PWR720 and simplifies system integration.

Robust Protection Mechanisms

Equipped with short – circuit, overvoltage, and overload protection, the IC697PWR720 safeguards both itself and the connected components. In the event of an electrical fault, these protection features kick in promptly to prevent damage, ensuring the long – term reliability of the power supply module and the overall industrial control system.

Easy Installation

Designed as a single – slot module, the GE IC697PWR720 can be easily plugged into the power supply slot in the IC697 rack. This straightforward installation process reduces the time and effort required for system setup or module replacement, making it convenient for maintenance and upgrades in industrial settings.

In manufacturing plants, the GE IC697PWR720 is essential for powering PLC – controlled production lines. It ensures that conveyor belts, robotic arms, and other manufacturing equipment receive a stable power supply, enabling smooth and efficient production processes. For example, in an automotive assembly line, it powers the PLCs that control the movement and operation of robotic welders and part – handling equipment.

In the power generation industry, this module is used to power the control systems of turbines, generators, and other critical equipment. It helps maintain the stable operation of power plants by providing reliable power to the PLCs that monitor and regulate various parameters such as voltage, frequency, and temperature.

The chemical industry also benefits from the IC697PWR720. In chemical processing plants, it powers the control systems that manage the complex processes of mixing, reacting, and distilling chemicals. By ensuring stable power supply to the PLCs, it contributes to the safe and accurate operation of these processes, minimizing the risk of accidents and product quality issues.

Installation and Maintenance

Pre – installation preparation: Before installing the GE IC697PWR720, make sure the power to the entire system is turned off to avoid electrical hazards. Verify that the input voltage of the external power supply falls within the 85 – 264 VAC range specified for the module. Check the physical condition of the module for any signs of damage during transit. Ensure that the IC697 rack is clean and free of debris, and that the power supply slot where the IC697PWR720 will be installed is in good condition.

Maintenance recommendations: Regularly inspect the IC697PWR720 for any visible signs of overheating, such as discoloration of the casing. Monitor the output voltages and currents using appropriate testing equipment to ensure they remain within the specified ranges. Clean the module periodically to prevent dust accumulation, as dust can affect heat dissipation and potentially lead to performance issues. If any abnormalities are detected, consult the product manual or contact Emerson Automation’s technical support for guidance on troubleshooting and repair.

Product Guarantee

GE, now under Emerson Automation, stands firmly behind the quality of the GE IC697PWR720. The module comes with a comprehensive quality assurance program. In the unlikely event of a defect in materials or workmanship during the warranty period, Emerson Automation will repair or replace the module free of charge. Their dedicated technical support team is available to assist customers with any installation – related questions, troubleshooting, or general product – related inquiries. This commitment to quality and customer support reflects the company’s confidence in the reliability and performance of the IC697PWR720, providing peace of mind to industrial users relying on this crucial power supply module for their operations.
