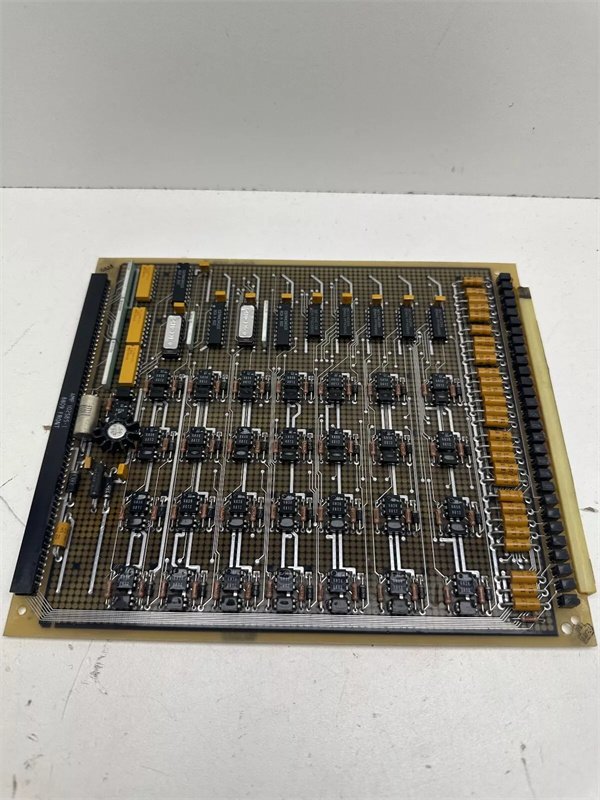

Woodward 5461-650 Temperature/Current Input Module
Manufacturer:Woodward
Product Number:Woodward 5461-650
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Woodward 5461-650 is a high-precision temperature and current input module designed for industrial automation systems. It converts sensor signals into standardized outputs for seamless integration with PLC and DCS systems, ensuring reliable performance in critical applications such as machinery control, energy management, and process automation. With advanced signal processing capabilities, this module supports a wide range of input types, including thermocouples, RTDs, and 4–20 mA current signals, making it versatile for diverse industrial environments.
Key Technical Parameters
| Parameter | Specification |
|---|---|
| Module Type | Temperature/Current Input Module |
| Input Voltage | 12 V DC |
| Input Signal Range | -10 to +10 V (analog), 4–20 mA (current) |
| Resolution | 13-bit (analog inputs), 11-bit (analog outputs) |
| Accuracy | ±0.5% of full scale |
| Communication Protocol | RS-485 (Modbus RTU) |
| Output Type | Digital (6 transistors, 2 relays) |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 105 mm × 45 mm × 17 mm |
| Weight | 0.2 kg |
| Certifications | UL, CE, CSA |
Advantages and Features
- Wide Environmental Range: Operates reliably in extreme temperatures (-40°C to +85°C), making it suitable for harsh industrial settings.
- High Precision: 13-bit analog input resolution ensures accurate measurements for critical control systems.
- Flexible Connectivity: Supports multiple input types (thermocouples, RTDs, 4–20 mA) and Modbus RTU for easy integration with automation networks.
- Robust Design: IP65/IP67-rated enclosure (depending on variant) protects against dust and moisture.
- Low Power Consumption: ≤5 W operation reduces energy costs in long-term use.
Application Areas and Use Cases
- Energy Generation: Monitors temperature and current in gas turbines and generators.
- Manufacturing: Controls machinery in automotive assembly lines and metal processing plants.
- Chemical Processing: Manages temperature-sensitive reactions in reactors.
- HVAC Systems: Optimizes climate control in large industrial facilities.
Example Case: A European automotive factory deployed the 5461-650 to monitor engine temperatures in robotic welding stations, reducing downtime by 15% due to early fault detection.
Competitor Comparison
Compared to similar modules, the 5461-650 offers:
- Extended temperature range (-40°C to +85°C vs. typical -20°C to +70°C).
- Higher input resolution (13-bit vs. 12-bit in many alternatives).
- Dual communication support (RS-485 and Modbus RTU) for broader system compatibility.
Selection Recommendations
- Input Requirements: Verify compatibility with sensor types (e.g., thermocouple/RTD) and signal ranges.
- Environmental Needs: Choose IP67 variants for wet or dusty environments.
- System Integration: Ensure RS-485/Modbus RTU compatibility with existing controllers.
- Cost Efficiency: Balances upfront cost with long-term reliability (MTBF > 50,000 hours).
Precautions
- Installation: Follow wiring diagrams to avoid voltage spikes. Use shielded cables for signal integrity.
- Calibration: Perform annual recalibration to maintain accuracy.
- Safety: Disconnect power before servicing. Ensure compliance with NEC/CE standards.
