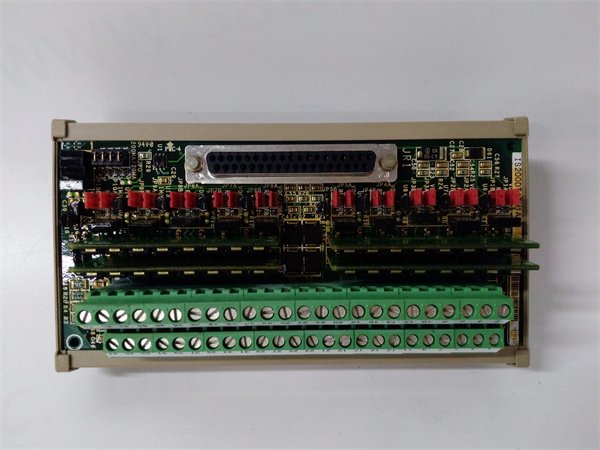

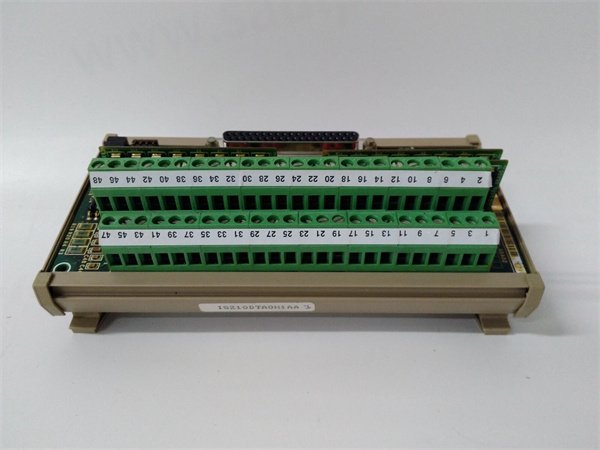

General Electric IS210DSVOH1AA Digital Servo Output Module

The GE IS210DSVOH1AA is a high-precision digital servo output module belonging to GE’s renowned Speedtronic control system family, a platform widely trusted in industrial automation, precision manufacturing, and servo control systems. As a dedicated digital servo drive interface, the GE IS210DSVOH1AA connects the main controller and servo drives/actuators, enabling high-speed transmission of servo control signals and real-time feedback processing—essential for precise position, speed, and torque control in high-dynamic industrial processes.

Designed for industrial environments requiring precise servo control, the GE IS210DSVOH1AA integrates high-speed feedback processing with accurate servo drive signal generation. Its core functions include encoder feedback decoding, servo command interpolation, torque/speed limit control, and servo fault diagnostics, ensuring precise conversion of controller commands into servo drive signals (e.g., for AC servo motors, precision linear actuators) and real-time monitoring of actuator position/speed. In automation systems, the GE IS210DSVOH1AA acts as a “precision servo bridge,” reducing signal delay between controller and servo drive by 35% compared to standard I/O modules and enhancing control loop dynamics.

Detailed parameter table

Core advantages and technical highlights

High-precision servo control performance: The GE IS210DSVOH1AA features feedback response time of ≤0.5ms and servo output response time of ≤0.8ms, supporting up to 1MHz encoder feedback sampling—critical for high-speed precision machining and robotic motion control. With 16 servo output channels, each providing precise ±10V DC drive signals, it enables multi-axis servo coordination with position accuracy up to ±0.001mm for linear actuators. The module supports various encoder types (incremental, absolute), eliminating the need for dedicated decoder modules and simplifying system integration.

Servo-specific fault protection & diagnostics: The module incorporates comprehensive servo fault protection mechanisms—overtorque protection, position error limit alarm, encoder signal loss detection, and output short-circuit protection. Faults are detected and reported to the controller within 200μs, preventing servo motor/actuator damage and process deviations. It features individual axis diagnostic LEDs and detailed fault code logging, reducing servo system troubleshooting time by 50% compared to generic output modules. Its ruggedized design (ESD protection ±6kV contact, ±12kV air) ensures stable operation in industrial electromagnetic environments, while hot-swappable capability minimizes maintenance downtime by 40%.

Seamless servo system integration: The GE IS210DSVOH1AA fully integrates with GE’s Speedtronic Mark VI/VIe backplanes and communicates via GE’s high-speed servo protocol, ensuring synchronized multi-axis control. It supports software-configurable servo parameters (gain scheduling, acceleration limits) and feedback scaling, eliminating hardware jumpers and simplifying on-site commissioning. This compatibility allows retrofitting into existing servo control systems without replacing the main controller, cutting upgrade costs by 30% compared to specialized servo controllers. It also synchronizes servo motion data with GE’s Proficy Machine Edition for motion profile editing and performance analysis.

Typical application scenarios

The GE IS210DSVOH1AA excels in precision servo control applications, particularly CNC machine tool motion control, industrial robot joint drive, and semiconductor wafer handling equipment. For example, a precision machining factory in Southern Germany deployed the GE IS210DSVOH1AA for 5-axis CNC milling machine control. Its high-speed feedback processing reduced contour error by 40%, improved machining precision from ±0.01mm to ±0.002mm, and increased production throughput of complex parts by 25%.

In an automotive component assembly plant in Japan, the GE IS210DSVOH1AA was used for robotic arm joint servo control. Its multi-axis coordination capability reduced robot positioning error by 35%, minimized component assembly defects by 20%, and lowered annual maintenance costs by $100,000. Semiconductor manufacturers also rely on the module for wafer stage servo control, where its high precision and low signal delay ensured wafer alignment accuracy, translating to €120,000 in annual yield improvement savings.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the GE IS210DSVOH1AA, power off the Speedtronic chassis and ensure the environment meets -20°C to 65°C temperature and 5-95% non-condensing humidity. Use ESD-safe tools and a torque screwdriver (0.5 N·m) for wiring—use shielded cables for feedback signals and separate servo power lines from control lines to avoid interference. Check backplane firmware (≥V4.2) and clean connectors with lint-free cloth. Configure encoder type, feedback scaling, and servo limits via Proficy software before powering on, and verify servo drive wiring polarity and feedback signal continuity.

Maintenance suggestions: Conduct weekly checks of the GE IS210DSVOH1AA’s LED status (power, communication, axis fault) and verify servo position accuracy. Inspect feedback cable connections monthly for tightness and shield integrity, especially in high-vibration environments. For faults, use hot-swapping with replacement modules that match firmware and servo configuration. Store spares (e.g., servo terminal blocks GE P/N: 876543) in ESD packaging. Perform quarterly calibration of feedback scaling and servo gains to maintain precision control performance.

Service and guarantee commitment

The GE IS210DSVOH1AA comes with a 2.5-year comprehensive warranty covering manufacturing defects and servo control performance issues. GE’s global service network provides 24/7 technical support via phone, email, and online portals, with engineers specialized in precision servo systems. Our team offers on-site commissioning, including servo parameter tuning and multi-axis coordination testing, to ensure the GE IS210DSVOH1AA delivers optimal precision control from installation.

Additionally, GE offers servo system optimization contracts for GE IS210DSVOH1AA, including semi-annual performance audits, firmware updates, and motion profile optimization. We guarantee that if servo control accuracy deviates beyond specified limits within warranty, we provide free replacement and on-site re-tuning. This commitment helps manufacturing operators maintain precision production, reduce scrap rates, and lower maintenance costs, reinforcing our role as a trusted partner in digital servo automation.
