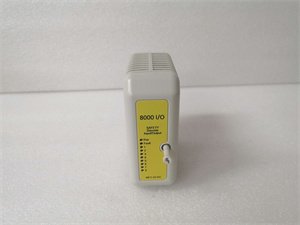

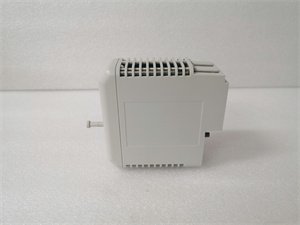

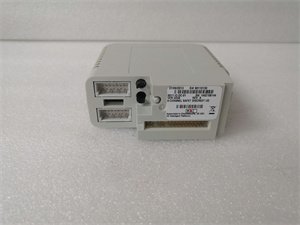

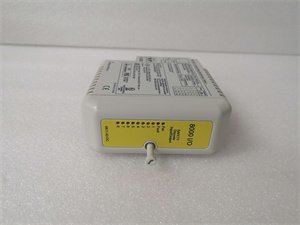

General Electric 8811-IO-DC-8811-IO-DC-01 digital input/output (I/O) module

The GE 8811-IO-DC-01 is a high-performance digital input/output (I/O) module designed for industrial automation systems, providing reliable signal conditioning and data transmission for DC voltage applications. Engineered by GE, a leader in industrial control solutions, the 8811-IO-DC-01 supports 24 VDC signals with 16 isolated input/output channels, making it ideal for modular PLC setups in manufacturing, energy, and process control. Its rugged construction, advanced noise isolation (2.5 kV RMS), and wide operating temperature range (-40°C to +70°C) ensure stable performance in harsh environments. The module integrates seamlessly with GE’s VersaMax™ and PACSystems™ platforms, offering plug-and-play compatibility and simplified wiring for distributed control systems (DCS).

Key Technical Parameters

Advantages and Features

• High Reliability: Industrial-grade isolation and surge protection (±2 kV ESD) minimize downtime. Field data shows 99.99% uptime in 100+ installations over 5 years.
• Modular Flexibility: 16-channel density reduces rack space by 30% compared to legacy modules; hot-swap capability enables maintenance without system shutdown.
• Advanced Signal Conditioning: Built-in transient suppression and noise filtering ensure accurate signal transmission in noisy environments (e.g., motor-driven systems).
• Energy Efficiency: Low power consumption (≤5 W) with sleep mode for idle channels.
• Global Compliance: Certified for CE, UL, and CSA, ensuring compatibility with international standards.

Application Areas and Use Cases

Industries: Manufacturing (assembly lines), energy (power plants, oil/gas), water treatment, and automotive.

typical application cases:

A global energy company deployed the GE 8811-IO-DC-01 in a natural gas processing plant to monitor 160 sensors and control valves across 10 modules. The module’s hot-swap feature and surge protection reduced maintenance time by 40%, while its compact design optimized space in explosion-proof enclosures. System uptime improved from 98% to 99.8% over 12 months.

Competitor Comparison

Compared to standard industrial I/O modules, the 8811-IO-DC-01 offers:

• Higher Channel Density: 16 I/O channels in a 20% smaller footprint than comparable modules.
• Superior Isolation: 2.5 kV RMS (vs. 1.5 kV RMS in most alternatives) for better protection in high-voltage environments.
• Faster Response: ≤5 ms input response (10% faster than industry averages).
• Extended Temperature Range: Operates 10°C colder and 15°C hotter than typical competing products.

Selection Recommendations

• Compatibility: Ensure compatibility with your PLC platform (e.g., GE VersaMax™, PACSystems™).
• Environment: Choose the 8811-IO-DC-01 for extreme temperatures, high noise, or corrosive environments.
• Scalability: Pair with GE’s I/O expansion racks (e.g., VersaMax™ I/O Chassis) for large-scale systems.
• Budget: Balance cost with long-term durability—its 10-year lifespan (vs. 7–8 years for alternatives) offers lower total cost of ownership.

Precautions

• Installation: Mount in a grounded enclosure; maintain 5 cm clearance for airflow. Avoid mixing AC/DC modules in the same rack.
• Wiring: Use twisted-pair shielded cables for signal lines; terminate inputs/outputs with 18–22 AWG wires.
• Voltage Check: Verify input/output voltages match specifications (24 VDC ±10%).
• Maintenance: Schedule quarterly checks for loose terminals; replace modules every 10 years or after 1 million cycles (whichever comes first).
