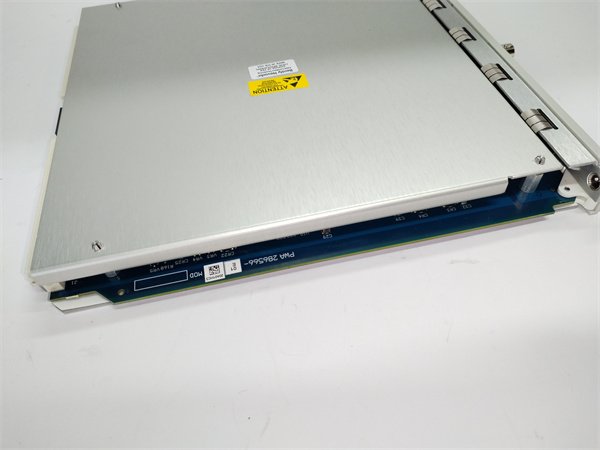

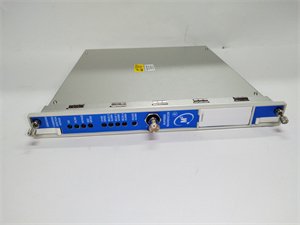

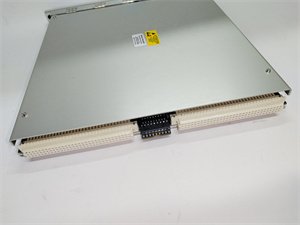

Bently Nevada 3500/53-03-00 Electronic Overspeed Detection System
Manufacturer:Bently Nevada
Product Number:Bently 3500/53-03-00
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 3500/53-03-00 is a high-reliability electronic overspeed detection system designed for critical rotating machinery, such as turbines, compressors, and generators. As part of the 3500 Series, it integrates advanced monitoring and protection capabilities to prevent catastrophic failures caused by excessive speed. The module supports three independent channels for redundant speed measurement, ensuring accurate tripping signals even in harsh industrial environments. It accepts inputs from proximity probes or magnetic pickups, provides configurable alarm thresholds, and offers Ethernet/Modbus connectivity for seamless integration with distributed control systems (DCS) or plant asset management platforms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/53-03-00 |
| Channels | 3 (triple-redundant overspeed detection) |
| Input Signals | Proximity probe (AC/DC) or magnetic pickup |
| Input Voltage Range | +10 VDC to -24 VDC |
| Input Impedance | 20 kΩ |
| Power Supply | 24 VDC ±10% (module), redundant power optional |
| Outputs | 3 relay outputs (SPDT, 5 A @ 250 VAC/30 VDC) |
| Communication | Ethernet TCP/IP, Modbus RTU/TCP |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Weight | 1.5 kg |
Advantages and Features
- Triple Redundancy: Three independent channels ensure fault tolerance, with voting logic to avoid false trips.
- Wide Input Compatibility: Supports both proximity probes (for precise position sensing) and magnetic pickups (for high-speed applications).
- Real-Time Alarming: Programmable alert/danger thresholds trigger relays for immediate shutdown or alarm activation.
- Flexible Communication: Integrates with DCS, PLCs, or cloud platforms via Ethernet or Modbus.
- Rugged Design: Withstands extreme temperatures, humidity, and vibration typical of industrial settings.
Application Areas and Use Cases
Industry Applications:
- Oil & Gas: Turbines and compressors in offshore platforms.
- Power Generation: Steam turbines and generators.
- Manufacturing: High-speed rotating equipment in automotive or aerospace industries.
Case Study: A European power plant reduced downtime by 40% using the 3500/53-03-00 to detect overspeed events in steam turbines, preventing $2 million in potential equipment damage.
Competitor Comparison
- Higher Redundancy: Triple-channel design outperforms single-channel systems in safety-critical applications.
- Simplified Integration: Built-in Ethernet eliminates the need for external gateways, reducing installation costs.
- Cost-Effective Redundancy: Balances reliability with affordability compared to premium quadruple-redundant systems.
Selection Recommendations
- Channel Requirements: Choose 3500/53-03-00 for triple redundancy; opt for single-channel modules for non-critical machinery.
- Power Redundancy: Pair with 3500/15 dual power modules for continuous operation in mission-critical environments.
- Communication Needs: Ensure compatibility with existing Modbus or Ethernet networks.
Precautions
- Sensor Calibration: Verify sensor alignment and calibration every 6 months to maintain accuracy.
- Heat Management: Install in well-ventilated areas to prevent overheating in high-temperature environments.
- Firmware Updates: Regularly update firmware to access safety certifications and performance improvements.
