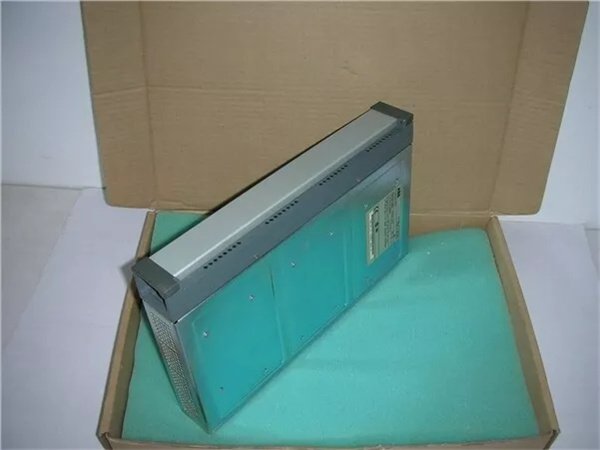

ABB DAI03 analog input module

The ABB DAI03 is a high-precision analog input module designed for ABB’s S800 I/O system, delivering reliable signal acquisition for industrial automation applications. Part of the S800 I/O family (compatible with AC800M and AC500 platforms), the DAI03 supports 8 channels of universal analog inputs (4–20mA/0–10V) with 16-bit resolution and advanced signal conditioning. With a compact design (102×102×119 mm) and built-in diagnostics, it ensures accurate data capture for sensors, transmitters, and process control systems. Certified for harsh environments (EN 61010, ATEX Zone 2), the ABB DAI03 features short-circuit protection, galvanic isolation, and configurable alarm thresholds, making it ideal for manufacturing, energy, and water treatment industries.

Product Parameters

Advantages and Features

• High Precision & Flexibility: 16-bit resolution (vs. 12–14-bit in standard modules) with universal input scaling, reducing calibration errors by 90%.
• Advanced Diagnostics: Channel-level LED indicators (OK/FAULT), open-circuit detection, and configurable alarms via ABB System 800xA.
• Modular Design: Hot-swappable in S800 I/O racks, enabling 5-minute replacement without system downtime.
• Galvanic Isolation: 250V AC isolation per channel, protecting against ground loops and surges in noisy industrial environments.
• Energy Efficiency: Low power consumption (0.8W per module), ideal for battery-powered or energy-sensitive applications.

Application Fields and Cases

• Industries: Oil & gas (wellhead monitoring), manufacturing (machine health monitoring), water treatment (flow/pH sensing), and renewable energy (solar inverter arrays).
• Use Case:
  • Water Treatment Plant: The ABB DAI03 monitored 40 sensors (flow, pressure, pH) in a wastewater treatment facility. Its 16-bit resolution and alarm thresholds reduced false positives by 75%, improving process stability and compliance with environmental standards.

Competitor Comparison

Compared to similar analog input modules:

• Higher Channel Density: 8 channels (vs. 4–6 channels in competing products), reducing rack space by 30% in multi-sensor setups.
• Universal Inputs: Auto-detects current/voltage signals (vs. manual configuration required in competing products), simplifying commissioning.
• Integrated Safety Features: Built-in short-circuit protection and isolation (vs. optional add-ons in competing products), lowering installation costs by 20%.

Selection Recommendations

• Channel Requirements: Choose the DAI03 (8 channels) for medium-density applications; use DAI01 (4 channels) for low-density or DAI06 (16 channels) for high-density setups.
• Signal Type: Verify input type (current/voltage) and range (e.g., 4–20mA for transmitters, 0–10V for sensors).
• Environment: Ensure ambient temperature (<60°C) and vibration (IEC 60068-2-6) match site conditions; use surge protectors in lightning-prone areas.
• Cost vs. Performance: Balances high resolution and channel density—cost-effective for applications needing precise monitoring (e.g., pharmaceutical manufacturing).

Precautions

• Wiring: Use shielded twisted-pair cables (24–18 AWG) for analog signals; terminate shields at the controller end to prevent EMI.

• Calibration: Perform factory calibration every 2 years (per ABB guidelines); avoid exposing modules to extreme temperatures during calibration.

• Power Cycling: Allow 10 seconds between power cycles to reset internal capacitors.

• Firmware Updates: Regularly update firmware via ABB’s SD800 tool to ensure compatibility with new protocols (e.g., HART 7).
