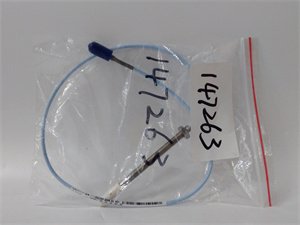

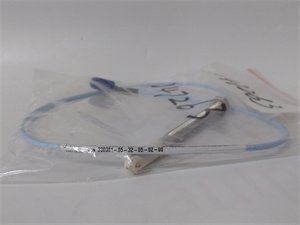

Bently Nevada 330901-05-32-05-02-00 Accelerometer Sensor Assembly

The 330901-05-32-05-02-00 from Bently Nevada is a high-performance piezoelectric accelerometer sensor assembly designed for precision vibration monitoring in industrial machinery applications. As a key component of the 3300 XL monitoring system, this accelerometer captures dynamic vibration signals across a broad frequency range, providing critical data for assessing machinery health and detecting early-stage faults. Bently Nevada’s 330901-05-32-05-02-00 is engineered to deliver reliable performance in harsh industrial environments, complementing proximity sensor systems like the 330100-90-01 by monitoring vibration patterns that indicate bearing defects, imbalance, and misalignment in rotating equipment.

Bently Nevada’s 330901-05-32-05-02-00 addresses the need for accurate vibration measurement in applications where traditional proximity sensors may not be feasible. Its integrated 5-meter cable ensures seamless signal transmission to monitoring systems, maintaining data integrity from sensor to analyzer. This accelerometer plays a vital role in comprehensive machinery protection strategies, working alongside components like the 330104-00-05-10-02-00 extension cable to form a complete vibration monitoring solution that delivers actionable insights to operators and control systems.

Detailed parameter table

Core advantages and technical highlights

Broad measurement capabilities: The 330901-05-32-05-02-00 offers a ±50 g measurement range and 0.5 Hz to 10,000 Hz frequency response, enabling it to capture both low-frequency structural vibration and high-frequency bearing fault signatures. This versatility makes it suitable for monitoring diverse machinery types, from slow-speed pumps to high-speed turbines, providing comprehensive vibration data that complements proximity sensor measurements.

Extreme environment durability: Constructed with 316L stainless steel housing and an IP68 protection rating, the 330901-05-32-05-02-00 withstands harsh industrial conditions including exposure to water, dust, chemicals, and extreme temperatures (-55°C to +121°C). This rugged design ensures reliable operation in offshore platforms, chemical plants, and other demanding environments where sensor failure could compromise machinery protection.

Integrated cable design: The accelerometer features an integral 5-meter shielded cable that minimizes signal loss and electromagnetic interference (EMI) during transmission—similar to the 330104-00-05-10-02-00 extension cable’s design but optimized for accelerometer signals. This integrated approach reduces connection points, minimizing potential failure points and ensuring consistent signal quality from sensor to monitoring equipment.

System compatibility: Designed for seamless integration with 3300 XL monitoring systems, the 330901-05-32-05-02-00 works with 133819-01 signal conditioners and 1900/27 controllers to form a complete vibration monitoring solution. Its 100 mV/g sensitivity ensures compatibility with standard monitoring equipment, while its differential output provides additional noise immunity in electrically noisy environments.

Typical application scenarios

In power generation facilities, the 330901-05-32-05-02-00 is installed on turbine bearings, generator end bells, and auxiliary equipment to monitor vibration levels that indicate mechanical degradation. Its broad frequency response captures both low-frequency rotor vibration and high-frequency bearing defects, providing early warning of issues that could lead to unplanned outages. The accelerometer’s high-temperature rating allows installation in turbine enclosures, where it works alongside 330100-90-01 proximity sensors to provide comprehensive machinery health data.

Oil and gas processing plants utilize the 330901-05-32-05-02-00 on reciprocating and centrifugal compressors, where its rugged construction withstands hydrocarbon exposure and vibration. The accelerometer monitors cylinder vibration, gear mesh frequencies, and bearing condition, helping operators detect valve issues, imbalance, and misalignment before they cause unscheduled downtime. Its IP68 rating makes it suitable for washdown environments and offshore installations where moisture exposure is common.

Manufacturing facilities deploy the 330901-05-32-05-02-00 on production line motors, pumps, and gearboxes to support predictive maintenance programs. The accelerometer’s ability to capture high-frequency vibration allows early detection of bearing wear and lubrication issues, while its integrated cable simplifies installation in tight machine spaces. Data from the 330901-05-32-05-02-00 is transmitted to 1900/55-0Z-01-01-01 HMIs, providing operators with real-time vibration trends and alerting them to developing problems.
