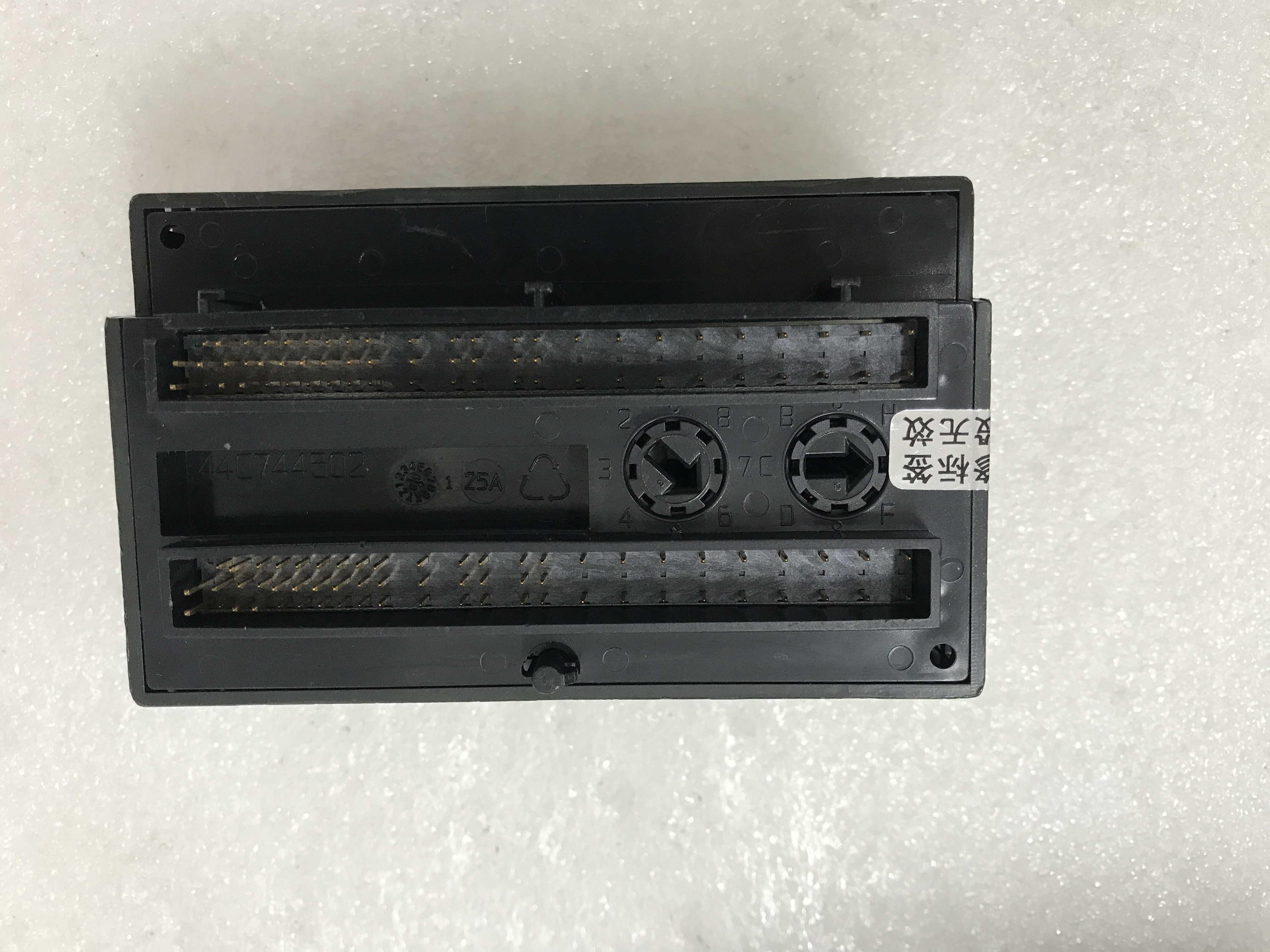

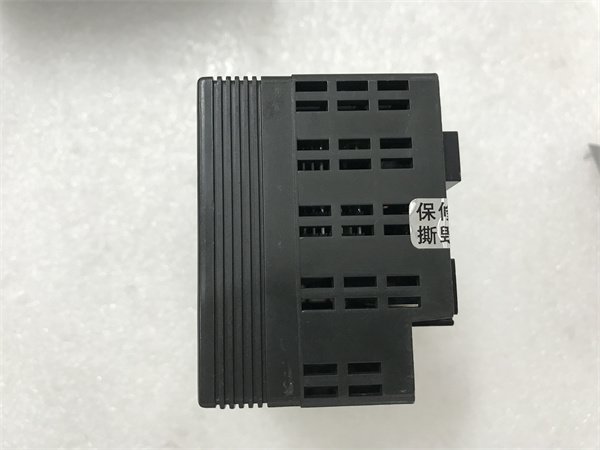

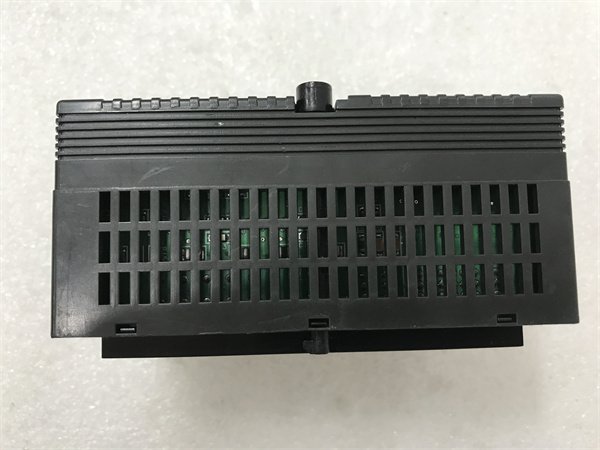

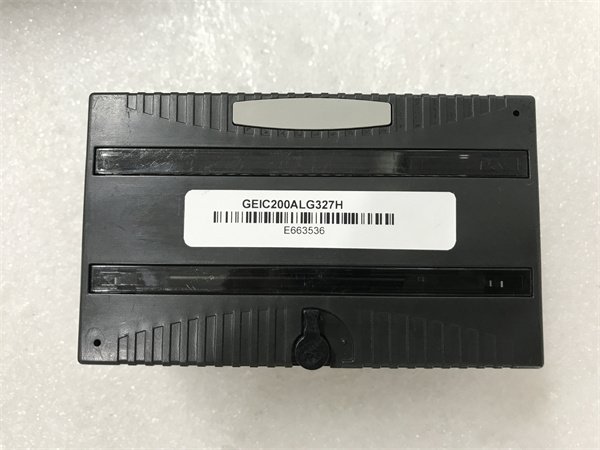

General Electric IC200ALG327H Analog Input/Output Module
Manufacturer: General Electric
Product Number: IC200ALG327H
Category: Analog Input/Output Module
System Compatibility: GE Fanuc Series 90-30 PLC systems
Application: Industrial automation requiring precision control and flexibility
Function: Enhanced analog I/O processing for control applications
Design: Advanced module building on proven predecessor performance
Product Description
IC200ALG327H is an advanced Analog Input/Output Module designed for GE Fanuc Series 90-30 PLC systems. Building on the proven performance of its predecessor, the IC200ALG327H introduces enhanced features for precision control and flexibility in industrial automation. This module is engineered to handle complex analog signals, making it ideal for applications requiring high reliability and scalability.
The IC200ALG327H offers 16 channels of analog input/output functionality, supporting voltage, current, thermocouple, and RTD signals. Its core function is to convert real-world analog data into digital signals for PLC processing, enabling precise monitoring and control of industrial processes. Key enhancements include improved signal conditioning, expanded input/output ranges, and compatibility with newer sensor technologies. By integrating IC200ALG327H, users can achieve seamless automation in critical areas such as temperature regulation, pressure monitoring, and flow control.
Product Parameters
| Parameter | Specification |
|---|---|
| Voltage | 24V DC ±10% |
| Input Types | Voltage (0-10V), Current (4-20mA), Thermocouple, RTD |
| Resolution | 16-bit (upgraded from 14-bit) |
| Accuracy | ±0.05% (FS) |
| Channels | 16 (8 AI/8 AO or 16 AI/16 AO) |
| Sampling Rate | 500 samples/second (doubled) |
| Compatibility | GE Fanuc Series 90-30 PLCs |
Advantages and Features
- Higher Precision: 16-bit resolution and ±0.05% accuracy ensure precise signal conversion.
- Faster Performance: 500 samples/second sampling rate accelerates real-time decision-making.
- Expanded Input Support: Added compatibility with mV-level signals for specialized sensors.
- Enhanced EMI Protection: Reduced noise interference through improved shielding.
- Case Study: A semiconductor factory in South Korea reduced process variability by 30% using IC200ALG327H, improving product yield.
Application Areas and Cases
IC200ALG327H excels in:
- Energy: Power generation and distribution systems.
- Automotive: Robotic welding and assembly line control.
- Food & Beverage: Temperature-sensitive packaging processes.
- Case Example: A chemical plant in Germany integrated IC200ALG327H to monitor reactor pressure, achieving 99.8% system uptime.
Competitive Comparison
Compared to previous iterations:
- IC200ALG327H offers 2x faster sampling rates and 2x better accuracy.
- It supports 30% more sensor types without external modules.
- Its compact design reduces space requirements by 15%.
Selection Recommendations
- Signal Requirements: Opt for 16 AI/16 AO configuration if high-density analog channels are needed.
- Sensor Compatibility: Verify support for your specific sensor type (e.g., J/K thermocouple).
- System Expansion: Ensure your PLC rack has available slots for future module additions.
- Long-Term Cost: Invest in IC200ALG327H for reduced maintenance costs and extended lifecycle.
Precautions
- Installation: Follow ESD protection protocols during handling.
- Cabling: Use twisted-pair shielded cables for analog signal integrity.
- Firmware Updates: Regularly update firmware via GE Fanuc’s Proficy software.
- Environmental Conditions: Operate within -40°C to 70°C for optimal performance.
