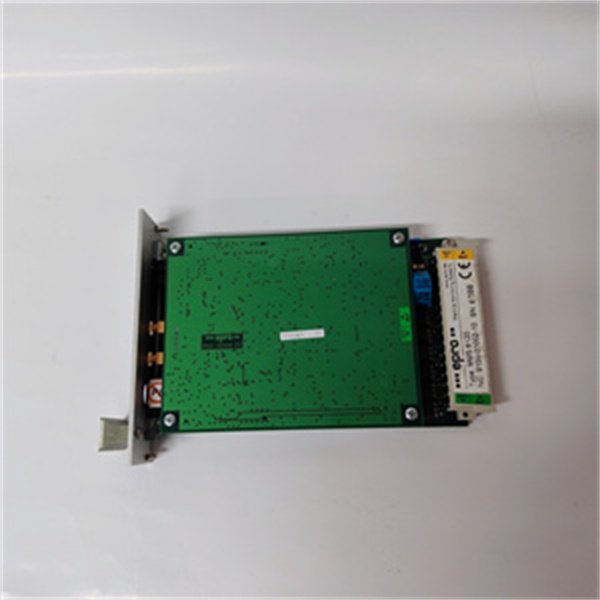

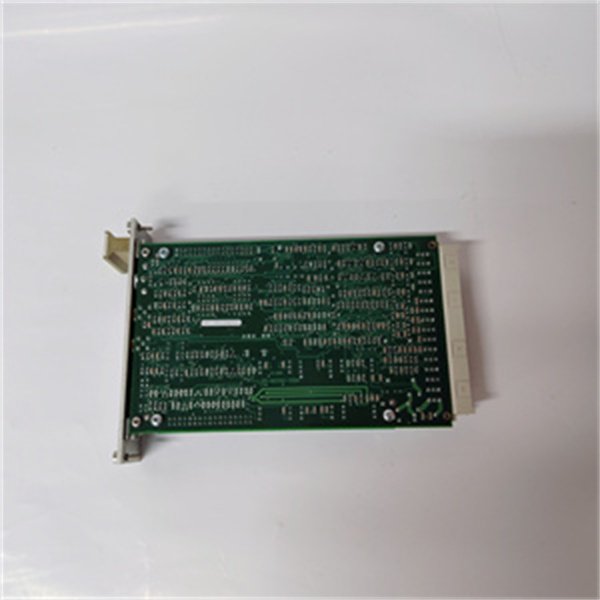

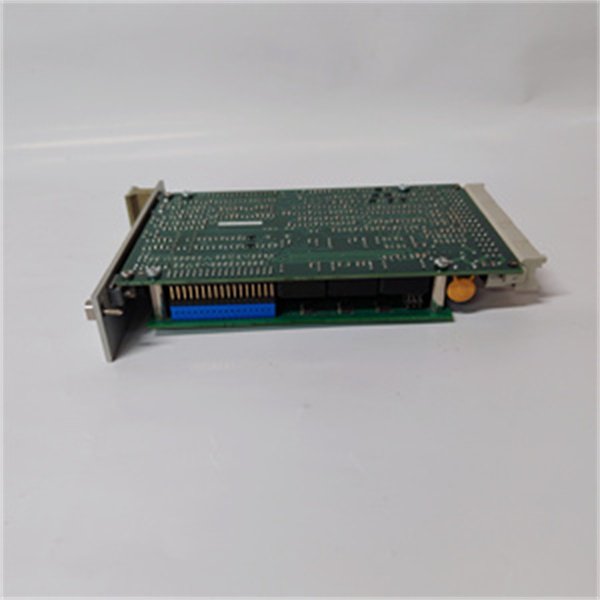

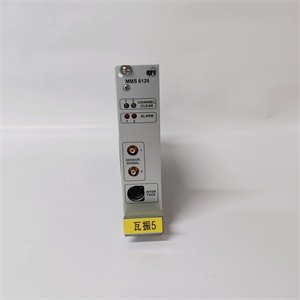

Epro MMS6120-9100-00002-10 Machinery Protection System Controller

The EPRO MMS6120-9100-00002-10 is a centralized machinery protection system controller developed by EPRO (now integrated into Siemens Energy), engineered to monitor, analyze, and protect high-value rotating equipment in industries where unplanned downtime carries massive costs—from power plant turbines to offshore oil rig compressors. Unlike standalone transmitters (e.g., EPRO MMS3120), the EPRO MMS6120-9100-00002-10 acts as a “central brain,” aggregating data from 8 analog and 4 digital inputs to deliver real-time health insights and automated safety actions.

As a flagship model in EPRO’s MMS6000 series, the EPRO MMS6120-9100-00002-10 excels in safety-critical applications. For example, a nuclear power plant uses the EPRO MMS6120-9100-00002-10 to monitor a reactor coolant pump: it collects data from EPRO PR9376 eddy current sensors (tracking shaft vibration) and temperature probes, runs FFT analysis to detect early bearing wear, and triggers a shutdown if vibration exceeds 300 μm—preventing catastrophic pump failure. Its SIL 2 certification ensures compliance with strict safety standards, while its redundant power supply guarantees operation even during power fluctuations.

Whether deployed in control rooms or equipment skids (non-hazardous zones), the EPRO MMS6120-9100-00002-10 combines advanced diagnostics with user-friendly operation, making it indispensable for teams tasked with safeguarding critical machinery.

Detailed parameter table

Core advantages and technical highlights

SIL 2 Certification for Safety-Critical Applications: The EPRO MMS6120-9100-00002-10 is SIL 2 certified per IEC 61508—ensuring it meets the highest safety standards for protecting equipment in power, oil & gas, and nuclear industries. A natural gas pipeline operator uses the EPRO MMS6120-9100-00002-10 to monitor a compression station’s main turbine: if shaft vibration exceeds the critical threshold (250 μm), the controller’s SIL-compliant shutdown relay activates within 100 ms, stopping the turbine before damage occurs. This certification eliminates the need for additional safety layers, reducing system complexity and cost by 25% compared to non-SIL controllers.

Advanced FFT Diagnostics for Early Fault Detection: The EPRO MMS6120-9100-00002-10 includes built-in FFT analysis (0.1 Hz–10 kHz) and trend logging—enabling detection of subtle machinery defects (e.g., gear tooth wear, bearing inner race damage) that basic transmitters miss. A wind farm uses the controller to monitor 8 wind turbine gearboxes: FFT data reveals a 12 Hz frequency spike (indicative of gear wear) 60 days before the gearbox would fail. Maintenance teams replace the gearbox during a scheduled outage, avoiding a $200k unplanned repair and 2 weeks of lost energy production. This predictive capability reduces maintenance costs by 40% annually.

Redundant Power & Communication for Maximum Uptime: The EPRO MMS6120-9100-00002-10 features redundant 24 VDC/AC power inputs and dual communication ports (Ethernet + RS-485)—ensuring operation even if one power source or communication link fails. A coal-fired power plant relies on the controller to monitor a boiler feedwater pump: during a temporary AC power dip, the controller switches to DC backup power (seamless transition, no data loss), while its Modbus TCP port maintains communication with the plant’s DCS. This redundancy ensures 99.99% uptime, critical for power plants where controller failure could trigger a unit shutdown.

Centralized Monitoring for Multi-Sensor Integration: The EPRO MMS6120-9100-00002-10’s 8 analog inputs let users monitor multiple parameters (vibration, position, temperature) from a single device—eliminating the need for 5+ standalone transmitters. A chemical plant uses the controller to monitor a reactor agitator: it integrates data from 2 EPRO PR9376 vibration sensors, 2 temperature probes, 1 speed sensor, and 1 pressure sensor. The controller’s touchscreen display provides a unified view of agitator health, while its web interface lets engineers access data remotely. This centralization reduces panel space by 60% and simplifies calibration (done once for all inputs).

Typical application scenarios

In power generation, a 1,000 MW coal-fired plant uses the EPRO MMS6120-9100-00002-10 to monitor its main steam turbine—critical to the plant’s power output. The controller connects to 4 EPRO PR9376 eddy current sensors (tracking radial vibration and axial position), 2 temperature sensors (bearing temp), and 1 speed sensor. It runs FFT analysis every 5 minutes: one day, it detects a 25 μm increase in vibration at 1x shaft speed (indicative of unbalance). The EPRO MMS6120-9100-00002-10 triggers a “warning” alarm (local LED + DCS alert) and logs the trend. Maintenance teams balance the turbine during a 4-hour scheduled outage, avoiding a potential turbine seizure that would cost $1.5M in repairs and 72 hours of lost generation.

In offshore oil & gas, an FPSO (Floating Production, Storage and Offloading) vessel uses the EPRO MMS6120-9100-00002-10 to monitor 2 gas compressors. The controller’s redundant power supply (24 VDC from two separate ship batteries) ensures operation during rough seas, while its ATEX Zone 2 certification makes it safe for use near flammable gas. It collects data from EPRO PR9268 vibration sensors and transmits it to the vessel’s DCS via Profinet. When a compressor’s bearing temperature rises to 120 °C (critical threshold), the EPRO MMS6120-9100-00002-10 activates a shutdown relay, stopping the compressor and preventing a fire risk—critical for the confined, high-risk FPSO environment.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing EPRO MMS6120-9100-00002-10, ensure the 19-inch rack has 3U height and meets -10 °C to +55 °C operating temperature. Wear ESD wristbands and use a torque wrench to secure the controller to the rack (4.5 N·m torque). Connect redundant power supplies (24 VDC or 110/230 VAC)—use separate cable runs for each supply to avoid single points of failure. Wire sensors to analog/digital inputs (follow EPRO’s color-coded pinout: red = +, black = –) and connect outputs to DCS/relays. Ground the controller’s chassis to a dedicated earth terminal (≤ 1 Ω resistance) to reduce noise.

Maintenance suggestions: Calibrate EPRO MMS6120-9100-00002-10 annually using EPRO’s MMS6000 Calibration Kit—verify input accuracy (±0.1% FS) and test relay response times. Inspect monthly: clean the touchscreen with a microfiber cloth, check power supply LEDs (green = normal, red = fault), and verify communication links (Ethernet/RS-485). If FFT data shows abnormal trends, use the MMS6000 Software Suite to diagnose issues (e.g., unbalance vs. misalignment). Replace the internal backup battery (CR2032) every 2 years to preserve alarm logs during power outages. Store spare parts (e.g., power supply modules) in a dry, -20 °C to +50 °C environment.
