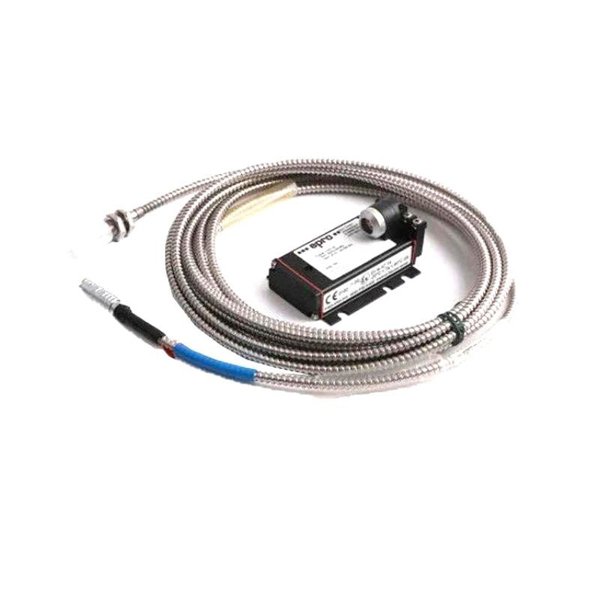

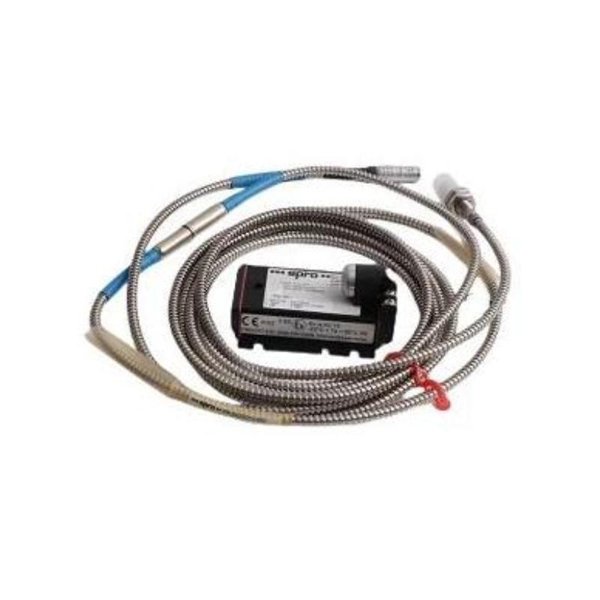

The Epro PR6424/106-000 is a high-precision eddy current sensor designed for contactless measurement of displacement, position, and proximity in industrial applications. With its 16mm sensor head diameter, it delivers high accuracy and reliability in measuring small displacements in challenging environments. The sensor is ideal for monitoring rotating machinery, bearings, and for detecting any axial and radial displacement in a variety of engineering processes.

Eddy current sensors like the PR6424/106-000 operate by generating a magnetic field and measuring the change in the inductance caused by the movement of a conductive target. This technology provides extremely precise measurements and is insensitive to temperature fluctuations, vibrations, and other environmental factors, making it ideal for use in harsh industrial conditions.

Technical Specifications

Product Applications

The Epro PR6424/106-000 16mm Eddy Current Sensor is utilized in a wide range of applications across industries requiring precise and reliable displacement measurement:

• Rotating Machinery Monitoring: The sensor is widely used in monitoring the displacement of rotating parts like motors, turbines, and shafts. It can detect even the smallest displacements to ensure optimal machine performance.

• Bearings and Vibrations Measurement: Ideal for bearing health monitoring, the sensor can detect early signs of wear and tear by measuring the axial and radial displacement of bearings.

• Proximity Detection: The sensor can be employed for proximity sensing, ensuring that components operate within designated tolerances in automated processes.

• Position Sensing in Robotics: In robotics, the sensor measures small displacements with high precision, aiding in the fine positioning of robotic arms.

• Precision Measurement in Manufacturing: It is used in manufacturing processes where precise positioning and displacement measurements are critical, ensuring product quality and process stability.

Its high accuracy, reliability, and adaptability to various industrial systems make it an essential tool for applications in machinery, automation, and quality control.

Product Advantages

• High Precision: With a resolution of 0.1 µm and an accuracy of ±0.1% of full scale, the PR6424/106-000 offers extremely precise measurements, essential for high-precision applications.

• Wide Measurement Range: The sensor can measure displacements in the range of 0 to 10 mm, making it versatile for a range of applications.

• Robust Design: Housed in stainless steel, the PR6424/106-000 is designed for use in harsh environments, providing durability and long-term performance.

• Versatile Output Options: The sensor supports both analog and digital output, making it flexible for different industrial control systems and processes.

• Wide Operating Temperature Range: The sensor operates in temperatures from -20°C to 85°C, making it suitable for use in a variety of industrial environments, from chillers to heat exchangers.

• Insensitive to Environmental Factors: Unlike traditional sensors, the PR6424/106-000 is unaffected by external temperature variations, vibrations, and magnetic fields, ensuring accurate measurements under challenging conditions.

FAQ

1. What is the measurement range of the Epro PR6424/106-000 sensor?

The measurement range of the Epro PR6424/106-000 is from 0 to 10 mm, making it suitable for measuring small displacements in various applications.

2. What type of output does the PR6424/106-000 sensor provide?

The sensor offers both analog and digital outputs, providing flexibility for integration into different control and monitoring systems.

3. What is the resolution of the PR6424/106-000 sensor?

The PR6424/106-000 has a resolution of 0.1 µm, ensuring high-precision measurements even for small displacements.

4. What is the accuracy of the PR6424/106-000 sensor?

The sensor has an accuracy of ±0.1% of full scale, ensuring highly reliable measurements in industrial settings.

5. What temperature range can the PR6424/106-000 operate in?

The PR6424/106-000 operates within a temperature range of -20°C to 85°C, making it suitable for a variety of industrial applications.

6. What is the housing material of the PR6424/106-000 sensor?

The sensor is housed in stainless steel, providing robust protection and durability in harsh environments.

7. How does the PR6424/106-000 sensor work?

The sensor operates on the principle of eddy current measurement, generating a magnetic field and detecting changes in inductance caused by the displacement of a conductive target.

8. What is the supply voltage for the PR6424/106-000 sensor?

The PR6424/106-000 requires a supply voltage between 15-30 VDC, which is standard for most industrial sensors.

9. What industries can benefit from the PR6424/106-000 sensor?

The PR6424/106-000 is ideal for industries such as manufacturing, energy, automation, robotics, and process control, where precise displacement measurements are critical.

10. What is the connection type for the PR6424/106-000 sensor?

The sensor features an M12 connector, ensuring easy integration with various industrial control systems.
