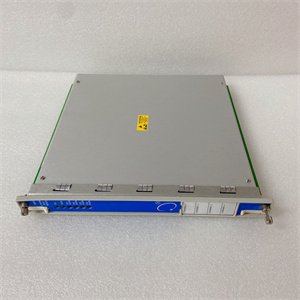

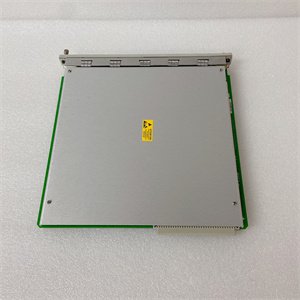

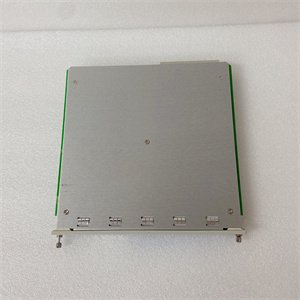

Bently Nevada 3500/32 125712-01 Vibration monitor module

The Bently Nevada 3500/32 125712–01 is a high–performance vibration monitor module, a key component of the 3500 machinery protection system. It is specifically designed to continuously monitor vibration levels in rotating machinery, providing critical data for early fault detection and prevention.

This 4–channel module excels at processing signals from accelerometers and velocity sensors, converting raw vibration data into standardized 4–20mA outputs. The Bently Nevada 3500/32 125712–01 integrates seamlessly with other 3500 series components, forming a comprehensive monitoring solution. In industrial automation systems, it acts as a vital safeguard, enabling operators to identify issues like bearing wear, rotor imbalance, and misalignment before they lead to costly machinery failures.

Detailed parameter table

Core advantages and technical highlights

Multi–channel monitoring efficiency: The 3500/32 125712–01 features 4 independent channels, allowing simultaneous monitoring of multiple machine points such as motor bearings, pump casings, or turbine housings. Each channel operates with a 5kHz sampling rate, ensuring no critical vibration events are missed. This capability is especially valuable in complex machinery trains where multiple components need synchronized monitoring.

Broad frequency response: With a frequency range of 10Hz–1kHz, the 3500/32 125712–01 accurately captures both low–frequency vibrations (indicative of imbalance or misalignment) and high–frequency oscillations (signaling bearing defects). This versatility eliminates the need for multiple specialized monitors, simplifying system design and reducing costs.

User–configurable alarms: Operators can set custom alarm thresholds for each channel of the 3500/32 125712–01, including warning and danger levels. The module provides both relay and analog alarm outputs, enabling integration with shutdown systems or visual/audio indicators. This flexibility ensures the monitor adapts to specific machinery protection requirements, from critical turbines to auxiliary pumps.

Rugged industrial design: Built to withstand harsh environments, the 3500/32 125712–01 operates reliably in temperatures from–40°C to + 70°C and resists 10g vibrations. Its robust construction ensures consistent performance in applications like offshore platforms, steel mills, and refineries, where environmental conditions are extreme.

Typical application scenarios

In oil and gas production facilities, the 3500/32 125712–01 monitors reciprocating compressors. By tracking vibration on crankshaft bearings and cylinder heads, it detects early signs of rod wear or valve issues. Its 4–channel design allows simultaneous monitoring of multiple compressor stages, providing a comprehensive view of machine health and preventing unplanned shutdowns in critical pipeline operations.

Within power generation plants, the 3500/32 125712–01 is installed on boiler feed pumps. It continuously measures vibration levels on motor and pump bearings, identifying cavitation or impeller imbalance. By integrating with the plant’s DCS via 4–20mA outputs, it enables operators to correlate vibration data with process parameters, optimizing pump performance and extending service life.

In automotive manufacturing, the 3500/32 125712–01 protects robotic assembly line motors. Its high–frequency response detects bearing degradation in servo motors, allowing preventive maintenance during scheduled downtime. The module’s rugged design withstands the factory environment’s mechanical vibrations and temperature fluctuations, ensuring reliable operation in 24/7 production settings.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the 3500/32 125712–01, ensure the 3500 rack is powered off and properly grounded. Verify the installation environment meets temperature and humidity specifications. Required tools include a Phillips screwdriver, torque wrench (set to 0.5–0.7 Nm), and anti–static wrist strap. Inspect the module for physical damage and clean BNC connectors with isopropyl alcohol. Align the module with rack guides and gently insert until the backplane connector engages, then secure with mounting screws.

Maintenance suggestions: Perform monthly visual inspections of the 3500/32 125712–01 to check for loose connections or dust accumulation. Clean the module surface with a dry cloth. Calibrate annually using Bently Nevada’s calibration kit to verify accuracy. If erratic readings occur, check sensor connections and cable integrity—replace damaged 149992–01 cables with genuine parts. For fault codes, refer to the user manual for troubleshooting steps. Keep a maintenance log recording calibration results, alarms, and any repairs to track module performance over time.
