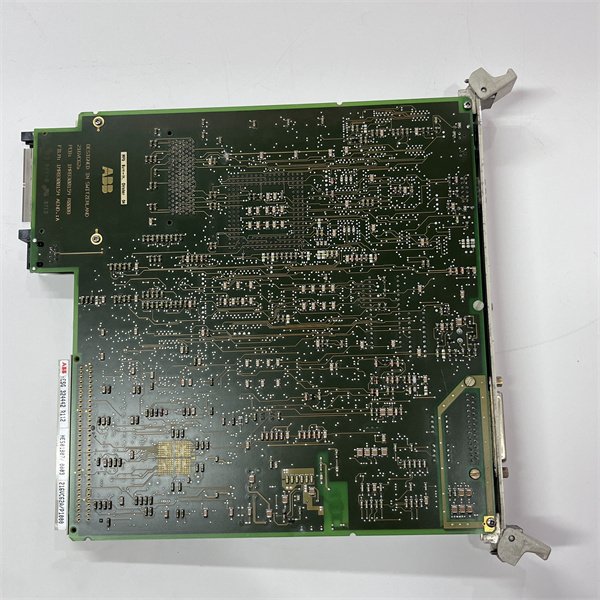

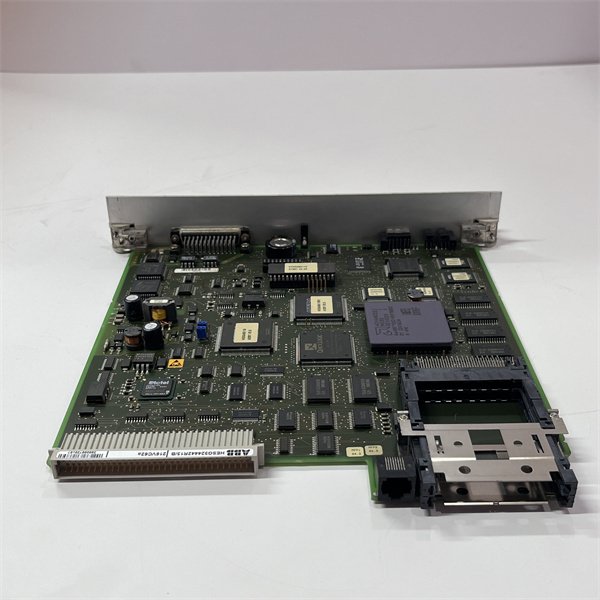

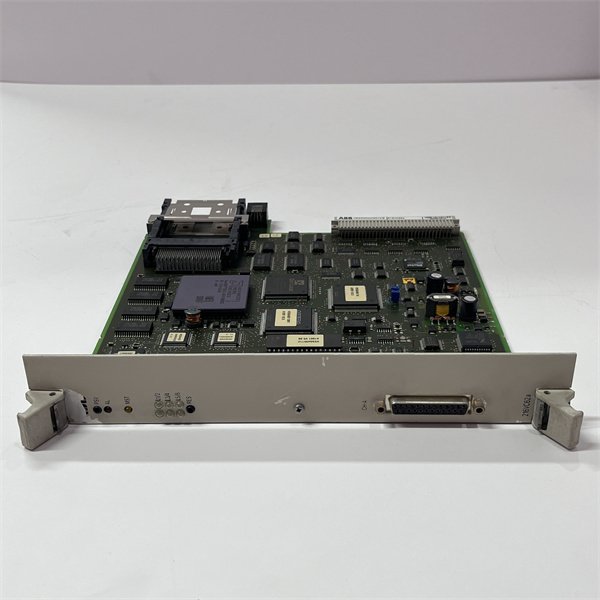

ABB 216VC62a P1000 HESG324442R112 Variable frequency drive power module

The ABB 216VC62a P1000 HESG324442R112 is a high-performance power module designed for integration into ABB’s P1000 series variable frequency drives, serving as the core power conversion component for motor control applications. As a critical element in ABB’s drive technology portfolio, ABB 216VC62a P1000 HESG324442R112 converts AC line power into variable voltage and frequency output, enabling precise speed and torque control of 3-phase induction motors up to 15 kW (20 HP).

Engineered for industrial reliability, ABB 216VC62a P1000 HESG324442R112 combines robust power electronics with advanced thermal management, making it suitable for a wide range of machinery—from conveyor systems to pumps and fans. Its compatibility with ABB’s drive controllers ensures seamless integration into both new installations and retrofits, providing a cost-effective solution for improving motor efficiency and process control. Whether deployed in manufacturing, HVAC, or water treatment, ABB 216VC62a P1000 HESG324442R112 delivers consistent performance as the power backbone of motor drive systems.

Detailed parameter table

Core advantages and technical highlights

Flexible motor control: ABB 216VC62a P1000 HESG324442R112 supports both V/f and sensorless vector control modes, adapting to diverse application requirements. In material handling, sensorless vector control ensures precise torque regulation when starting loaded conveyors, preventing belt slippage. For fan applications, V/f control simplifies setup while maintaining energy efficiency. This versatility eliminates the need for multiple drive types, reducing inventory costs and simplifying maintenance.

High-efficiency power conversion: With efficiency exceeding 97% at full load, ABB 216VC62a P1000 HESG324442R112 minimizes energy loss during power conversion. In a 15 kW pump application operating 8,000 hours annually, this efficiency translates to approximately 1,200 kWh in energy savings compared to standard drives—equivalent to reducing annual operating costs by (140 (based on )0.12/kWh). The module’s low harmonic distortion (<5% at rated load) also reduces stress on electrical systems, extending the lifespan of transformers and wiring.

Robust thermal and overload protection: ABB 216VC62a P1000 HESG324442R112 features advanced thermal management with a built-in heatsink and temperature monitoring, preventing overheating even in enclosed cabinets. It tolerates 150% overload for 1 minute, accommodating temporary motor stress during startup or transient loads—critical for applications like mixer motors that experience periodic heavy loads. This rugged design reduces unplanned downtime caused by thermal shutdowns or component failure.

Typical application scenarios

In a food and beverage bottling plant, ABB 216VC62a P1000 HESG324442R112 powers the 15 kW conveyor motors that transport bottles through filling and capping stations. Its sensorless vector control ensures smooth acceleration, preventing bottle spillage during startup, while precise speed regulation (±0.5%) maintains consistent spacing between bottles—essential for accurate filling. The module’s ability to operate in ambient temperatures up to 50°C allows installation in warm production areas without additional cooling, saving cabinet space and installation costs.

In a commercial HVAC system, ABB 216VC62a P1000 HESG324442R112 controls a 12 kW centrifugal fan motor, adjusting speed based on building temperature demands. By varying fan speed instead of using dampers, the drive reduces energy consumption by up to 50% compared to constant-speed operation. The module’s compatibility with building management systems (via ABB’s drive controller) enables remote monitoring and scheduling, optimizing comfort while minimizing energy use during off-peak hours.

Installation, commissioning and maintenance instructions

Installation preparation: Mount ABB 216VC62a P1000 HESG324442R112 on a flat, metallic surface using the provided flange, ensuring the heatsink has unobstructed airflow (minimum 300 mm clearance). Connect 3-phase input power (380-480 V AC) via shielded cables (4 mm²) to the L1/L2/L3 terminals, with a dedicated circuit breaker (50 A) for protection. Motor connections (U/V/W) require 4 mm² shielded cable, with shields grounded at both ends. Use torque wrench set to 2.5 Nm for terminal connections. Ensure the environment is free from conductive dust and corrosive gases. Power off all systems during installation.

Maintenance suggestions: Inspect ABB 216VC62a P1000 HESG324442R112 quarterly for dust accumulation on the heatsink, cleaning with compressed air (max 5 bar) if needed. Check input/output connections for tightness and signs of overheating (discoloration). Monitor drive temperatures during operation—consistent readings above 45°C indicate insufficient cooling. Replace the module if fault codes persist (e.g., overcurrent, overvoltage) despite wiring checks. Use only ABB-certified replacement parts to maintain performance and safety certifications.
