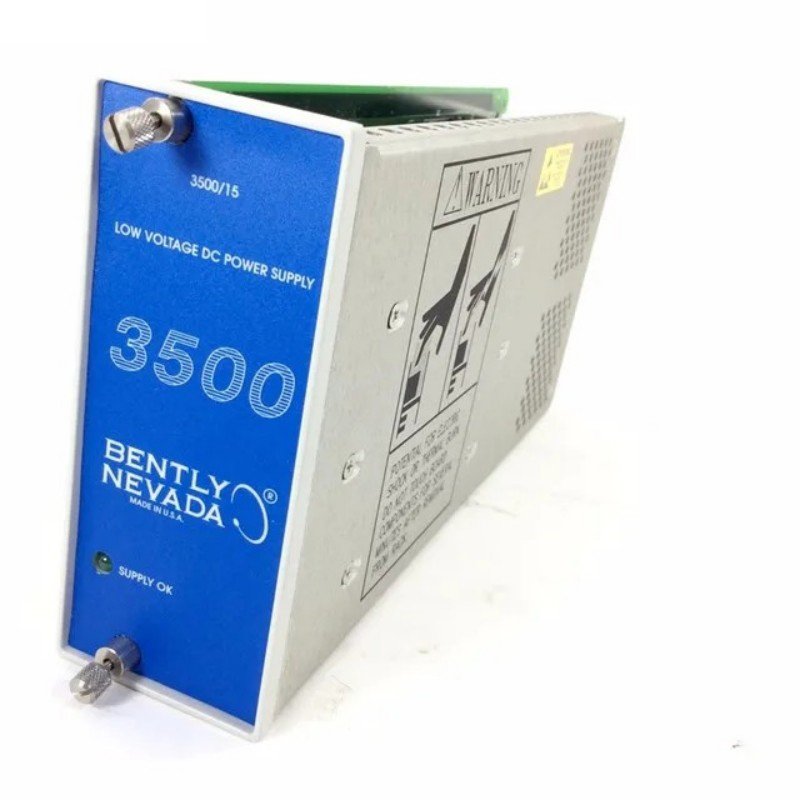

Bently Nevada 3500/15 106M1079-01+106M1081-01 Power Supply Module
Manufacturer: Bently Nevada
Product Number: 3500/15 (106M1079-01 + 106M1081-01)
Category: Power Supply Module
Series: 3500 Machinery Protection System
Application: Provides necessary DC operating power for the entire rack ensuring stable operation of machinery protection systems
Product Description
The Bently Nevada 3500/15 Power Supply Module with part numbers 106M1079-01 and 106M1081-01 is a critical component of the 3500 Machinery Protection System. It provides the necessary DC operating power for the entire rack and ensures stable and reliable operation of all installed monitoring and control modules. Designed for redundancy and high reliability, the 3500/15 supports multiple power supply configurations to guarantee uninterrupted system functionality in demanding industrial environments.
Main Features
-
Provides DC operating power for the entire 3500 rack
-
Available in multiple input voltage options (AC and DC versions)
-
Hot-swappable design allowing replacement without interrupting rack operation
-
Redundant power supply configuration for increased system reliability
-
Built-in protection features against overvoltage, overcurrent, and thermal stress
-
LED status indicators for quick power supply health monitoring
-
Fully compatible with all Bently Nevada 3500 rack-based modules
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120.7 × 50.8 × 251.5 mm |
| Weight | 1.39 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (a Baker Hughes company) |
| Model Number | 3500/15 (106M1079-01, 106M1081-01) |
| Product Type | Power Supply Module |
| Mounting | 3500 rack slot, rear-loading design |
| Operating Temp. | 0°C to +65°C |
| Storage Temp. | -40°C to +85°C |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 90–264 VAC (106M1079-01), 24 VDC (106M1081-01) |
| Frequency | 47–63 Hz (AC version) |
| Output Voltage | +24 VDC regulated (to rack) |
| Power Capacity | 150 W max |
| Efficiency | >85% |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 5–95% RH (non-condensing) |
| Vibration | 5–200 Hz, 1.5 mm displacement, 2G |
| Shock Resistance | 15G, 11 ms |
| Protection Class | IP20 |
Industry Applications
The Bently Nevada 3500/15 Power Supply Module is widely applied in:
-
Oil & Gas: Continuous monitoring of compressors, pumps, and turbines
-
Power Generation: Turbine protection and generator monitoring
-
Petrochemical and Refining: Equipment safety and plant-wide control systems
-
Steel and Manufacturing: Critical rotating equipment protection
-
Marine and Offshore: Machinery condition monitoring in harsh environments
-
Pharmaceutical: High-reliability monitoring in production facilities
