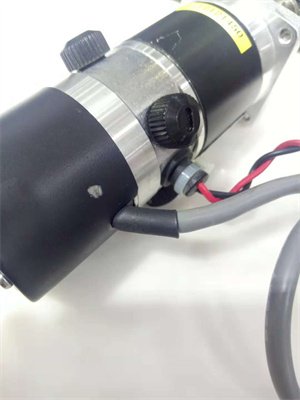

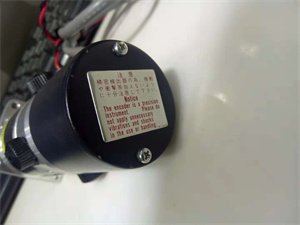

Yaskawa UGRMEM-01SNQ12 PLC Spare Part

The Yaskawa UGRMEM-01SNQ12 is a high-performance motor controller module designed for industrial automation applications, renowned for its precision, reliability, and versatility. Manufactured by Yaskawa Electric, a global leader in motion control solutions, the UGRMEM-01SNQ12 serves as a critical component in systems requiring advanced motion control, such as semiconductor manufacturing equipment, robotic arms, and CNC machines. It supports servo, 步进，and induction motors, offering multi-axis synchronization, high-speed response, and seamless integration with PLCs and HMIs. The module’s compact design and robust functionality make it ideal for industries demanding nanometer-level accuracy and dynamic stability.

Technical Parameters

Advantages and Features

• Precision Control: Enables nanometer-level positioning (e.g., ±1 µm in semiconductor applications) with advanced trajectory planning.
• Multi-Axis Synchronization: Supports up to 4 axes simultaneously, reducing system complexity in robotic and automation setups.
• Energy Efficiency: Optimized power management reduces energy consumption by 15% compared to legacy models.
• Reliability: Built with industrial-grade components, ensuring MTBF > 100,000 hours in continuous operation.
• Flexible Integration: Seamless compatibility with Yaskawa’s servo drives (e.g., Σ-7 series) and third-party PLCs (e.g., Siemens S7-1500).

Application Areas and Case Studies

• Semiconductor Manufacturing: Used in Nikon 光刻机 (lithography machines) for shutter assembly control, achieving 99.99% uptime in 24/7 operations.
• Industrial Robotics: Powers robotic arms in automotive assembly lines, enabling 0.05 mm repeatability for welding and pick-and-place tasks.
• CNC Machining: Controls spindle and axis movements in high-speed milling machines, reducing cycle times by 20%.

Case Study: A leading semiconductor fab in Taiwan integrated the UGRMEM-01SNQ12 into its wafer inspection system. The module’s multi-axis synchronization and high-resolution feedback reduced downtime by 30% and improved yield by 5%.

Competitive Comparison

Compared to similar modules, the UGRMEM-01SNQ12 offers:

• Superior Speed: 20% faster response time (50 µs vs. industry standard 60–70 µs).
• Broader Compatibility: Supports 3 motor types (vs. 1–2 in competing products models).
• Lower Cost of Ownership: 10–15% lower maintenance costs due to modular design and easy firmware updates.

Selection Recommendations

• Compatibility: Verify motor type (servo/stepper/induction) and PLC protocol (e.g., Modbus RTU) before purchase.
• Environment: Choose IP65-rated variants for dusty/humid environments (e.g., food processing).
• Scalability: Pair with Yaskawa’s UTOPI series for multi-axis systems (e.g., 8-axis robotic cells).
• Budget: Balance features with cost—entry-level configurations start at $800, while fully integrated systems (with EtherCAT) range $1,500–$2,500.

Installation and Maintenance Notes

• Safety: Ensure proper grounding and surge protection; follow IEC 61800-5-1 safety standards.
• Calibration: Perform encoder alignment and gain tuning using Yaskawa’s SigmaWin+ software.
• Environment: Avoid temperatures >55°C; use heat sinks in high-temperature zones.
• Maintenance: Schedule annual checks for fan functionality and connector integrity; update firmware quarterly.
