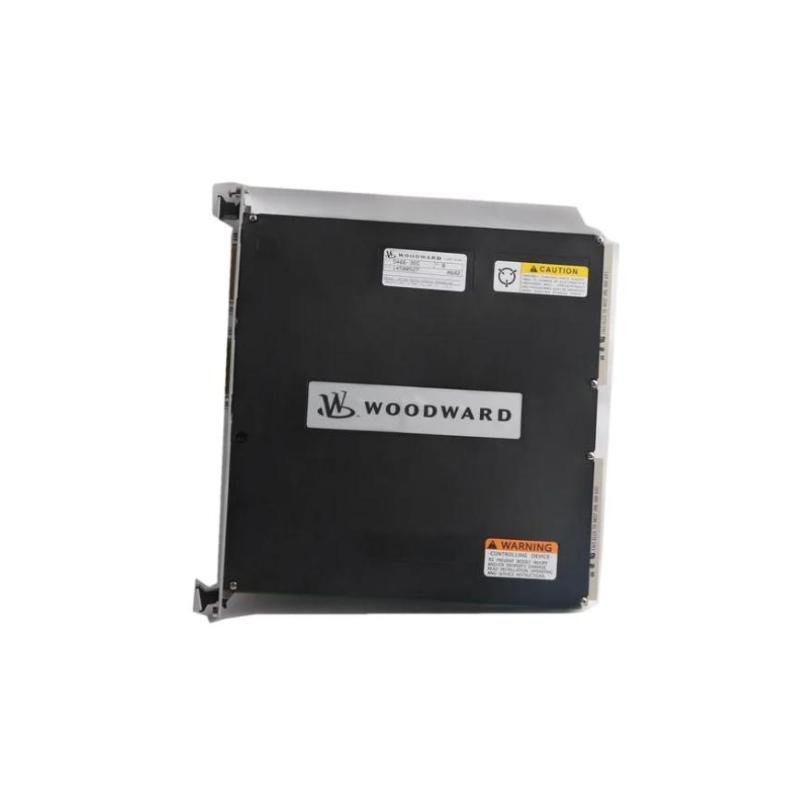

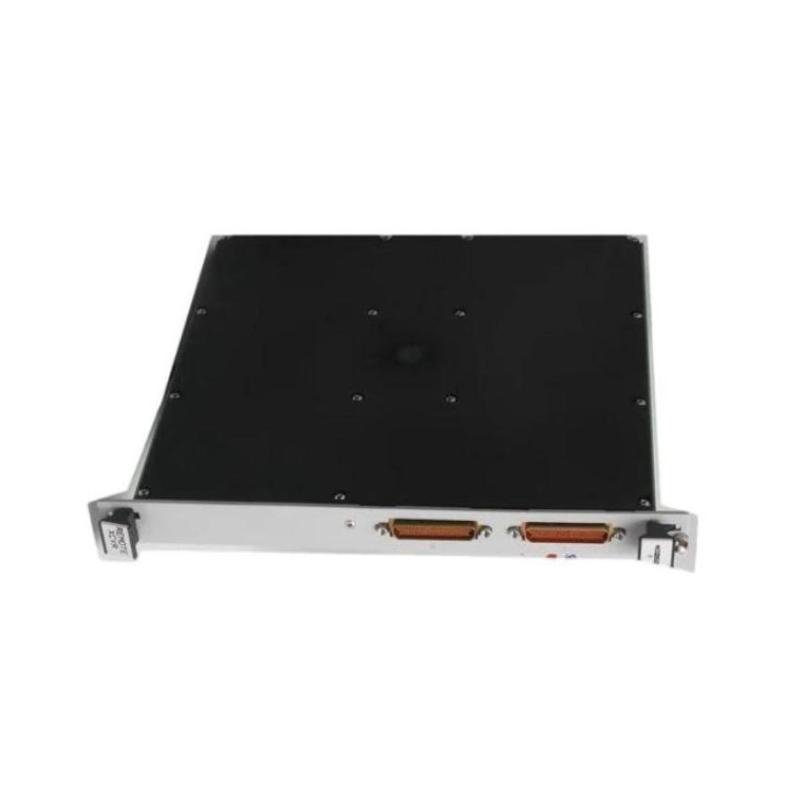

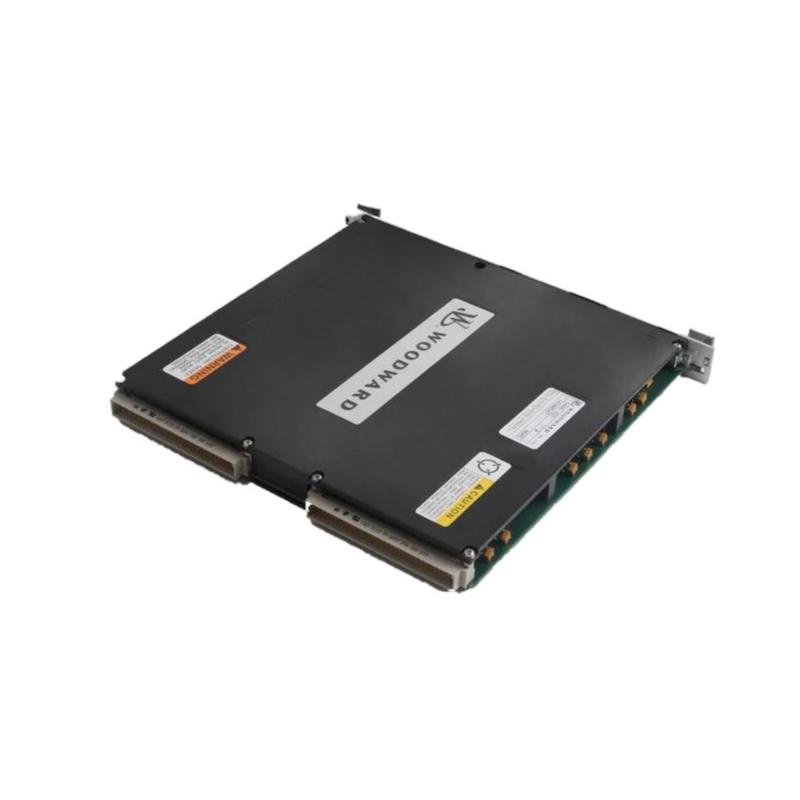

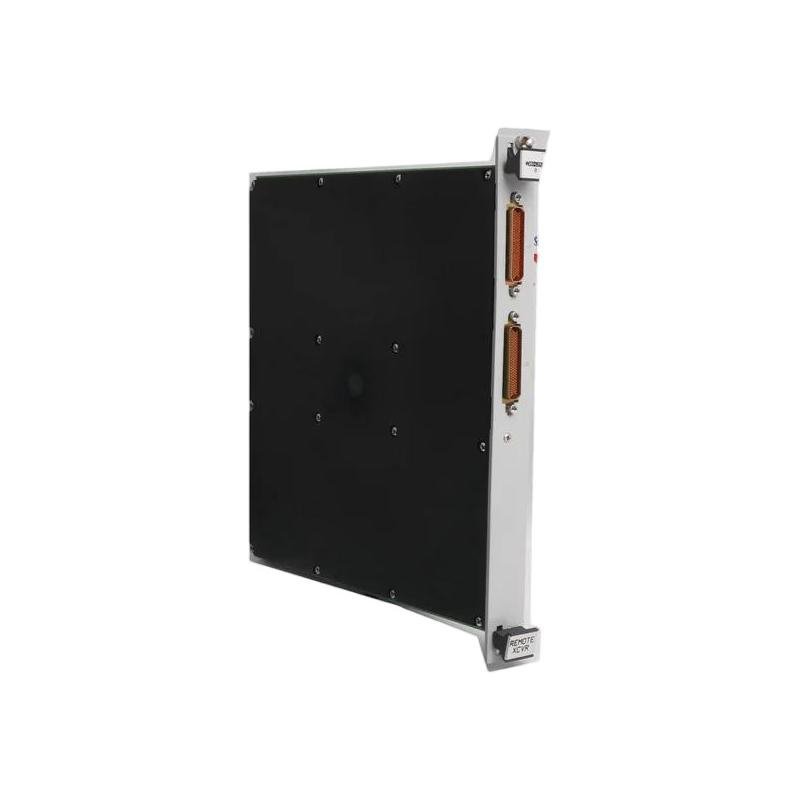

Woodward 5466-355 Remote Chassis Transceiver
Manufacturer: Woodward
Product Number: 5466-355
Category: Remote Chassis Transceiver / Communication Module
Application: Enables reliable data transmission between central controller and remote I/O chassis within Woodward control systems
Function: High-integrity communication bridge
Product Description
The Woodward 5466-355 Remote Chassis Transceiver is an essential communication module designed to enable reliable data transmission between a central controller and remote I/O chassis within Woodward control systems. It acts as a high-integrity communication link, ensuring synchronization and real-time control of distributed I/O points. Engineered for use in demanding industrial environments, the 5466-355 supports extended distances and provides fault-tolerant, deterministic operation.
Key Features
-
High-Speed Communication–Ensures rapid, deterministic data transfer between control chassis and remote I/O.
-
System Synchronization–Maintains timing accuracy across distributed modules.
-
Robust Construction–Designed for operation in harsh industrial environments.
-
Error Detection and Correction–Built-in diagnostics and redundancy for enhanced reliability.
-
Easy Integration–Seamlessly fits within Woodward control architectures.
-
Support for Remote Expansion–Extends control capabilities without additional controller hardware.
-
DIN Rail Mountable–Compact design suitable for control cabinets.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 245 × 25 × 261 mm |
| Weight | 0.86 kg |
Communication Specifications
| Item | Specification |
|---|---|
| Communication Type | Proprietary high-speed serial bus |
| Distance Supported | Up to 300 meters (typical) |
| Supported Topologies | Point-to-point |
| Synchronization | Deterministic timing support |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Vibration/ Shock | Meets industrial IEC standards |
| Protection Rating | IP20 |
Power Requirements
| Item | Specification |
|---|---|
| Power Input | 24 V DC |
| Power Consumption | Approx. 8 W |
Industry Applications
-
Power Generation–Extends I/O capabilities for turbine and engine control systems.
-
Oil & Gas–Provides reliable field I/O communication over extended distances.
-
Industrial Automation–Facilitates distributed control in large plants or facilities.
-
Marine and Transportation–Used in decentralized control architectures for safety and monitoring.
-
Process Control Systems–Enhances scalability and modularity of I/O networks.
The Woodward 5466-355 Remote Chassis Transceiver is a critical component for extending and maintaining high-speed, reliable communication in distributed control environments. With its robust design, precise synchronization, and seamless integration into Woodward systems, it offers scalable expansion for modern industrial automation infrastructures.
