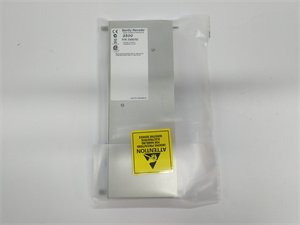

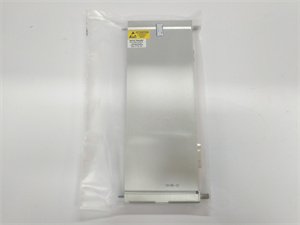

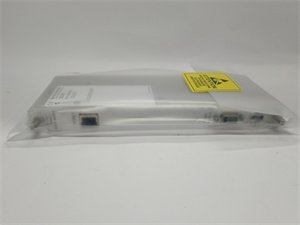

Bently Nevada 136188-02 Ethernet/RS485 Modbus I/O Module
Manufacturer: Bently Nevada
Product Number: 136188-02
Category: Ethernet/RS485 Modbus I/O Module
System Compatibility: 3500/92 Communication Gateway, Bently machinery health monitoring systems
Application: Enables seamless data exchange between rotating equipment health data and control systems via Ethernet/RS485 Modbus communication
Product Description
The Bently Nevada 136188-02 is a high-performance Ethernet/RS485 Modbus I/O module designed for integration with the 3500/92 Communication Gateway in Bently’s machinery health monitoring systems. It enables seamless data exchange between rotating equipment (e.g., turbines, compressors) and process control systems, supporting real-time monitoring, predictive maintenance, and system optimization. The module combines Ethernet TCP/IP and serial (RS232/RS422/RS485) communication protocols, ensuring compatibility with diverse automation environments.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 136188-02 |
| Type | Ethernet/RS485 Modbus I/O Module |
| Interface | Ethernet (10Base-T), RS232/RS422/RS485 |
| Power Supply | 24 VDC ±10% |
| Power Consumption | 5.6 W (typical with Modbus RS485) |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 241 mm × 24.4 mm × 99.1 mm (9.50” × 0.96” × 3.90”) |
| Weight | 0.44 kg (0.96 lb) |
| Firmware Upgrade Kit | 126M4118-01 (included) |
Advantages and Features
- Multi-Protocol Connectivity: Supports Ethernet TCP/IP and serial communication, enabling integration with both modern and legacy systems.
- Rugged Design: Withstands extreme temperatures (-30°C to +65°C) and harsh industrial conditions, ensuring reliability in offshore, petrochemical, and power generation settings.
- Flexible Configuration: Configurable Modbus registers allow customization of data mapping for specific application needs.
- Space-Saving: Compact form factor occupies minimal rack space while delivering high-speed data transfer.
Case Study: A U.S. energy plant reduced turbine downtime by 20% by using the 136188-02 to monitor vibration trends and detect bearing wear through real-time Modbus data streaming.
Application Fields and Case Studies
Industries:
- Power generation, oil and gas, manufacturing, and water treatment.
typical application:
- Turbines, pumps, generators, and rotating machinery in critical infrastructure.
Case Study: A European manufacturing facility improved production efficiency by 15% by integrating the module with their PLC system to synchronize machine health data with production schedules.
Competitive Comparison
The Bently Nevada 136188-02 distinguishes itself from alternatives with:
- Dual Communication Support: Simultaneous Ethernet and serial connectivity, eliminating the need for additional adapters.
- Wide Temperature Range: Operates in extreme environments, surpassing standard industrial modules limited to 0°C to +50°C.
- Pre-Integrated Firmware: Includes the 126M4118-01 upgrade kit, reducing setup complexity compared to competitors requiring separate purchases.
Selection Recommendations
- System Requirements: Choose this module if your system requires both Ethernet and serial communication for machinery health monitoring.
- Environment: Opt for it in high-temperature or corrosive environments where durability is critical.
- Compatibility: Ensure compatibility with Bently’s 3500/92 Communication Gateway and existing automation software.
Precautions
- Installation: Install in slot 1 of the 3500 rack to ensure proper grounding and cooling.
- EMI Protection: Use shielded cables for RS485 connections in high-noise environments.
- Firmware Updates: Regularly update firmware using the included kit to maintain optimal performance.
