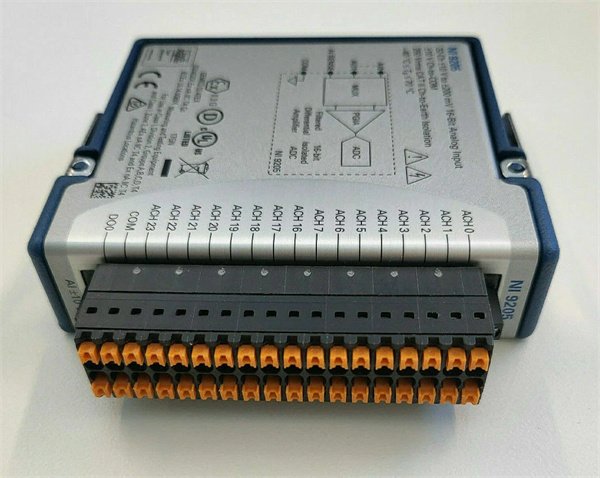

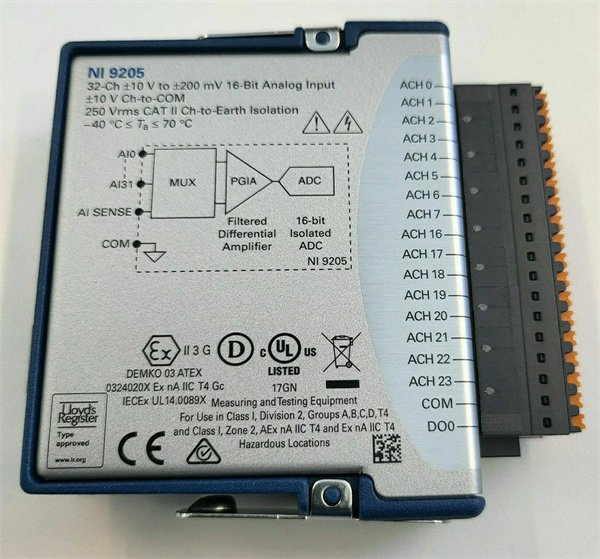

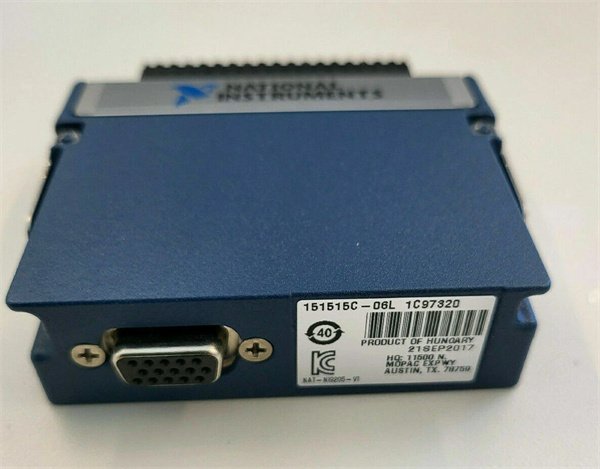

NI NI-9205-779357-01 C Series Voltage Input Module

The NI-9205-779357-01 is a high – performance C Series voltage input module by National Instruments, engineered to meet the demanding requirements of industrial and scientific data acquisition applications. This module is a key component for systems that require accurate measurement of voltage signals in a wide range of environments.

With the ability to handle up to 32 single – ended or 16 differential analog inputs, the NI-9205-779357-01 offers great flexibility in signal connection. Each channel comes with four programmable input ranges, allowing users to adapt to various signal levels, from small – scale sensor outputs to larger industrial voltage signals. The 16 – bit analog – to – digital conversion ensures high – precision measurements, capturing even the subtlest changes in input voltages. When integrated into NI CompactDAQ or CompactRIO systems, the NI-9205-779357-01 forms a robust data acquisition solution that can withstand harsh industrial conditions, such as extreme temperatures and electrical noise.

Detailed parameter table

Core advantages and technical highlights

High – precision measurement capabilities: The 16 – bit resolution of the NI-9205-779357-01 enables extremely accurate voltage measurements. This level of precision is crucial in applications where small signal changes carry significant meaning, like in scientific research or high – end manufacturing processes. For example, in semiconductor testing, where precise voltage measurements are required to determine the quality of components, the module’s 16 – bit resolution can accurately detect minute voltage variations that could affect the performance of the semiconductor devices.

Flexible input range programmability: Offering four different programmable input ranges (-200 mV to 200 mV, -1 V to 1 V, -5 V to 5 V, -10 V to 10 V), the NI-9205-779357-01 can interface with a wide variety of sensors and voltage sources. This flexibility eliminates the need for external signal conditioning in many cases, reducing system complexity and cost. In a smart building automation system, it can easily measure low – voltage signals from temperature sensors (-200 mV range) as well as higher – voltage signals from power monitoring devices (-10 V range), all with the same module.

Robust isolation and protection features: Equipped with 60 VDC channel – to – earth ground isolation and up to 60 V of overvoltage protection between input channels and common, the NI-9205-779357-01 is well – protected against electrical hazards and signal transients. The 1000 Vrms transient overvoltage protection safeguards the module from sudden voltage spikes, which are common in industrial environments. In a factory setting with large motors and frequent power surges, this protection ensures the module continues to operate reliably, minimizing downtime and protecting the integrity of the data being collected.

Typical application scenarios

In industrial automation, the NI-9205-779357-01 plays a vital role in monitoring and controlling manufacturing processes. It can be used to measure the voltage signals from various sensors, such as pressure sensors, flow sensors, and position sensors. For instance, in an automotive assembly line, the module can monitor the voltage outputs of position sensors on robotic arms to ensure accurate part placement. The high – speed 250 kS/s sampling rate allows for real – time monitoring, enabling quick response to any process deviations.

In environmental monitoring, the NI-9205-779357-01 is used to measure voltage signals from sensors deployed in the field. These sensors could be measuring parameters like temperature, humidity, and air quality. For example, in a large – scale agricultural monitoring system, the module can connect to temperature and humidity sensors spread across a farm. The wide operating temperature range of -40 °C to +70 °C ensures that it can function reliably in different environmental conditions, providing accurate data for crop management decisions.

In energy management systems, the module is used to measure voltage signals from power generation and distribution equipment. It can monitor the voltage levels of solar panels, wind turbines, and electrical grids. In a solar power plant, the NI-9205-779357-01 can measure the output voltage of solar panels, helping operators to optimize power generation and detect any faults in the panels or the electrical system.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing the NI-9205-779357-01 module, ensure that the NI CompactDAQ or CompactRIO chassis is powered off. Use electrostatic discharge (ESD) protection equipment, such as an ESD wrist strap, to prevent damage to the module from static electricity. Verify that the chassis has an available slot compatible with the C Series module. Gather the necessary tools, including a screwdriver for securing the module in place. When connecting the 37 – pin D – SUB cable to external devices, make sure the cable is properly shielded to reduce electromagnetic interference.

Maintenance suggestions: Regularly check the connections of the NI-9205-779357-01 module. Inspect the D – SUB connector for any signs of wear, corrosion, or loose connections. Periodically, perform calibration checks using known voltage sources to ensure the accuracy of the module’s measurements. If any issues are detected, such as incorrect readings or intermittent connection problems, first check the software settings and then, if necessary, replace the module. Keep the module in a clean and dry environment, within its specified operating temperature range, to extend its lifespan.

Update the NI – DAQmx driver software regularly to ensure compatibility with the latest versions of the operating system and other software applications. This also helps to improve the performance and stability of the NI-9205-779357-01 module. When replacing the module, make sure to save any important configuration settings and transfer them to the new module.
