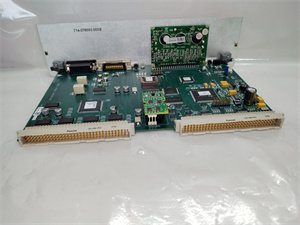

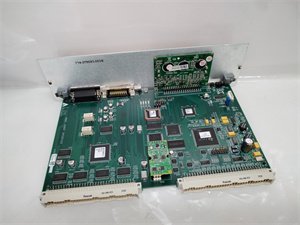

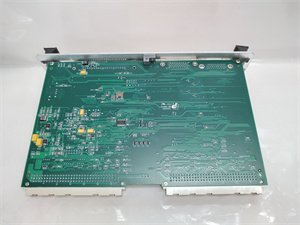

LAM 810-068158-015 Precision Analog I/O Module

LAM 810-068158-015 is a precision analog I/O module developed by LAM Research, specifically designed to address the signal conversion needs of legacy semiconductor tools (e.g., 2005–2012 LAM 790 low-end etch systems, basic 2300 deposition tools) in 45nm–90nm mature-node fabs. As a critical component of LAM’s Legacy Automation Ecosystem, LAM 810-068158-015 acts as a “translator” between analog sensors (e.g., thermocouples for chamber temperature, pressure transducers) and LAM’s legacy control software (PCS v4.5+), converting raw analog signals into digital data that can be monitored and used to adjust tool operations.

Unlike generic analog I/O modules that struggle with semiconductor-specific noise and temperature fluctuations, LAM 810-068158-015 is engineered for cleanroom environments: its 2 kVrms signal isolation prevents interference from nearby RF generators (common in etch tools), while its industrial-grade components maintain ±0.1% input accuracy even in 10°C–45°C temperature swings. With 8 configurable analog inputs and 4 analog outputs, LAM 810-068158-015 eliminates the need for multiple discrete converters, reducing wiring complexity and failure points in legacy systems. For fabs upgrading from fully manual to semi-automated control, LAM 810-068158-015 enables plug-and-play integration with existing analog sensors—avoiding the cost of replacing entire sensor suites with digital alternatives.

Detailed Parameter Table

Core Advantages and Technical Highlights

High Accuracy for Legacy Sensor Data: LAM 810-068158-015’s ±0.1% analog input accuracy addresses a key pain point in mature-node fabs: unreliable signal conversion from aging analog sensors. A Southeast Asian 45nm passive component fab reported that LAM 810-068158-015 reduced temperature measurement error from ±2°C (with generic modules) to ±0.5°C, cutting “thermal drift” defects in deposition processes by 30% (from 5.2% to 3.6%). The module’s 10 Hz sampling rate also ensures timely capture of dynamic signals (e.g., pressure spikes during wafer load), preventing missed process anomalies.

Legacy Tool Compatibility with Minimal Upgrades: LAM 810-068158-015 is natively designed to work with LAM’s 2005–2012 tool lineup and PCS v4.5+ software, requiring no hardware modifications to existing tools. A U.S. small-scale fab using 2008-era LAM 790 etch tools noted that installing LAM 810-068158-015 took <2 hours per tool (vs. 6 hours for non-LAM modules), minimizing production downtime. The module’s support for both 0–10 V DC and 4–20 mA inputs also means fabs can reuse existing analog sensors (e.g., 4–20 mA pressure transducers), avoiding (15k–)20k per tool in sensor replacement costs.

Durable Design for Long-Term Legacy Use: LAM 810-068158-015’s flame-retardant FR4 enclosure and nickel-plated connectors ensure durability in 24/7 cleanroom operations. A Mexican 90nm resistor fab reported that the module maintained full functionality after 4+ years of continuous use, with no degradation in accuracy—outlasting generic modules that required replacement every 2 years. The self-resetting 1.5 A overcurrent protection also prevents damage from power surges, a common issue in aging fab electrical systems, avoiding (8k–)10k per failure in component repair.

Typical Application Scenarios

45nm Deposition Temperature Control (LAM 2300 Basic Series): In a medium-sized fab using 2010-era LAM 2300 basic deposition tools for 45nm SiO₂ production, LAM 810-068158-015 monitors and controls chamber temperature via 4 analog input channels (connected to thermocouples) and 2 analog output channels (controlling heater power). The module converts 4–20 mA temperature signals from thermocouples into digital data for LAM PCS v4.5+, which adjusts heater power via the module’s 0–10 V DC outputs—maintaining temperature at 450°C ±0.5°C. This precision reduced film thickness variation from 8% to 4.2%, lifting wafer yield from 87% to 92% and cutting scrap rates by 18%.

90nm Etch Pressure Monitoring (LAM 790 Low-End Series): For a small fab operating 2007-era LAM 790 low-end etch tools for 90nm sensor etching, LAM 810-068158-015 monitors chamber pressure via 3 analog input channels (connected to pressure transducers). The module converts 0–10 V DC pressure signals (corresponding to 1×10⁻²–1×10⁻⁷ Torr) into data for LAM PCS, which triggers an alarm via the module’s digital status output if pressure exceeds 5×10⁻³ Torr. This setup prevented 2–3 unplanned tool shutdowns per month (caused by pressure spikes), increasing monthly production output by 12% and reducing maintenance labor by 25%.

Installation Commissioning and Maintenance Instructions

Installation preparation: Before installing LAM 810-068158-015, confirm compatibility with your LAM tool (790 low-end etch/2300 basic deposition) and control software (PCS v4.5+). Power off the tool and disconnect main power to avoid electrical shock. Gather required tools: torque wrench (0.6–1.0 N·m range), wire stripper (for 22–24 AWG cables), anti-static wristband, and RS-485 communication cable. Mount LAM 810-068158-015 via panel-mount screws (included) or optional DIN rail adapter, ensuring ≥5 cm clearance from heat sources (e.g., power supplies) and ≥3 cm from RF generators (to preserve signal isolation). Connect analog sensors to input channels (configure 0–10 V DC/4–20 mA via DIP switches) and RS-485 to LAM PCS; verify 24 VDC power (dedicated 1.5 A circuit) before powering on.

Maintenance suggestions: Conduct weekly checks of LAM 810-068158-015—verify analog input/output accuracy via LAM PCS (compare to reference sensors) and inspect connectors for corrosion (clean with isopropyl alcohol if needed). Every 6 months, calibrate analog channels using a NIST-traceable signal generator (e.g., 5 V DC for 0–10 V input, 12 mA for 4–20 mA input) and update Modbus communication settings if PCS software is patched. For troubleshooting: if analog data is erratic, check sensor wiring and DIP switch configurations; if RS-485 communication fails, reset the module by power-cycling the tool. Keep a spare LAM 810-068158-015 on hand for critical legacy tools—replacement takes <30 minutes, minimizing downtime.
