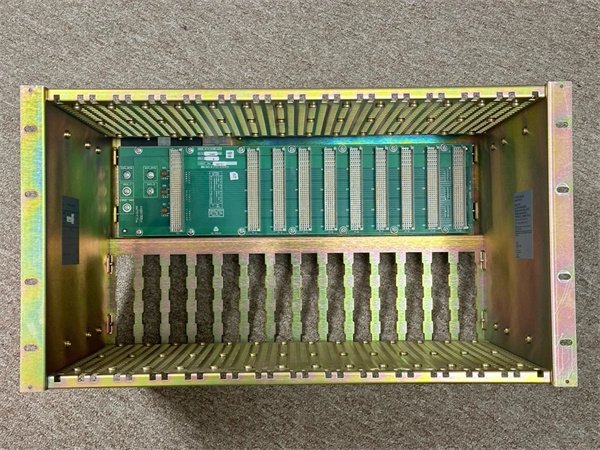

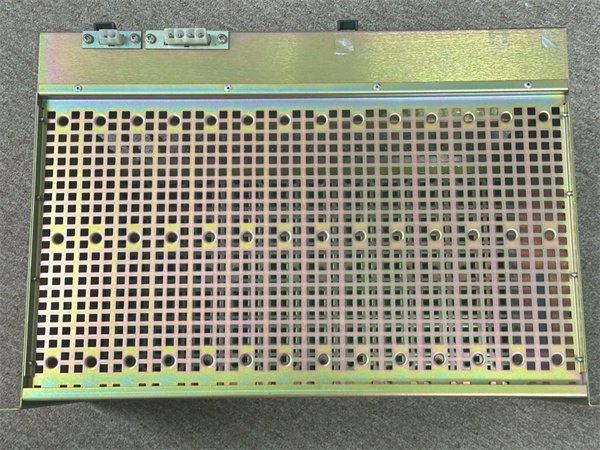

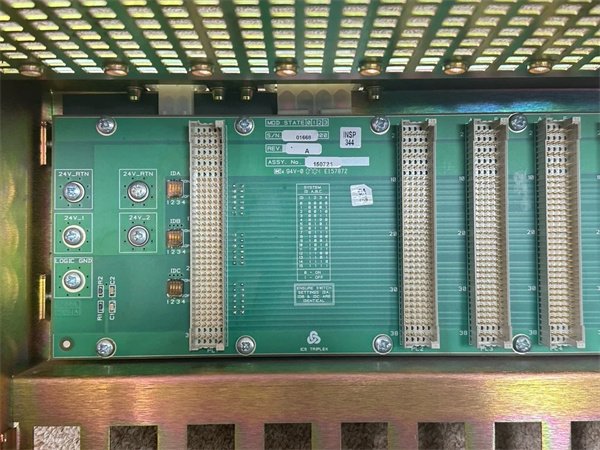

ICS Triplex T8100 Trusted TMR Controller Chassis

The ICS Triplex T8100 is a high-performance, fault-tolerant Trusted TMR (Triple Modular Redundancy) Controller Chassis designed for critical industrial automation and process control applications. It provides a robust platform for ensuring high availability and reliability in demanding environments.

Detailed Parameter Table

Core Advantages and Technical Highlights

Triple Modular Redundancy (TMR)

The ICS Triplex T8100 employs a TMR architecture, featuring three independent voting channels that execute the same program in parallel. This design ensures continuous operation even if one channel fails, enhancing system reliability.

High Reliability and Fault Tolerance

The chassis supports comprehensive diagnostics and self-testing capabilities, allowing for rapid fault identification and fail-safe operation. It continuously monitors itself for faults and can drive the system to a safe state if a failure is detected.

Scalable and Flexible Design

The ICS Triplex T8100 supports a wide range of Trusted I/O and interface modules, making it highly versatile for various applications. It can accommodate up to two Trusted TMR Processor modules and up to eight Trusted TMR Interface modules.

Advanced Safety Features

Certified to IEC 61508 SIL 3 and EN 50128 TUV Rheinland safety standards, the T8100 ensures secure and reliable performance in safety-critical applications.

Typical Application Scenarios

The ICS Triplex T8100 is widely used in industries where high reliability and safety are paramount, such as:

• Oil & Gas: Monitoring and controlling critical processes in refineries and drilling operations.

• Power Generation: Real-time monitoring and control of turbines and generating units.

• Chemical Processing: Process control in reactors, mixers, and separation units.

• Water Treatment and Utilities: Ensuring reliable communications between distributed sensors, controllers, and central monitoring systems.

Installation, Commissioning and Maintenance Instructions

Installation Preparation

Before installing the ICS Triplex T8100, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (20 V DC to 32 V DC) and that the operating temperature range (-20°C to +60°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.

Maintenance Suggestions

Regular maintenance is crucial for extending the lifespan of the ICS Triplex T8100. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance and ensure that spare parts are readily available to minimize downtime.

Service and Guarantee Commitment

The ICS Triplex T8100 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
