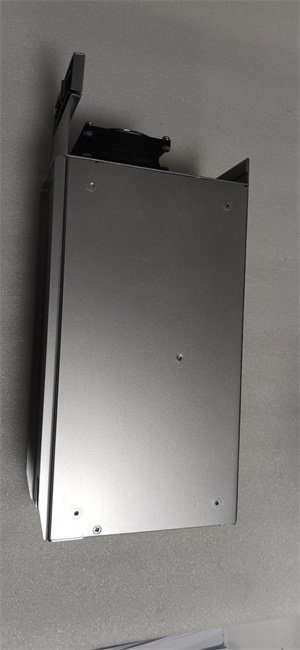

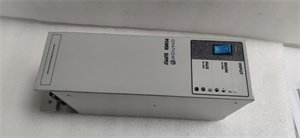

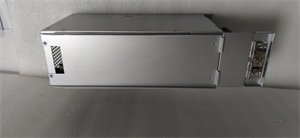

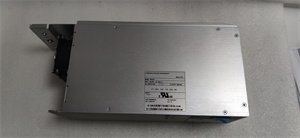

Westinghouse 1X00416H01 Industrial Control Module
Manufacturer: Westinghouse (Emerson)
Product Number: 1X00416H01
Category: Power Supply Module (Ovation Series)
Input Voltage: 100-240 V AC, 50/60 Hz
Output Voltage: 24 V DC
Output Current: 10 A
Efficiency: >85%
Operating Temperature: -20°C to +60°C
Application: Industrial automation systems requiring stable and reliable power
Product Description
The Westinghouse 1X00416H01 is a high-performance power supply module designed for industrial automation systems. It is part of the Emerson Ovation series and is specifically engineered to provide stable and reliable power for various industrial applications.
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | Westinghouse 1X00416H01 |
| Manufacturer | Westinghouse |
| Product Category | Industrial Control Module |
| Operating Voltage | 90-264 VAC |
| Output Voltage | 240 VDC |
| Output Current | 1A |
| Power Rating | 240 W |
| Communication Protocol | Modbus RTU |
| Operating Temperature Range | -40°C to +75°C |
| Storage Temperature Range | -40°C to +85°C |
| Dimensions | 2.5 x 10.2 x 5.1 inches |
| Weight | 2.2 lbs |
| Certifications | CE, RoHS |
Core Advantages and Technical Highlights
High Precision and Reliability
The Westinghouse 1X00416H01 features a robust design with multiple safety functions, including overvoltage protection, undervoltage protection, and short-circuit protection. These features ensure reliable operation in harsh industrial environments.
Versatile Communication Capabilities
This module supports the Modbus RTU communication protocol, facilitating seamless integration with existing industrial systems.
User-Friendly and Flexible
The module includes a user-friendly interface and clear documentation, making installation and maintenance straightforward. It also features a modular design for easy installation, maintenance, and replacement.
Typical Application Scenarios
The Westinghouse 1X00416H01 is widely used in:
-
Power Generation: For monitoring and controlling critical processes in power plants.
-
Process Control: For precise control of pumps, valves, and mixers in chemical and petroleum industries.
-
Energy Management: For monitoring and control of renewable energy projects.
-
Industrial Automation: For controlling production lines, robotic arms, and conveyor systems.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the input signal lines and communication cables according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Use dedicated debugging software to check and update module parameters as needed. Keep the module clean and free from dust to prevent overheating and ensure efficient operation.
Service and Guarantee Commitment
The Westinghouse 1X00416H01 is backed by a comprehensive warranty and after-sales service commitment. Westinghouse guarantees the quality of the product and provides a 12-month warranty period from the date of purchase. The company offers 24/7 technical support to ensure any issues are resolved promptly.
