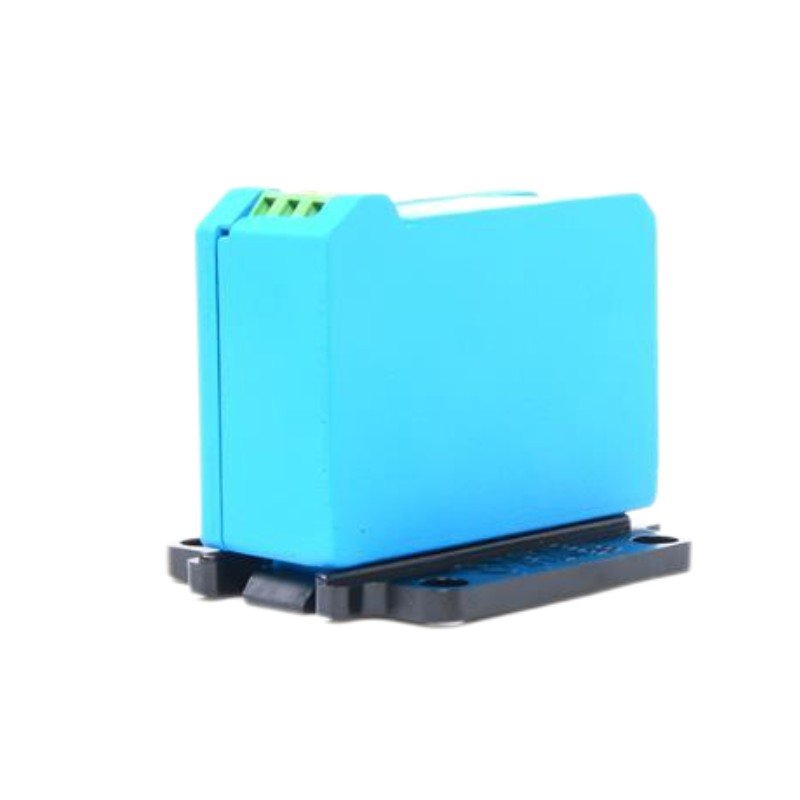

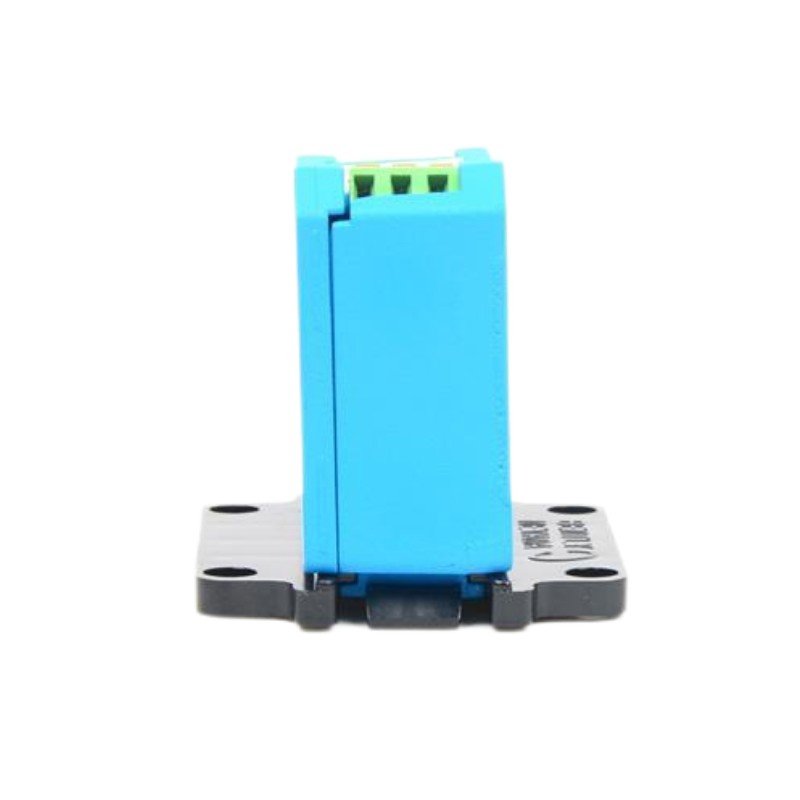

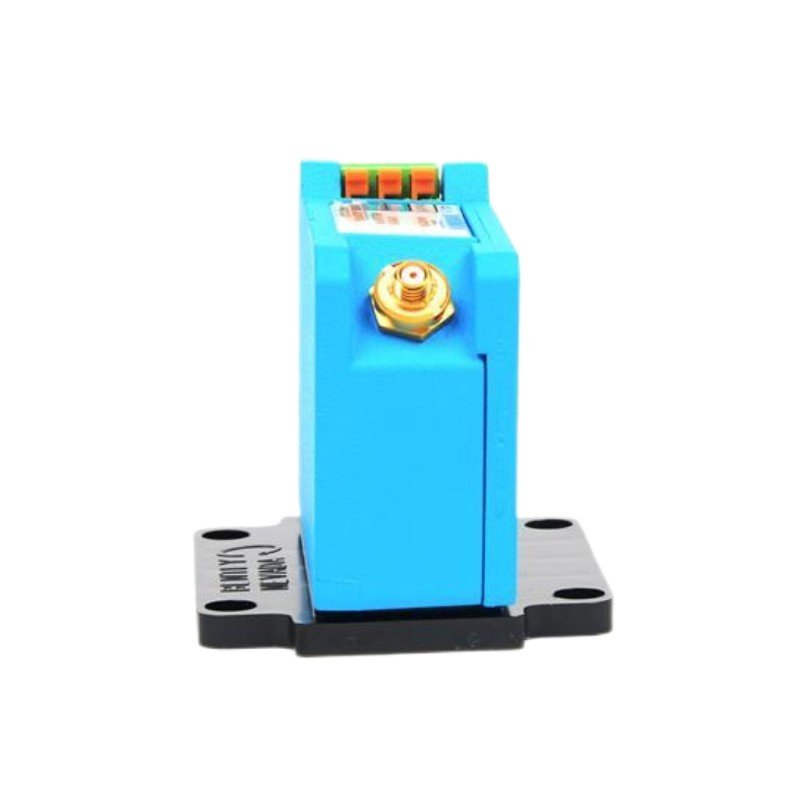

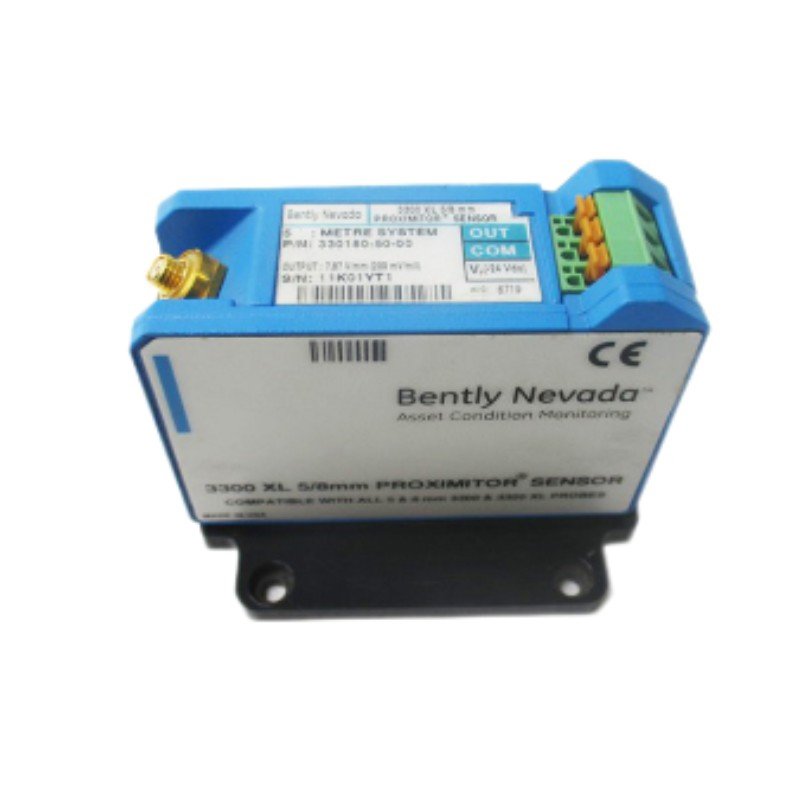

Bently Nevada 330180-50-00 3300 XL 8mm Proximitor Sensor
Manufacturer: Bently Nevada
Product Number: 330180-50-00
Category: 3300 XL 8mm Proximitor Sensor
Probe Diameter: 8 mm
Measurement Range: 0-2 mm
Frequency Range: 0-10 kHz
Output Sensitivity: 200 mV/mil
Operating Temperature: -40°C to +85°C
Application: Non-contact position and vibration monitoring of rotating machinery
Product Description
The Bently Nevada 330180-50-00 is an 8mm proximitor sensor from the 3300 XL series, engineered by GE Bently Nevada. This non-contact sensor utilizes eddy current technology to precisely monitor the position and vibration of rotating machinery. It is commonly installed on critical equipment such as turbines, compressors, pumps, and motors for real-time monitoring and predictive maintenance.
Renowned for its rugged design, environmental resistance, and seamless compatibility with 3300 monitoring systems, the 330180-50-00 ensures accurate displacement detection even in the harshest industrial environments.
Key Features
-
Non-contact Eddy Current Measurement: Offers wear-free measurement of shaft displacement, improving longevity and precision.
-
High Accuracy: Delivers micron-level resolution suitable for high-speed, high-precision machines.
-
Superior Environmental Resistance: Operates reliably under extreme temperature, vibration, and electromagnetic interference.
-
System Compatibility: Fully integrates with Bently Nevada 3300 XL Proximitor systems and monitors.
-
Rugged and Sealed: Stainless steel construction with high IP protection for industrial conditions.
-
Easy Installation: Threaded body with lock nuts allows for flexible installation in tight or customized setups.
Technical Specifications
Dimensions and Weight
| Item | Value |
|---|---|
| Dimensions | Total Length：5.0 meters |
| Weight | 0.7 kg |
General Information
| Item | Specification |
|---|---|
| Model | 330180-50-00 |
| Manufacturer | Bently Nevada (GE) |
| Series | 3300 XL 8mm |
| Mounting Type | Threaded (3/8-24 UNF typical) |
| Operating Temperature | -35°C to +120°C |
| Storage Temperature | -50°C to +120°C |
| Protection Rating | IP67 |
| Housing Material | 304 Stainless Steel |
Performance Parameters
| Item | Specification |
|---|---|
| Measurement Principle | Eddy current non-contact displacement |
| Measurement Range | 0.25 mm to 2.00 mm (typical) |
| Linearity Error | ±1% of full scale |
| Sensitivity | 7.87 mV/μm (standard) |
| Frequency Response | 0 to 10 kHz |
| Resolution | ≤ 1 μm |
| Recommended Gap | 1.0 mm to 2.0 mm |
Electrical Specifications
| Item | Specification |
|---|---|
| Power Supply | Supplied via 3300 XL Proximitor module |
| Signal Output | Analog voltage output |
| Connector Type | BNC or TNC (depending on configuration) |
Industry Applications
-
Power Generation (Turbine Monitoring): Measures shaft displacement and vibration to ensure safe operation of steam turbines.
-
Oil & Gas Industry: Used in compressors and pumps to prevent unplanned downtime by enabling predictive diagnostics.
-
Metallurgy and Steel Plants: Monitors displacement in high-temperature rotating equipment, improving safety and uptime.
-
Wind Energy and Renewables: Ensures optimal performance and protection of wind turbine main shafts and gearboxes.
-
Precision Manufacturing: Applied in high-precision machinery for continuous displacement monitoring and feedback control.
The 330180-50-00 proximity sensor is a vital part of any predictive maintenance system, offering unmatched accuracy, durability, and integration flexibility for critical rotating equipment.
