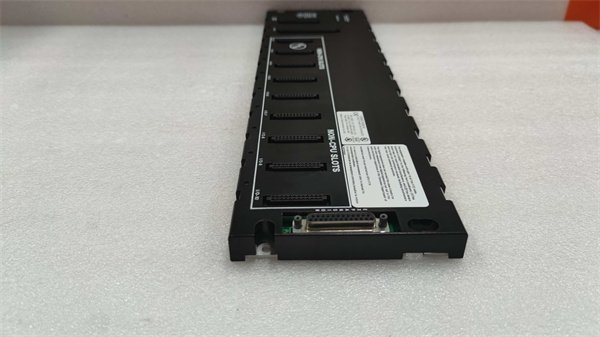

General Electric IC693CHS391 Rack–style Power Supply and Backplane

The GE IC693CHS391 is a crucial component within the GE Fanuc Series 90 – 30 Programmable Logic Controller (PLC) system. It serves as a rack – style power supply and backplane, playing a fundamental role in industrial control applications. This device is designed to offer a high – performance solution for a wide range of industrial scenarios, enabling seamless operation and control within automated systems.

As a backplane, the GE IC693CHS391 is engineered to support the connection of various I/O modules. It has the capacity to accommodate up to 10 expansion modules, allowing for system scalability. This means that as industrial processes grow or change, additional I/O modules can be added to handle more complex tasks. It also features a special slot dedicated to the CPU, ensuring proper integration within the PLC system. Whether installed vertically or horizontally, depending on the layout of the PLC or CPU, it provides a stable platform for the entire control setup. In addition, it has a 25 – pin female connector and can support a maximum cable length of 700 meters when connected to a GE 90 – 30 series remote baseplate, facilitating flexible system configurations.

Technical Specifications

High Scalability

The GE IC693CHS391 offers remarkable scalability. With the ability to house up to 10 expansion modules, it can adapt to the evolving needs of industrial processes. For example, in a manufacturing plant that initially has a simple control system but plans to add more sensors and actuators over time, the IC693CHS391 allows for easy integration of additional I/O modules. This scalability not only future – proofs the system but also reduces the need for a complete overhaul when requirements change.

Flexible Installation

Its design supports both vertical and horizontal installation. This flexibility is beneficial in different industrial settings where space constraints or equipment layout may vary. In a compact control cabinet, a vertical installation might be more suitable to save space, while in a larger control room with more open space, a horizontal installation could be more convenient for access and maintenance.

Stable Electrical Connection

The 25 – pin female connector and the backplane’s electrical design ensure stable electrical connections between the power supply, CPU, and I/O modules. This stability is crucial for reliable data transfer and power distribution within the PLC system. It minimizes the risk of electrical interference and connection failures, which could otherwise lead to system malfunctions in critical industrial operations.

Built – in Cooling

The inclusion of a built – in fan for cooling is a significant advantage. In industrial environments, heat can build up quickly, especially in enclosures where multiple components are operating. The cooling fan in the GE IC693CHS391 helps to dissipate heat, maintaining optimal operating temperatures for all connected components. This, in turn, extends the lifespan of the modules and reduces the likelihood of component failures due to overheating.

Manufacturing Automation

In manufacturing plants, the GE IC693CHS391 is widely used. It can be found in assembly lines, where it powers and connects various I/O modules that control robotic arms, conveyor belts, and other automated machinery. For instance, in an automotive assembly plant, it may be used to manage the I/O modules that control the movement of robotic arms as they pick and place car parts. The high – performance capabilities of the IC693CHS391 ensure smooth and accurate operation, improving production efficiency and product quality.

Material Handling

Within warehouses and distribution centers, material handling systems rely on the GE IC693CHS391. It can be part of the control system for automated guided vehicles (AGVs) or conveyor systems. By providing power and enabling communication between different components, it helps in the efficient movement of goods. For example, in a large e – commerce fulfillment center, the IC693CHS391 may control the I/O modules that manage the speed and direction of conveyor belts, ensuring that packages are sorted and transported accurately.

Machine Control

In machine shops and other industrial facilities with machinery, the GE IC693CHS391 plays a key role. It can be used to control the operation of machine tools such as lathes, mills, and drills. By connecting and powering the necessary I/O modules, it enables precise control over the machine’s movements, speeds, and other parameters. In a precision machining shop, the IC693CHS391 may be used to control the I/O modules that regulate the cutting depth and spindle speed of a milling machine, resulting in high – quality machined parts.

Process Control

In industries such as chemical plants, refineries, and food and beverage production, process control is critical. The GE IC693CHS391 can be part of the PLC system that controls various processes. It may power and connect I/O modules that monitor and control variables such as temperature, pressure, and flow rates. For example, in a chemical reactor, the IC693CHS391 may be used to manage the I/O modules that adjust the flow of reactants based on temperature readings, ensuring a safe and efficient chemical reaction.

Installation and Maintenance

Pre – installation preparation: Before installing the GE IC693CHS391, carefully read the installation manual provided by GE. Ensure that the installation area is clean, dry, and free from dust and debris. Check the input voltage at the installation site to confirm it matches the requirements of 120/240 VAC or 125VDC. Measure the available space to ensure the dimensions of the IC693CHS391 (12.12 in x 5.0 in x 7.75 in) will fit properly. When handling the unit, use appropriate electrostatic discharge (ESD) protection to avoid damaging sensitive components.

Maintenance recommendations: Regularly inspect the GE IC693CHS391 for any signs of physical damage, such as cracks or loose connections. Clean the unit periodically using a soft, dry cloth to remove dust, especially from the built – in cooling fan. Monitor the operating temperature of the unit to ensure it remains within the specified range of 0 °C to 60 °C. If any issues arise, such as abnormal power consumption or communication problems with connected modules, refer to the troubleshooting section of the user manual. Periodically check for firmware updates from GE to ensure the unit is operating with the latest performance improvements and bug fixes.

Product Guarantee

GE stands firmly behind the quality of the GE IC693CHS391. The product undergoes rigorous quality control procedures during manufacturing to ensure its reliability and high – performance operation. GE typically offers a standard warranty, often for a period of one year, against defects in materials and workmanship. In the event that a problem occurs within the warranty period, GE’s dedicated after – sales service team will promptly provide repair or replacement services. They also offer comprehensive technical support, including online resources, user manuals, and access to technical experts. This ensures that customers can rely on the IC693CHS391 for their industrial control needs with confidence, knowing that they have the full support of the manufacturer throughout the product’s lifespan.
