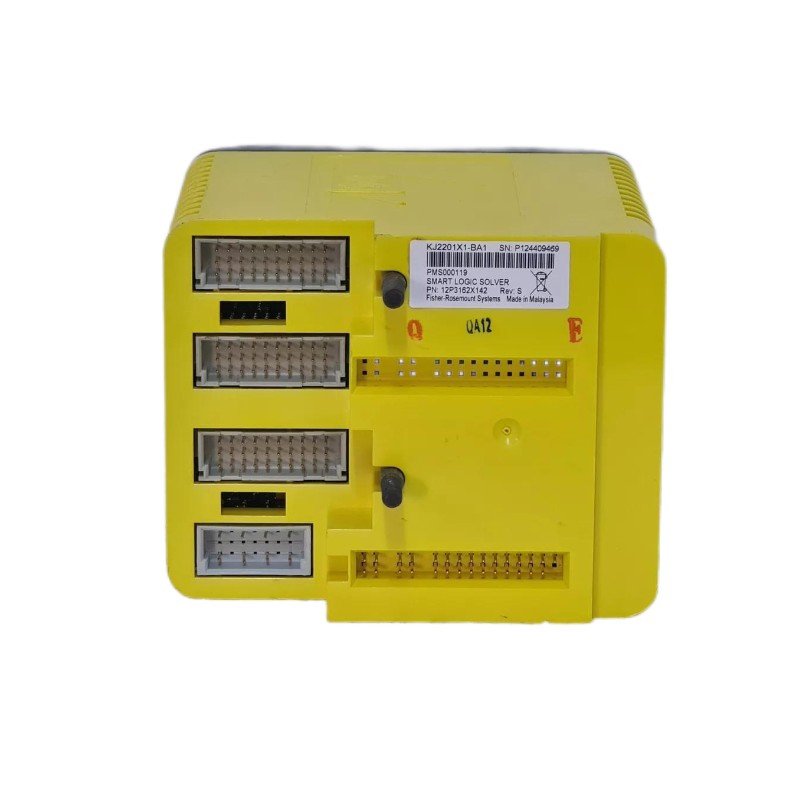

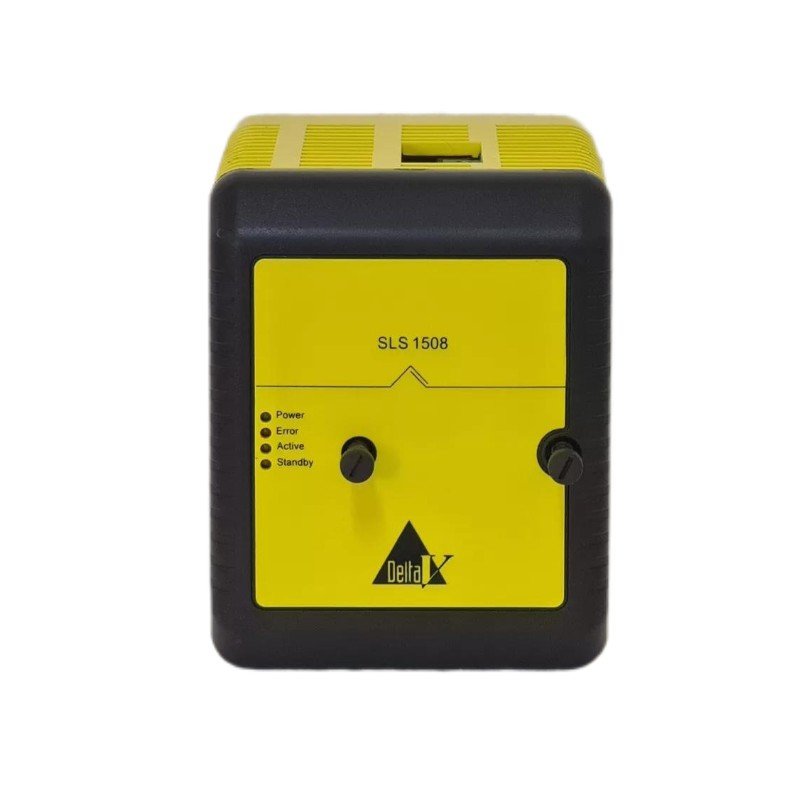

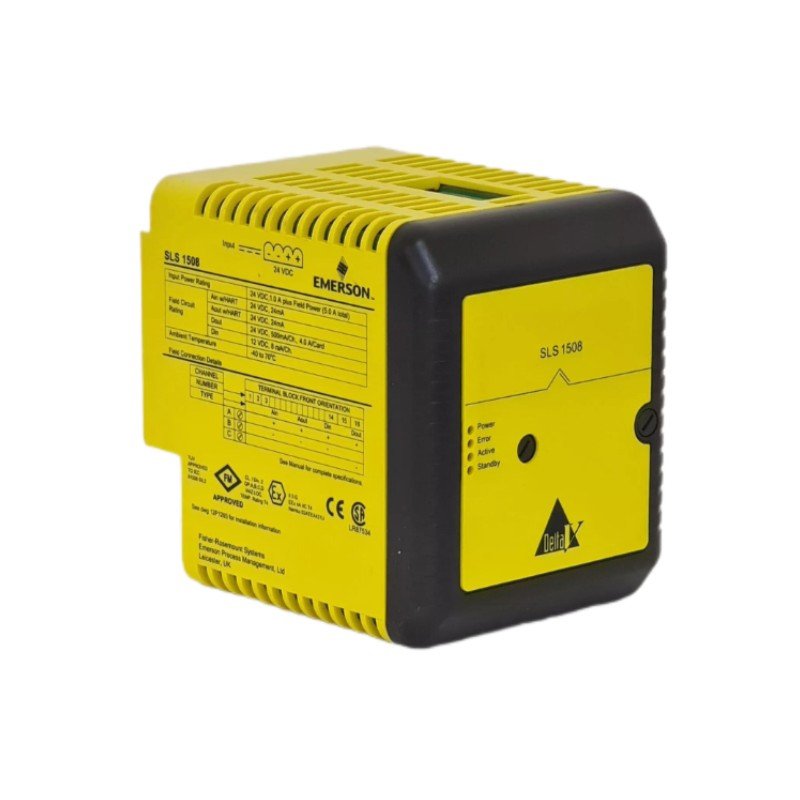

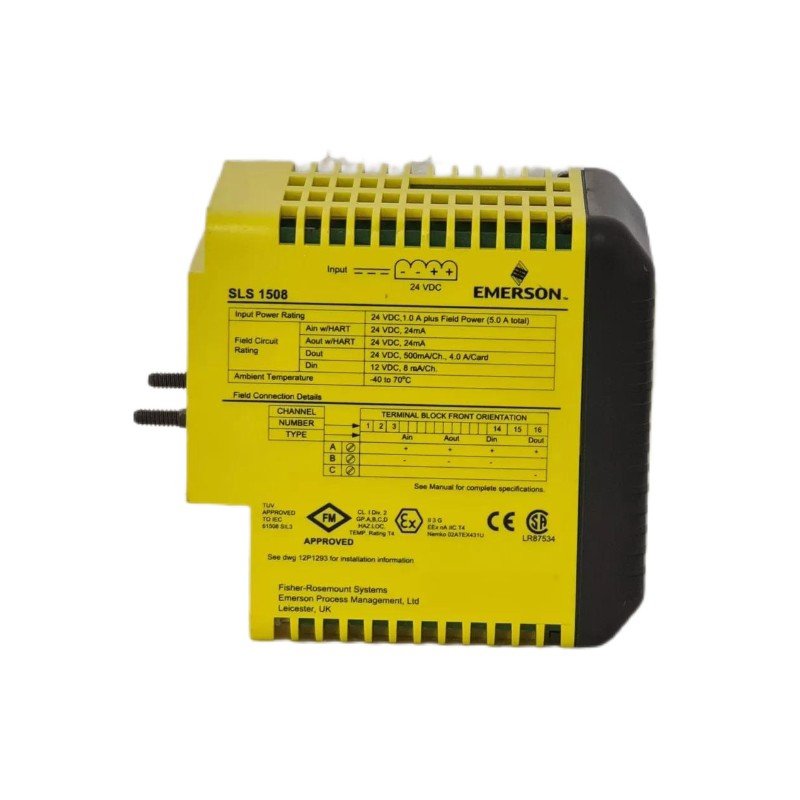

Emerson KJ2201X1-BA1 Intelligent Logic Solver
Manufacturer: Emerson
Product Number: KJ2201X1-BA1
Category: Intelligent Logic Solver (DeltaV SIS)
Safety Integrity Level (SIL): SIL 3 certified
Function: Safety-critical logic execution, monitoring, and control for Safety Instrumented System (SIS)
Application: High-reliability safety applications in DeltaV SIS architecture
Product Description
The Emerson KJ2201X1-BA1 Intelligent Logic Solver is a SIL3-certified safety system component designed for use in Emerson’s DeltaV™ SIS (Safety Instrumented System) architecture. It performs safety-critical logic execution, monitoring, and control functions, offering deterministic response, high availability, and secure operation in hazardous environments.
Ideal for implementing safety instrumented functions (SIFs), the KJ2201X1-BA1 is capable of executing user-defined logic independently from the basic process control system. It supports integration with HART-enabled field devices, and features built-in diagnostics, fault tolerance, and redundancy support, making it suitable for use in applications requiring rigorous safety compliance such as oil & gas, petrochemical, and power generation industries.
Key Features
-
SIL3 Certified: Meets IEC 61508 standards for high-integrity safety applications.
-
Independent Logic Execution: Executes safety logic independently from the control system for improved integrity.
-
Redundancy Support: Can be configured for redundant operation for fault tolerance.
-
Built-in Diagnostics: Monitors internal health and external field loop integrity.
-
HART Integration: Supports HART protocol for advanced diagnostics and communication with field devices.
-
Fast Response Time: Ensures timely execution of safety functions during critical events.
-
Secure Operation: Designed to prevent unauthorized changes to logic or configuration.
-
System Compatibility: Seamlessly integrates with Emerson DeltaV™ SIS architecture.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 83.8 × 105.5 × 110mm |
| Weight | 1.2 kg |
General Information
| Item | Specification |
|---|---|
| Model | KJ2201X1-BA1 |
| Manufacturer | Emerson Electric Co. |
| Installation | Rack-mounted in DeltaV SIS Logic Solver Chassis |
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
Functional Capabilities
| Item | Specification |
|---|---|
| Safety Certification | SIL3 per IEC 61508 |
| Logic Execution Speed | < 500 ms typical |
| Redundancy Options | Optional dual-redundant configuration |
| Supported Protocols | DeltaV SIS, HART |
| Diagnostic Coverage | > 90% |
| Logic Types | Boolean, arithmetic, timer, counter |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC (via system backplane) |
| Power Consumption | Approx. 4.5 W |
| Status Indicators | LEDs for power, fault, status |
Industry Applications
-
Oil & Gas: Used in emergency shutdown systems (ESD), burner management, and gas detection safety loops.
-
Petrochemical & Chemical: Implements SIFs for reactor protection, pressure relief, and critical valve actuation.
-
Power Generation: Ensures turbine overspeed protection and boiler safety systems.
-
Pharmaceuticals: Supports cleanroom and environmental safety systems.
-
Marine & Offshore: Applied in blowout preventer (BOP) and fire/gas suppression systems.
The Emerson KJ2201X1-BA1 Intelligent Logic Solver is a trusted choice for achieving high safety integrity and operational reliability in complex industrial safety applications.
