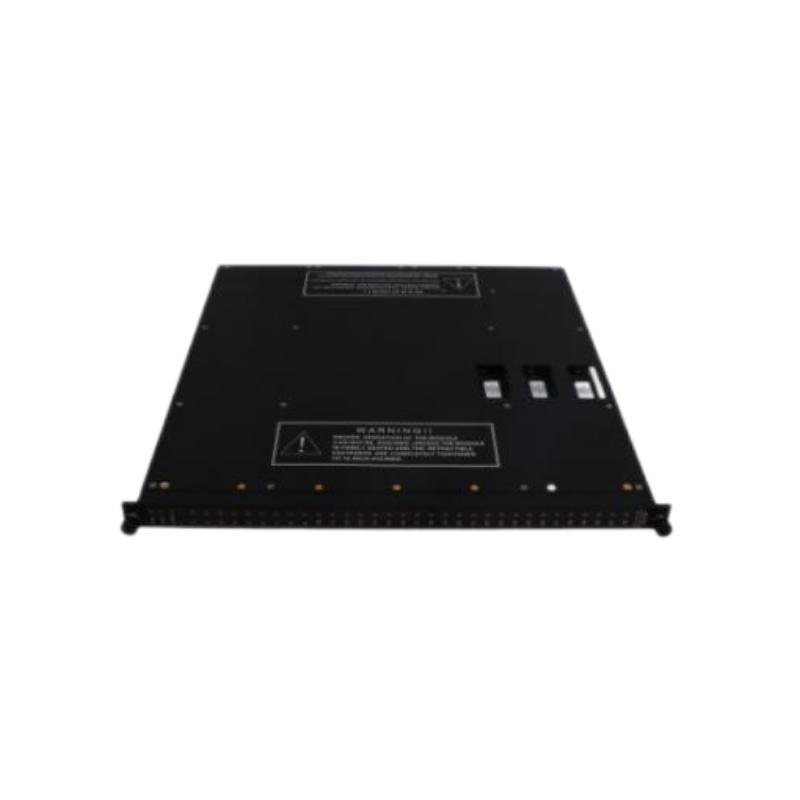

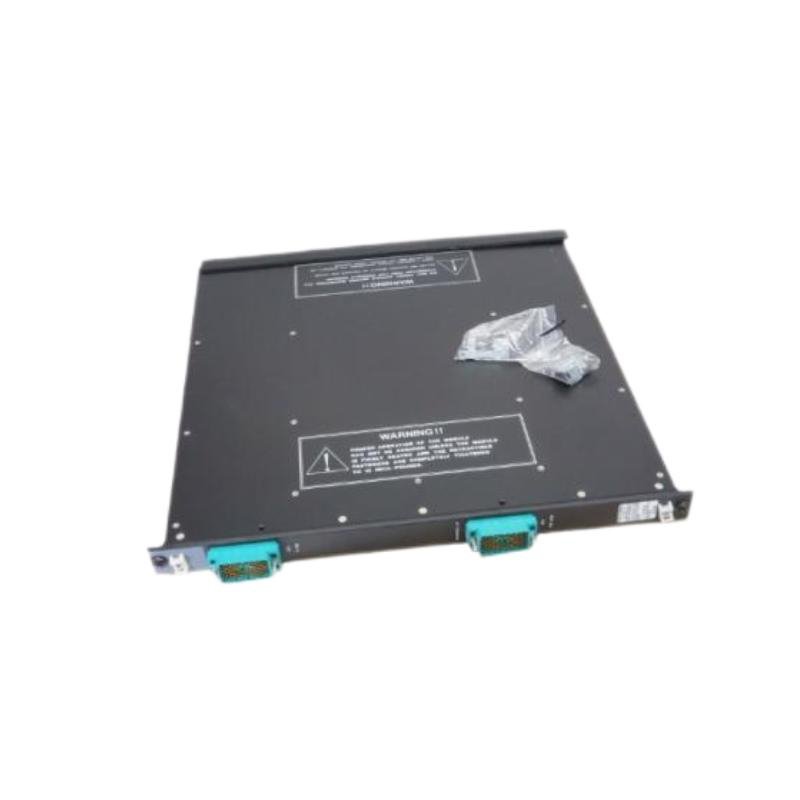

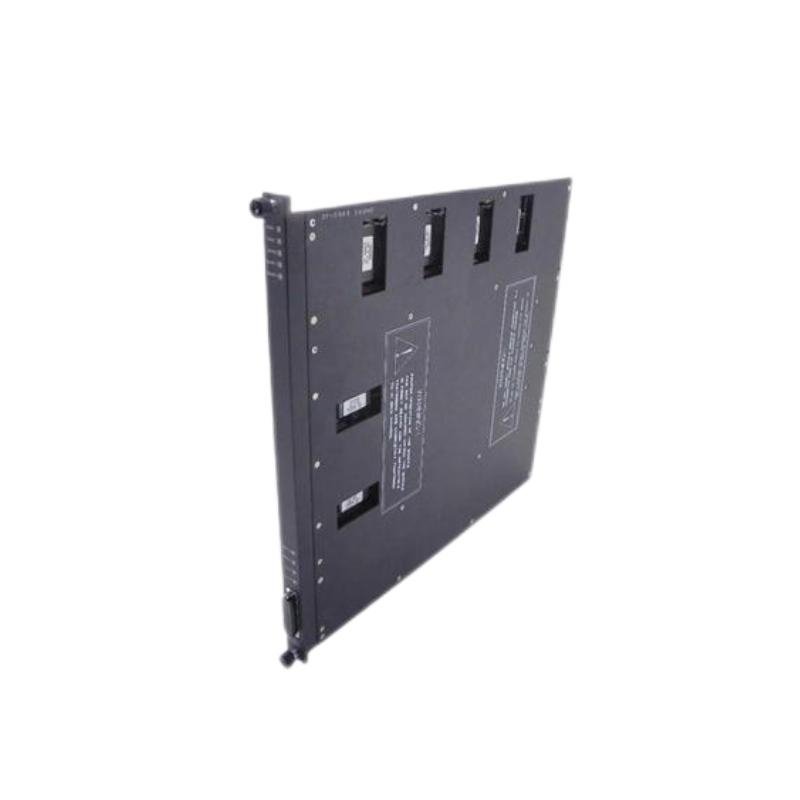

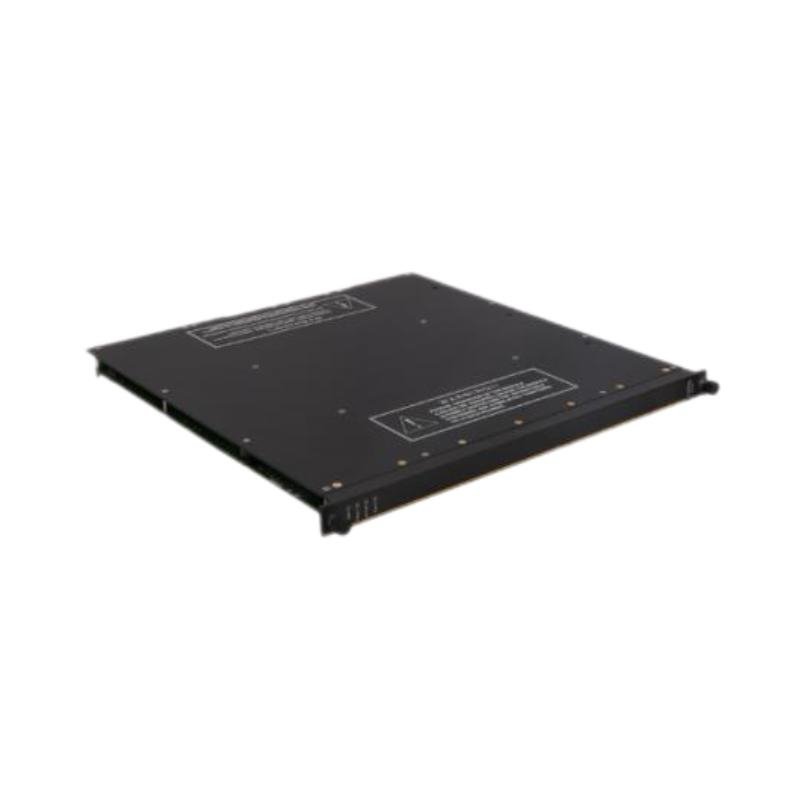

Triconex 3502E Digital Input Module

The Triconex 3502E is a digital input module designed for use in Triconex Safety Instrumented Systems (SIS). This module provides high-integrity safety monitoring and control for safety-critical processes, converting digital signals from field devices (such as switches, relays, and other binary sensors) into signals that can be processed by the Triconex control systems. The 3502E module is ideal for industries where high safety standards and reliable performance are paramount, including the oil and gas, chemical, nuclear, and power generation industries.

This module is part of the Triconex family of modules, designed to meet SIL 3 (Safety Integrity Level) requirements, ensuring that it provides reliable and fail-safe operation in safety-critical applications. The 3502E module is robustly designed to handle the demanding environments found in hazardous areas, ensuring continuous monitoring and control while maintaining the highest safety standards.

Key Features of Triconex 3502E Digital Input Module

The Triconex 3502E offers several advanced features that make it suitable for high-integrity safety applications in a wide range of industries:

1. High Safety Integrity

   • Designed to meet SIL 3 safety standards in compliance with IEC 61508 and IEC 61511.
   • The module ensures fail-safe operation to maintain safety in the event of a component failure.
   • Supports Triconex TMR (Triple Modular Redundancy) systems, providing redundant safety and continuous system monitoring.

2. Wide Compatibility with Field Devices

   • The 3502E accepts digital input signals from a variety of field devices, including dry contact switches, relays, and binary sensors.
   • It is highly versatile, supporting a wide range of input signal types and voltage levels to meet diverse industrial needs.

3. Real-Time Diagnostics

   • Features built-in diagnostics that allow for continuous monitoring of the module’s health and status.
   • Proactively detects faults and provides alerts before they compromise system safety, ensuring high system uptime.

4. Robust Design for Harsh Environments

   • The 3502E is built using industrial-grade components, making it suitable for challenging environments such as high temperature, humidity, and vibration.
   • It meets ATEX, IECEx, and UL certifications, ensuring safe operation in hazardous and explosive atmospheres.

5. Fast Response Time

   • The module is designed for high-speed digital input processing, ensuring rapid response times for critical signals.
   • Response time is less than 20 milliseconds, enabling the system to act quickly in the event of a fault or safety breach.

6. Ease of Integration

   • Easily integrates with the Triconex SIS through standard I/O connections and fieldbus protocols.
   • Supports redundant configurations, ensuring continuous operation in safety-critical systems.

Technical Specifications of Triconex 3502E Digital Input Module

The following table outlines the detailed technical specifications of the Triconex 3502E digital input module:

Applications of Triconex 3502E Digital Input Module

The Triconex 3502E is designed for use in Safety Instrumented Systems (SIS), particularly in applications where fail-safe operation and high safety integrity are critical. The module is used in a variety of industrial sectors:

1. Process Control Systems

• In chemical plants, oil refineries, and pharmaceutical manufacturing, the 3502E monitors safety-critical processes.
• It ensures the safe operation of equipment such as valves, pumps, and level sensors by continuously monitoring the digital input signals from these devices.

2. Power Generation

• In nuclear power plants, gas turbine plants, and coal-fired power stations, the 3502E monitors emergency shutdown systems (ESD).
• Helps protect critical equipment by ensuring that safety protocols are followed during power plant operations.

3. Oil & Gas Industry

• Used in offshore rigs, gas pipelines, and oil refineries to monitor emergency shutdown systems and critical safety devices.
• Ensures that the system operates safely and prevents accidents in hazardous locations.

4. Hazardous Locations

• Certified for use in ATEX and IECEx certified explosive atmospheres, making it suitable for industries that require intrinsic safety.
• The module can operate safely in environments with risks such as flammable gases and dust.

5. Safety Critical Systems

• Integral to Triconex SIL 3-rated systems, the 3502E helps maintain the safety and integrity of shutdown systems, fire detection systems, and gas detection systems.

Certifications and Compliance

The Triconex 3502E is designed to meet the following certifications and safety standards:

• SIL 3 Compliance: Meets IEC 61508 and IEC 61511 safety standards for functional safety.
• ATEX & IECEx Certified: Certified for use in explosive atmospheres and hazardous environments.
• UL & CSA Listed: Complies with North American safety standards.
• CE Marked: Meets European Union safety, health, and environmental regulations.
