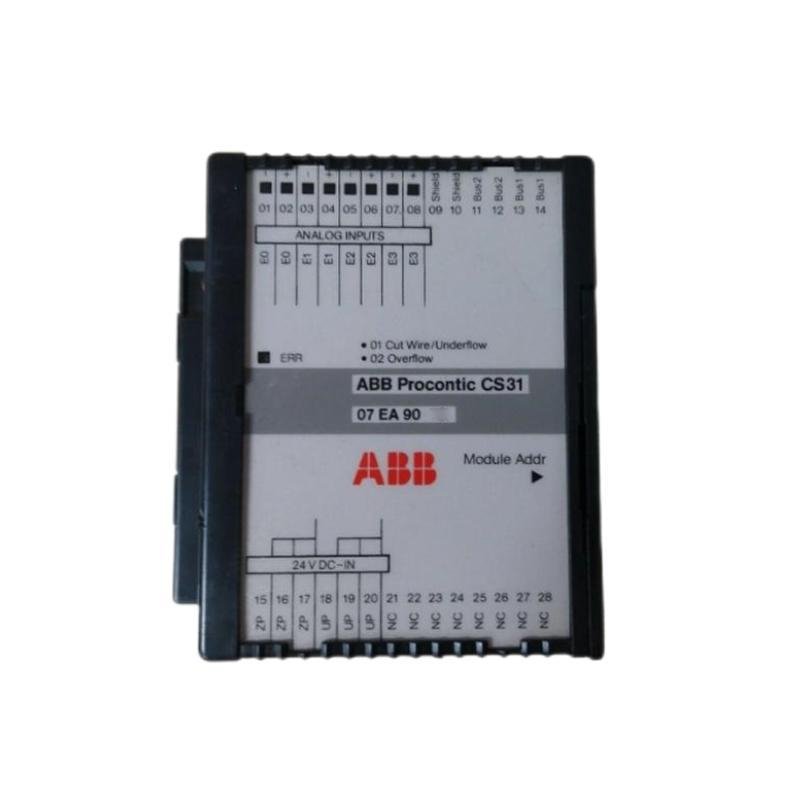

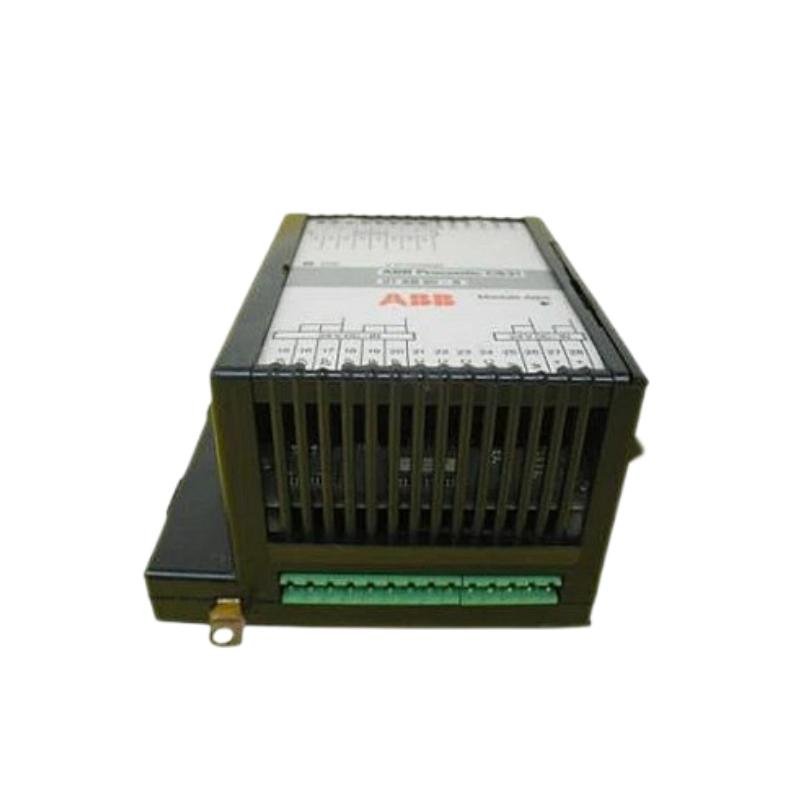

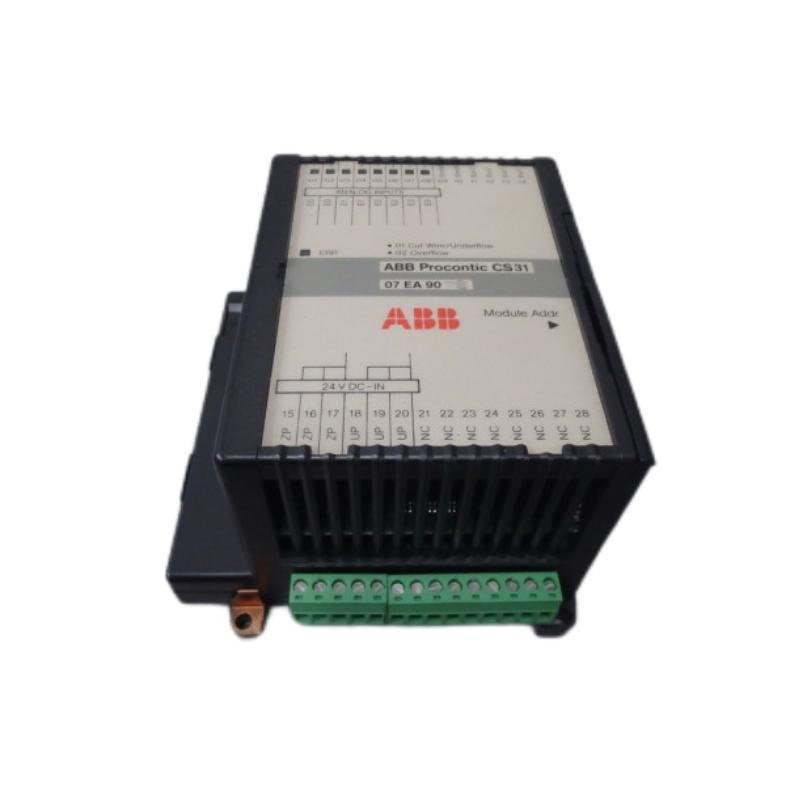

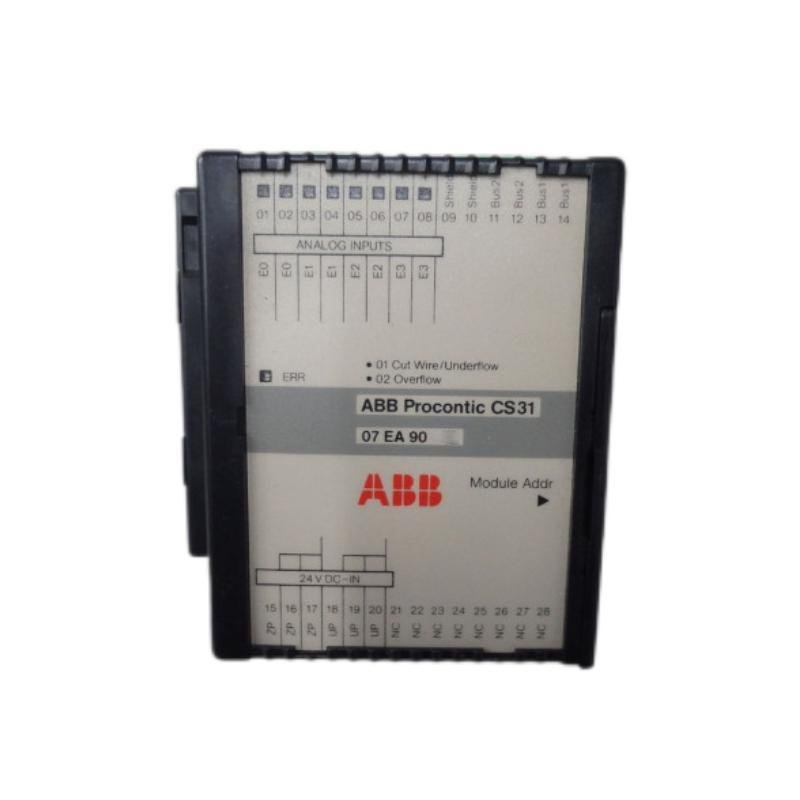

ABB 07EA90 GJR5251200R0101 Analog Input Modules
Manufacturer: ABB
Product Number: 07EA90 (GJR5251200R0101)
Category: Analog Input Module
Input Channels: 8 (typical)
Input Types: 4-20 mA, 0-10 V
System Compatibility: ABB industrial automation systems
Function: Converts analog signals from field devices for control system processing
Product Description
The ABB 07EA90 GJR5251200R0101 Analog Input Module is a high-performance input module specifically designed for ABB industrial automation systems. This module is used to convert analog signals from field devices (such as temperature, pressure, flow, etc.) into digital signals that can be processed by the control system, ensuring accurate signal acquisition and transmission. The 07EA90 module features high precision, high reliability, and broad compatibility, making it ideal for various industrial control and process automation systems, especially in environments requiring high stability and reliability.
The module supports multi-channel input design and can simultaneously acquire multiple analog signals, supporting various signal types such as voltage, current, thermocouples, etc. Whether in automated production lines, process control, or energy management, the 07EA90 module provides stable and accurate analog signal inputs to ensure smooth system operation.
Key Features
-
High Precision Signal Acquisition: Utilizes advanced analog signal conversion technology to ensure high-precision signal input.
-
Multi-Signal Type Support: Supports voltage, current, thermocouple, and other types of signals to meet various field application needs.
-
Multi-Channel Input Design: Supports multiple input channels and can simultaneously acquire several signals, improving system processing efficiency.
-
High Reliability and Stability: Equipped with anti-interference capabilities, suitable for complex industrial environments, ensuring long-term stable operation.
-
Easy Installation: Compact design for easy installation, compatible with other ABB products, reducing installation complexity.
-
Wide Applicability: Suitable for various industrial applications, particularly in process control, automation production, and energy monitoring.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 90 mm x 60 mm x 45 mm |
| Weight | 0.25 kg |
General Information
| Item | Specification |
|---|---|
| Product Model | 07EA90 GJR5251200R0101 |
| Manufacturer | ABB |
| Type | Analog Input Module |
| Input Signal Types | Voltage, Current, Thermocouple |
| Number of Input Channels | 8 Channels |
| Power Supply | 24V DC |
| Output Signal | Digital Signals (PLC Interface) |
| Protection Class | IP20 |
Performance and Functions
| Item | Specification |
|---|---|
| Input Signal Types | Voltage (0-10V), Current (4-20mA), Thermocouple (J, K, etc.) |
| Number of Input Channels | 8 Channels |
| Accuracy | ±0.1% (Full Scale) |
| Signal Conversion Speed | 100ms/channel |
| Sampling Frequency | 100Hz |
| Input Current | 4-20mA (supported) |
| Input Voltage | 0-10V (supported) |
| Output Signal Types | Digital Signals (Compatible with control systems) |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%–95% Non-condensing |
Industry Applications
The ABB 07EA90 GJR5251200R0101 Analog Input Module is widely used in various automation control systems, especially in industrial environments requiring high precision and reliability. It effectively converts analog signals from field devices into digital signals for further processing and control by the system.
-
Industrial Automation: Used in automation control systems to provide accurate analog signal input, suitable for complex production environments.
-
Process Control: Widely used in industries such as chemicals, oil, pharmaceuticals, and food to ensure high-precision signal acquisition in process control systems.
-
Energy Management: Used in energy monitoring and control systems to acquire and process analog signals related to energy.
-
Environmental Monitoring: Suitable for environmental monitoring fields, such as acquiring parameters like temperature, humidity, and gas concentration.
