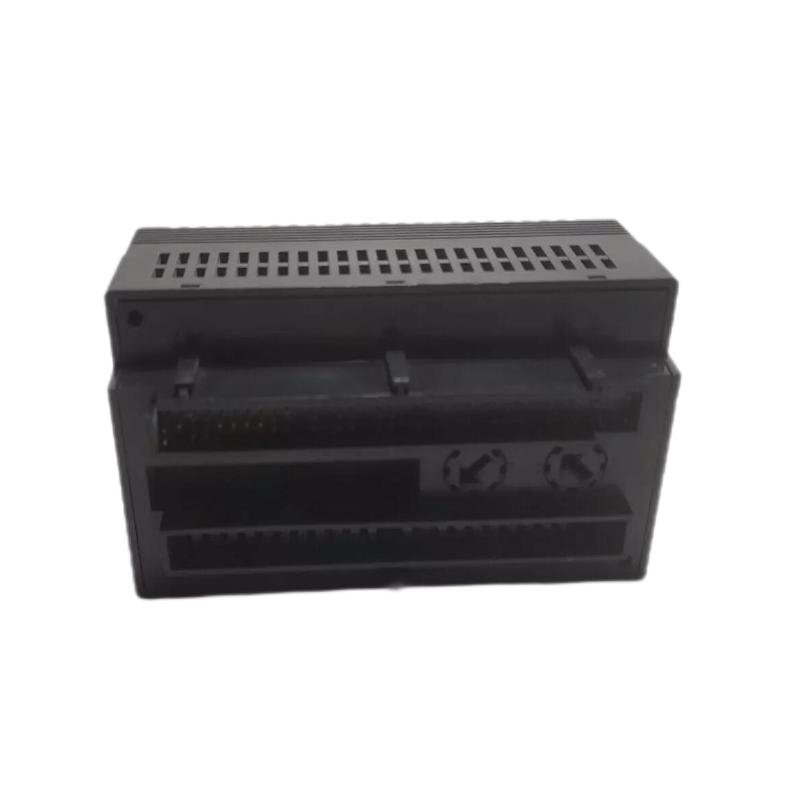

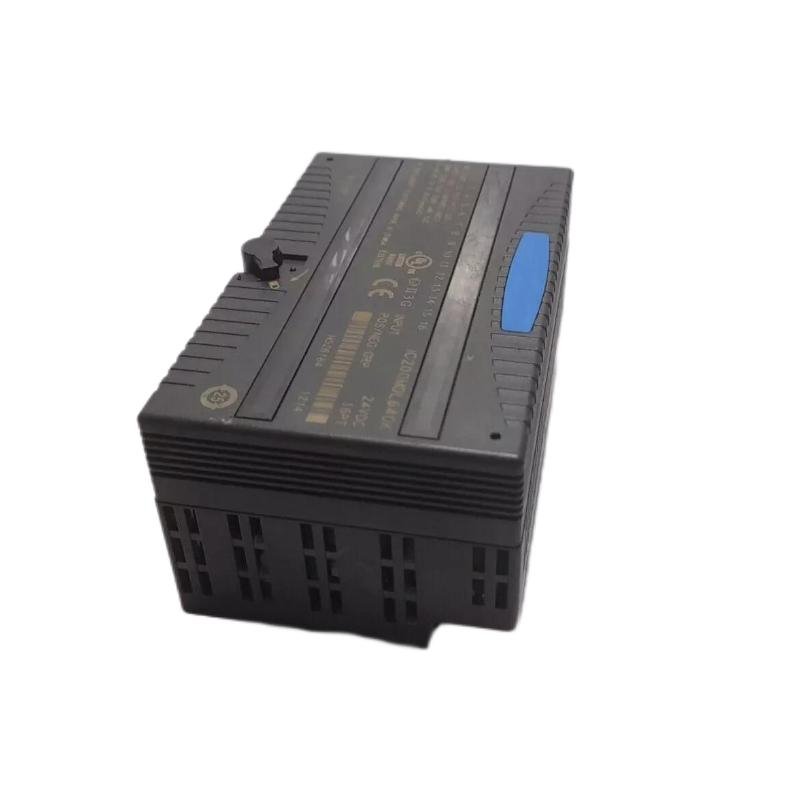

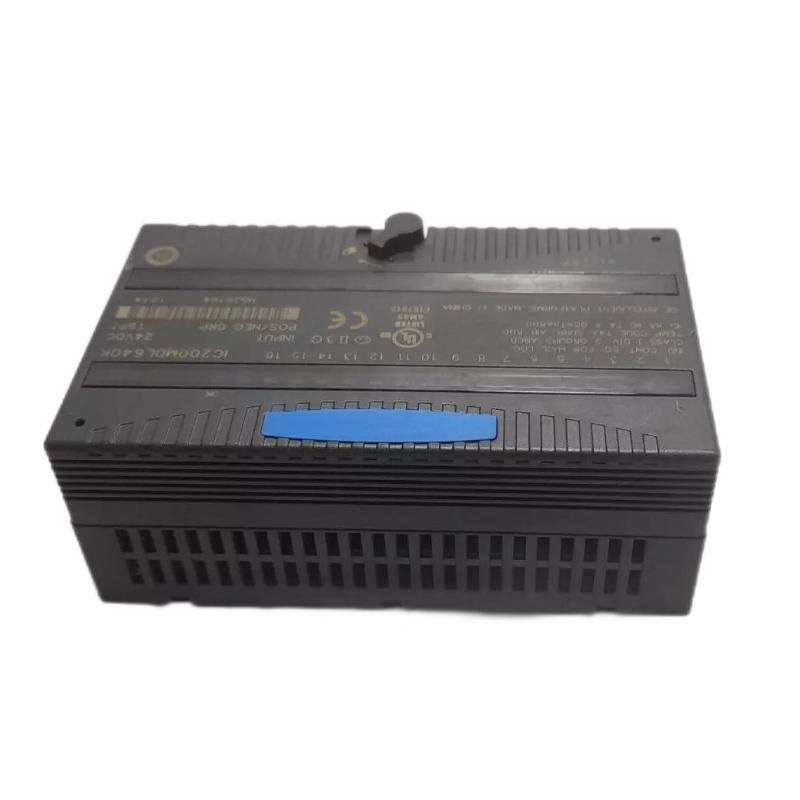

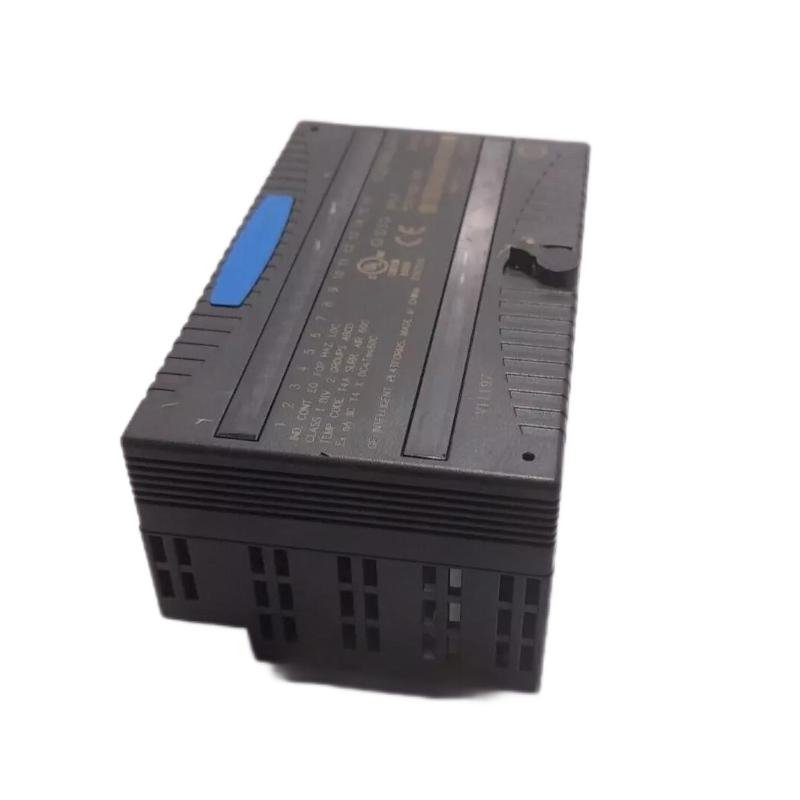

General Electric IC200MDL640K VersaMax Discrete Input Module

The GE IC200MDL640K is a VersaMax discrete input module designed for General Electric’s VersaMax PLC systems. This module is essential in industrial automation applications, providing a reliable solution for interfacing digital input signals with programmable logic controllers (PLC). The IC200MDL640K is built to work efficiently in demanding industrial environments, where it ensures quick, accurate, and dependable input signal processing.

As part of the VersaMax I/O system, the IC200MDL640K module is highly flexible and capable of handling up to 32 discrete input channels, making it suitable for a wide range of applications across different industries, including process control, manufacturing automation, energy management, and water treatment.

The IC200MDL640K module is designed to receive 24VDC digital signals from various field devices such as switches, sensors, and relays. These input signals are then processed by the module and converted into a format that can be read by the VersaMax PLC, allowing for real-time monitoring and control of industrial equipment. The module also provides diagnostic feedback via LED indicators, which simplifies troubleshooting and enhances system reliability.

Key Features

• 32 Digital Input Channels: The module offers 32 discrete digital input channels for receiving 24VDC signals.
• Voltage Range: Supports 24 VDC input signals, making it compatible with a wide variety of field devices.
• Compact and Space-Saving: The module’s compact design ensures easy installation, even in confined spaces, without compromising its performance.
• Fast Input Response: Provides fast signal processing, making it ideal for real-time industrial control systems.
• Wide Operating Temperature Range: Works efficiently in environments ranging from -20°C to +60°C, ensuring reliability in a variety of industrial conditions.
• High Durability: Designed to withstand the rigors of harsh industrial environments.
• Easy Troubleshooting: Equipped with LED indicators for power, input status, and error detection, allowing for quick identification of issues.
• Seamless Integration: Fully compatible with VersaMax PLC systems, ensuring smooth communication between the I/O module and the PLC.

Technical Parameters

Below is a table detailing the specifications of the GE IC200MDL640K discrete input module:

Applications

The GE IC200MDL640K discrete input module is suitable for a wide range of industrial applications that require the reliable processing of digital input signals. Some common use cases include:

• Manufacturing Automation: The module is used in manufacturing systems to monitor and control the operation of machines, sensors, and actuators.
• Process Control: Ideal for applications that involve monitoring process variables like temperature, pressure, or flow in industries such as chemicals, pharmaceuticals, and food production.
• Energy Management: In energy systems, this module is used to monitor and control electrical equipment, optimizing energy usage.
• Water Treatment: Applied in water treatment plants for controlling pumps, valves, and other equipment based on digital input signals.
• Building Automation: Used in HVAC systems and lighting control for smart building applications, managing energy use and system operations.
• Oil and Gas: Used in oil and gas fields for real-time monitoring and control of field equipment, ensuring smooth operation in remote locations.
