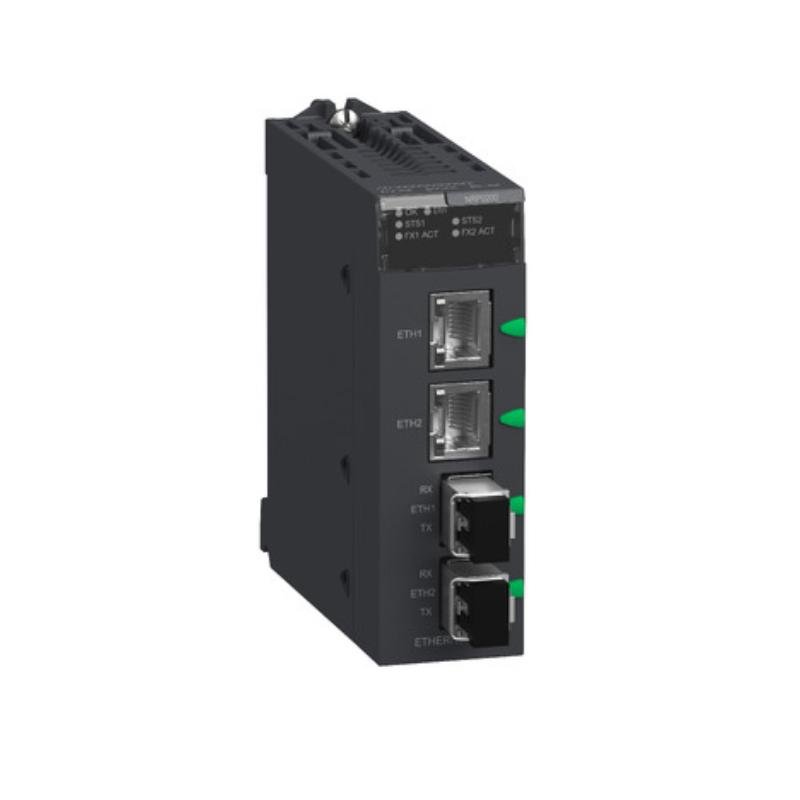

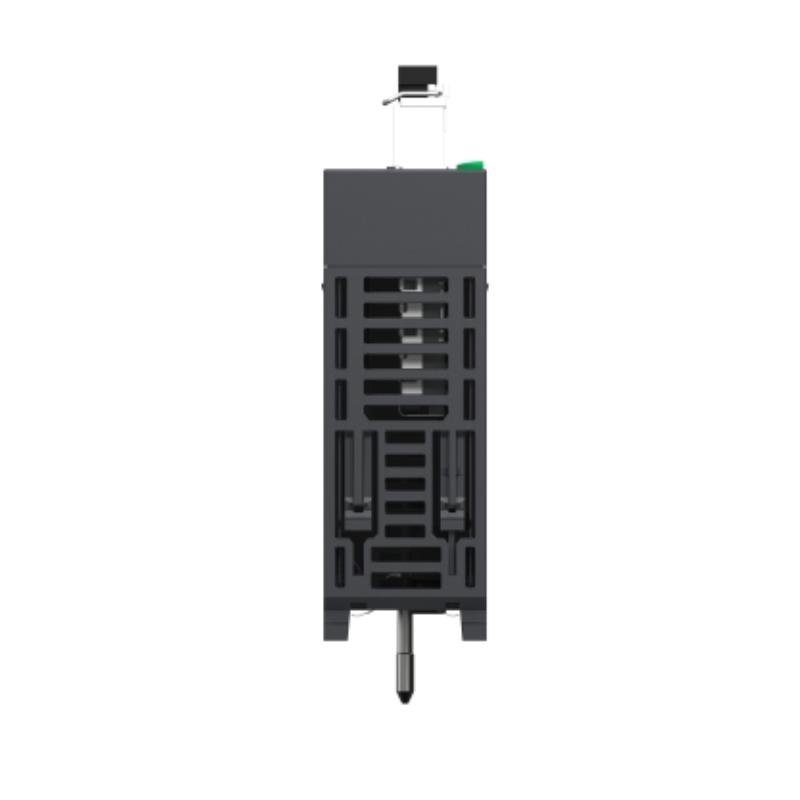

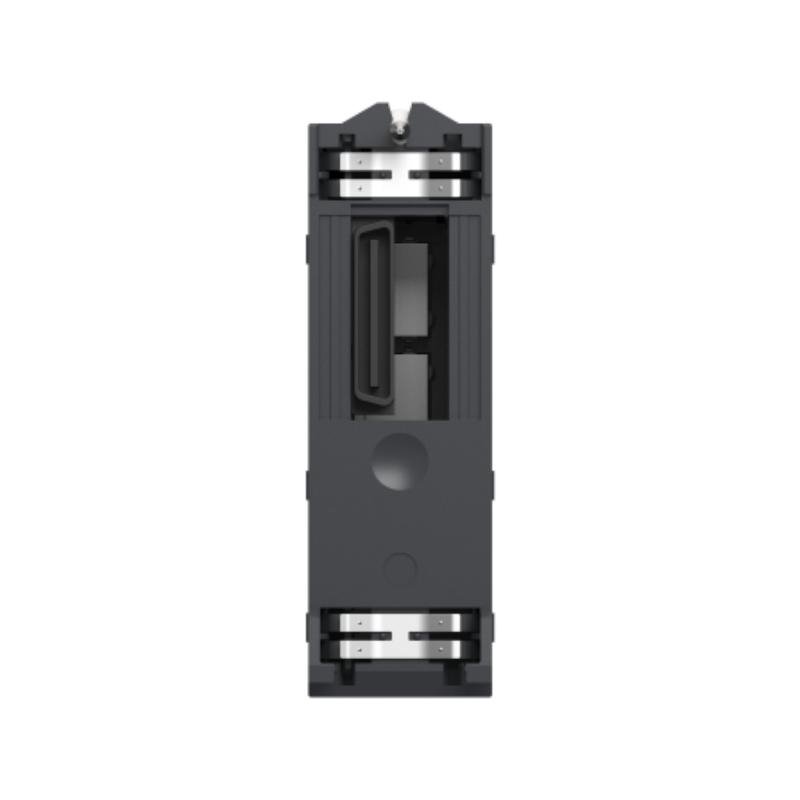

Schneider BMXNRP0200 Fiber Optic Converters
Manufacturer: Schneider Electric
Product Number: BMXNRP0200
Category: Fiber Optic Converters
Function: Provides reliable communication between Modicon PLCs and other networked devices over long distances
Features: Enables seamless conversion of electrical signals to fiber optic signals
Application: Long-distance industrial communication networks
Product Description
The Schneider BMXNRP0200 Fiber Optic Converters are designed to provide reliable communication between Schneider Electric’s Modicon PLCs and other networked devices over long distances. These converters enable the seamless conversion of electrical signals to optical signals, ensuring high-speed, noise-resistant, and long-range communication in industrial environments.
The BMXNRP0200 is ideal for applications where electrical interference is a concern, offering a secure and efficient way to extend communication ranges. It supports multiple network protocols and provides the flexibility to integrate various devices into the system. Whether in manufacturing, energy management, or process control, these fiber optic converters ensure that critical data can be transmitted reliably and efficiently over extended distances.
Key Features
-
Long-Distance Communication: Supports up to 2 km distance for reliable communication over fiber optic cables.
-
Multiple Protocol Support: Compatible with several industrial communication protocols, ensuring seamless integration with Schneider Electric’s Modicon PLC systems.
-
Noise Resistance: Fiber optic technology ensures high resistance to electromagnetic interference (EMI), ensuring stable communication even in harsh industrial environments.
-
Compact Design: Space-efficient module design, suitable for panel or DIN rail mounting.
-
Easy Integration: Can be easily integrated into existing Modicon PLC systems with minimal setup and configuration.
-
Robust Construction: Designed for reliability and durability in industrial settings.
-
High-Speed Data Transfer: Supports high-speed data transmission, enhancing overall system performance and efficiency.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 32 x 100 x 86mm |
| Weight | 0.203 kg |
General Information
| Item | Specification |
|---|---|
| Model | BMXNRP0200 |
| Manufacturer | Schneider Electric |
| Installation | DIN Rail / Panel Mount |
| Power Supply | Supplied via system backplane |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -20°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
Performance Characteristics
| Item | Specification |
|---|---|
| Communication Protocols | Supports industrial protocols (e.g., Modbus, EtherNet/IP, etc.) |
| Communication Range | Up to 2 km (depending on fiber type) |
| Fiber Type | Single-mode or Multi-mode |
| Fiber Connectors | SC, LC connectors |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±20% |
| Power Consumption | Approx. 3 W |
| Operating Current | ≤ 0.15 A |
| Status Indicators | LEDs for power, communication, and error conditions |
Industry Applications
-
Manufacturing: Extends communication between PLCs and I/O devices in large industrial setups, ensuring stable data transmission in noisy environments.
-
Energy & Power Generation: Used in power plants and substations for reliable communication over long distances between control systems and field devices.
-
Process Control: Essential in process control systems where noise immunity and data integrity are critical for maintaining operational reliability.
-
Oil & Gas: Ideal for offshore or remote operations where traditional copper wiring may not be feasible, offering long-range communication with high resistance to environmental interference.
-
Building Automation: Suitable for managing communication across large facilities with minimal wiring, ideal for HVAC, lighting, and security systems in commercial buildings.
The Schneider BMXNRP0200 Fiber Optic Converters provide a robust, reliable solution for long-distance communication in industrial systems. With its ability to transmit data over fiber optics, this device ensures high performance, noise immunity, and long-range communication for critical applications. Whether in manufacturing, energy management, or process control, the BMXNRP0200 enhances system reliability and operational efficiency.
