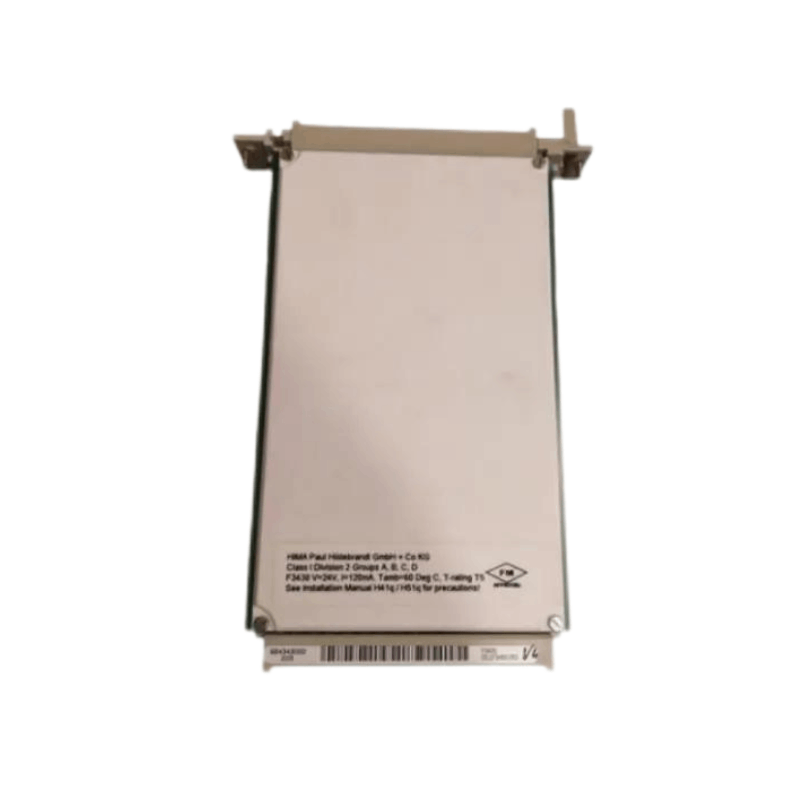

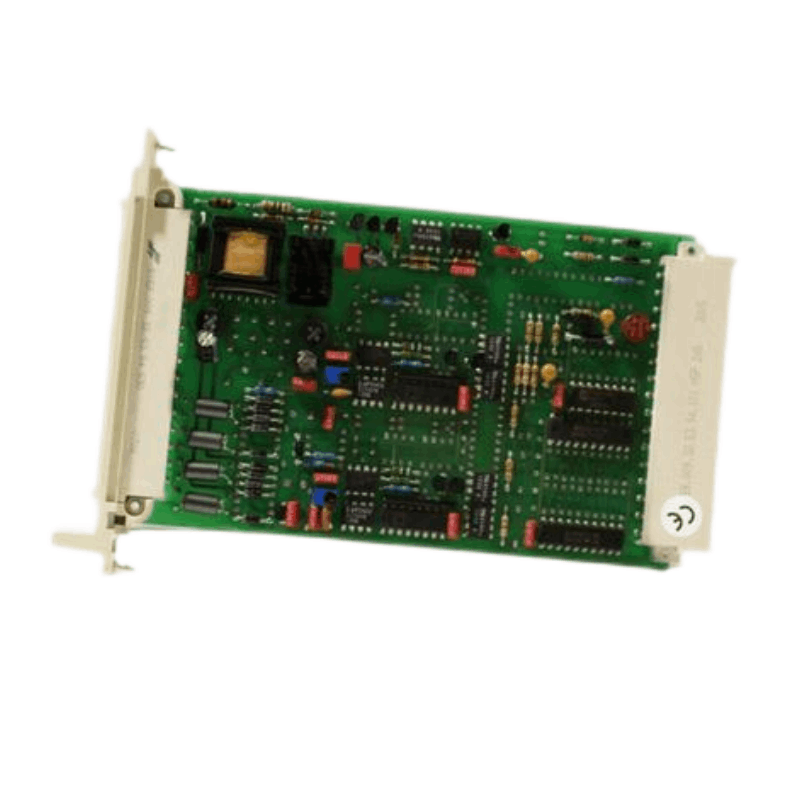

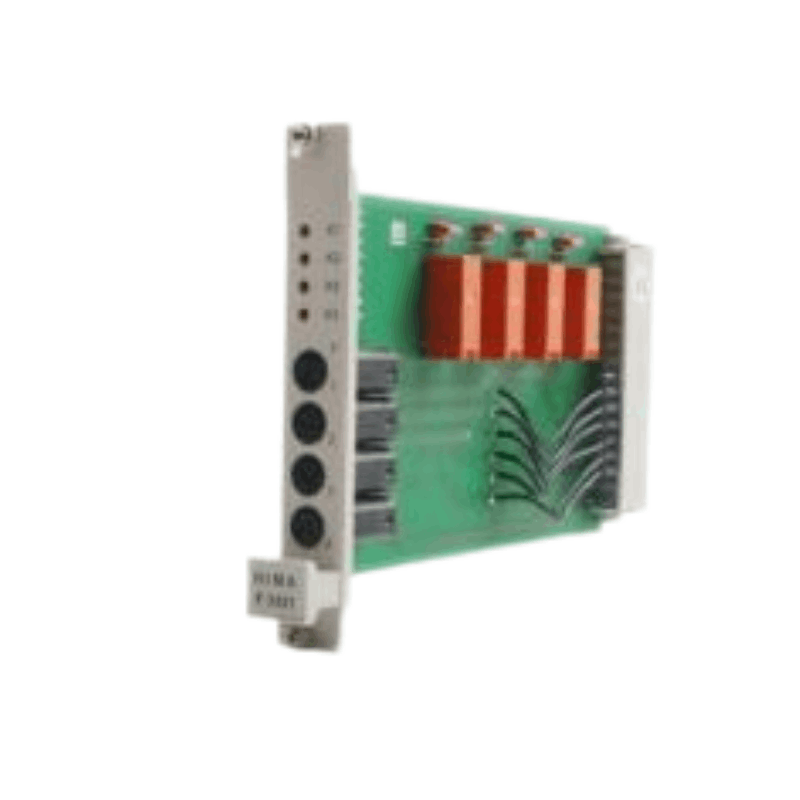

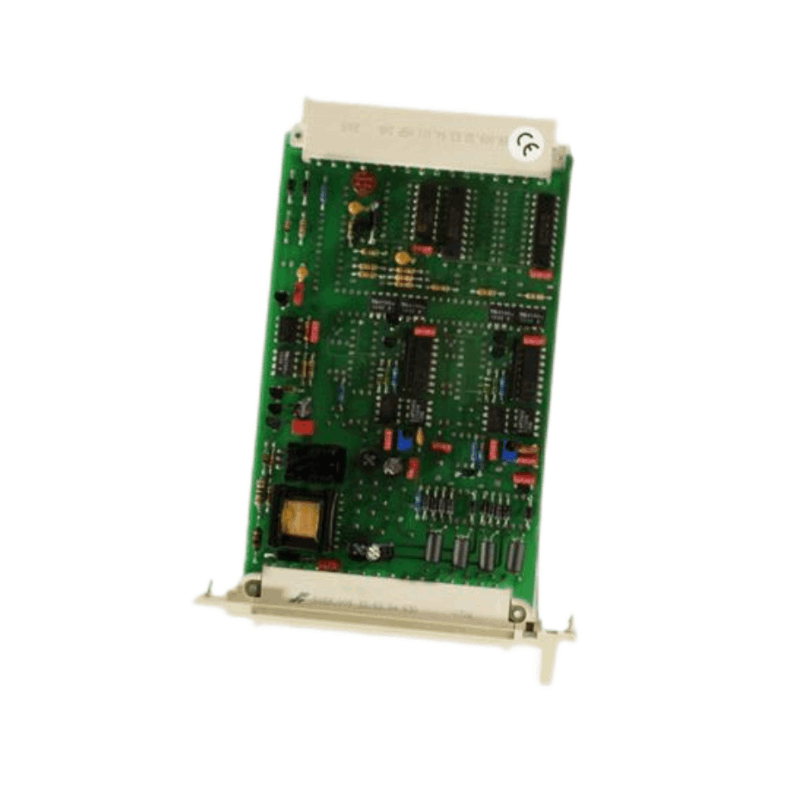

Hima F3430 4x Relay Module

The HIMA F3430 4x Relay Module is a versatile and reliable component within the Planar F system, designed to meet the rigorous demands of functional safety in industrial automation. This module provides four independent relay outputs, each capable of handling a wide range of control and safety applications, especially where fail-safe operation is critical. It ensures secure, reliable operation in safety-critical systems, making it ideal for controlling devices such as valves, actuators, and other safety-critical equipment.

The F3430 is built to comply with global safety standards such as IEC 61508 and ISO 13849, ensuring high operational safety and minimizing risks in hazardous environments. With its compact design and ease of integration into control panels, it is perfect for use in industries such as chemical processing, energy, manufacturing, and automated machinery control.

Key Features

• 4 Independent Relay Outputs: Each relay output is independent, providing flexibility and control over various devices in a single module.

• Fail-Safe Operation: Designed to automatically enter a safe state in the event of a failure, ensuring system stability and process safety.

• Electrical Isolation: Protects the connected devices from electrical faults and noise, ensuring long-term system integrity and reliability.

• Compact and Space-Efficient: Small form factor for easy integration into tight spaces, without compromising functionality or reliability.

• Real-Time Diagnostics: Equipped with diagnostics LEDs that allow operators to monitor the status of each output channel, simplifying troubleshooting and system maintenance.

• Compliance with International Standards: Meets IEC 61508 and ISO 13849 standards for functional safety, ensuring safety and regulatory compliance for critical systems.

Technical Specifications

Dimensions and Weight

Electrical Characteristics

Environmental Characteristics

System Compatibility

Industry Applications

• Process Control Systems: Used in process industries for the control of critical machinery, valves, and other devices in a reliable and fail-safe manner.

• Safety Instrumented Systems (SIS): Ensures safe operation in environments where process safety and continuous monitoring are vital.

• Energy and Utilities: Integral in controlling power plants, turbines, and other high-risk infrastructure, helping to maintain safe operations.

• Automated Manufacturing Systems: Provides safety control for automated machinery and equipment, especially in high-speed and high-risk environments.

• Chemical and Pharmaceutical Industries: Monitors and controls hazardous processes, ensuring quick reaction to faults and minimizing safety risks.

The HIMA F3430 4x Relay Module offers an advanced, reliable, and flexible solution for controlling critical systems in safety-critical applications. Its fail-safe features, real-time diagnostics, and high reliability make it indispensable for industries that demand the highest level of operational safety, such as energy, chemical processing, and automated manufacturing. With compliance to IEC 61508 and ISO 13849, the module ensures that systems are fully aligned with industry standards for functional safety, providing peace of mind in even the most challenging environments.
