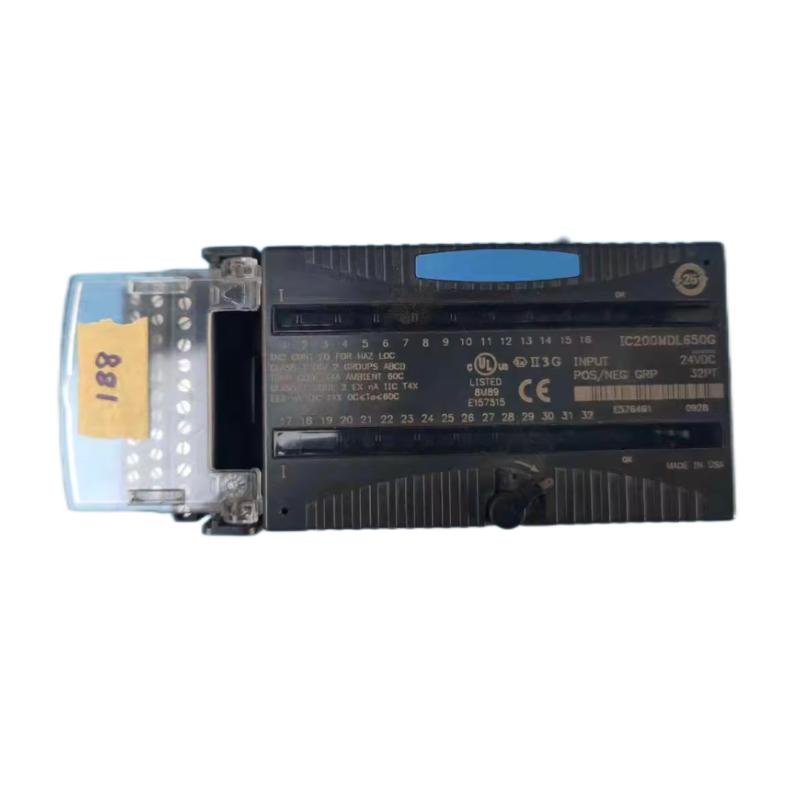

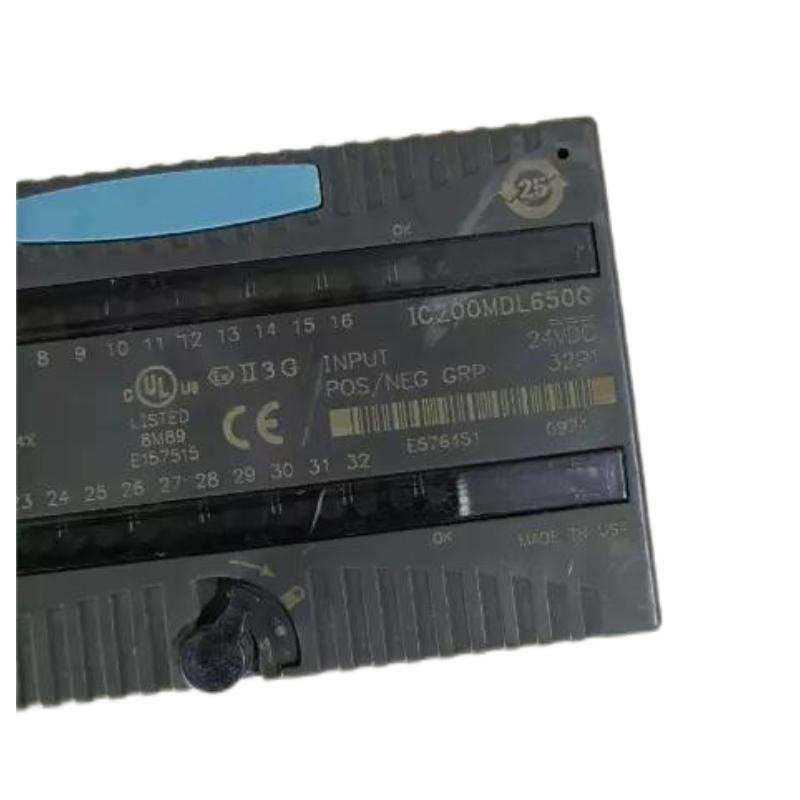

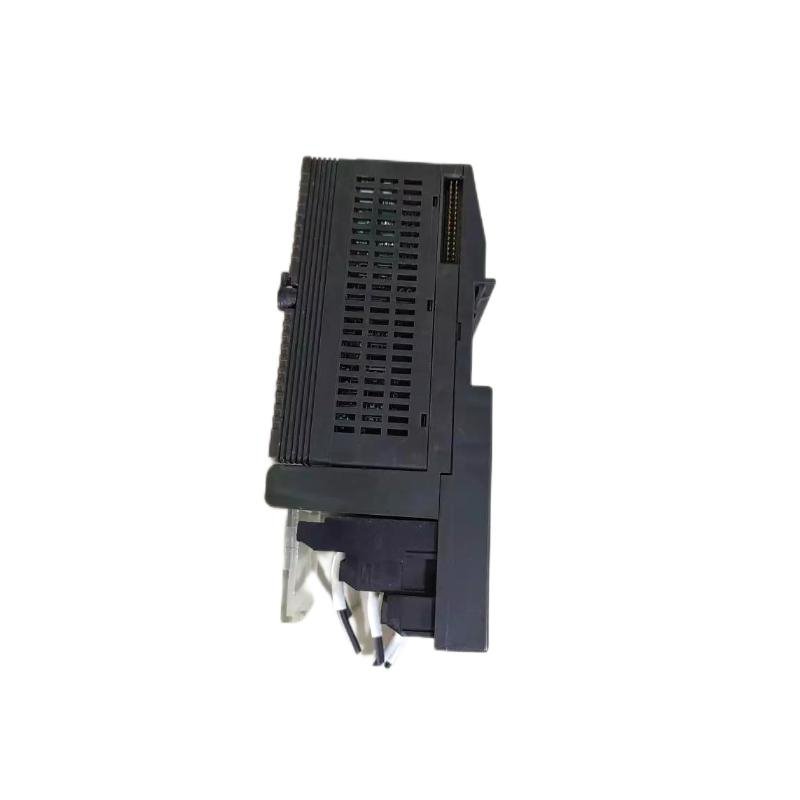

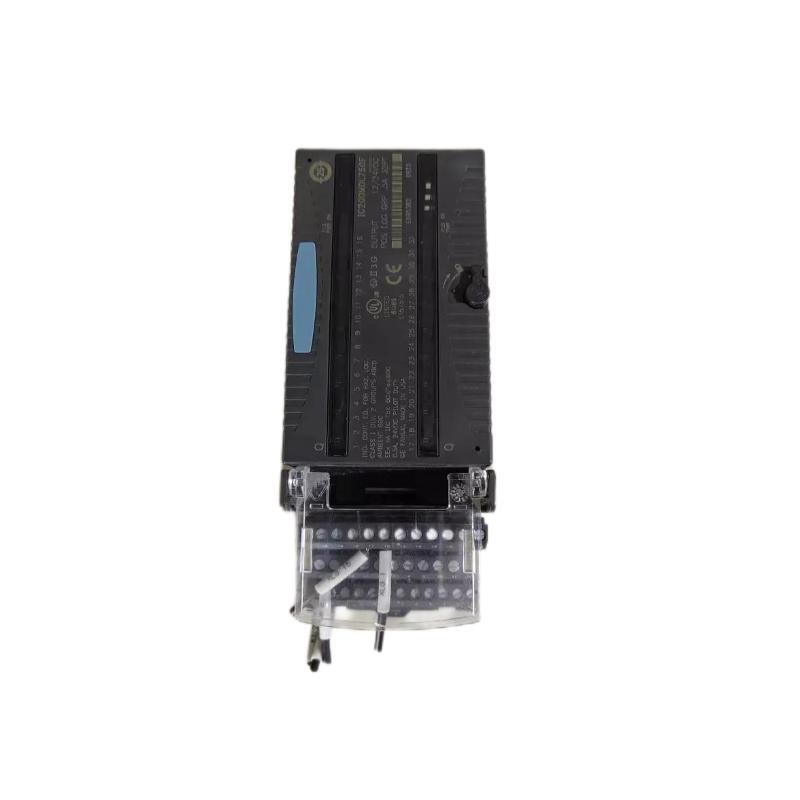

General Electric IC200MDL650G VersaMax Discrete Input Module

The GE IC200MDL650G is a versatile and high-performance VersaMax discrete input module that is designed for industrial applications requiring precise and reliable digital input processing. As a part of the VersaMax series from General Electric, this module seamlessly integrates with VersaMax PLC systems to provide superior control and automation in various industrial settings.

The IC200MDL650G module is engineered to handle digital signals from a variety of field devices such as sensors, switches, and relays. These types of input devices are commonly used in automation systems for controlling and monitoring operations in manufacturing, process control, and other industrial fields. The module’s features, such as fast response time, built-in diagnostics, and compact design, make it suitable for both small and large-scale control systems.

Key Features

• Reliable Performance: The IC200MDL650G is designed for reliable long-term operation in challenging industrial environments, offering durability and consistent performance.
• High-Speed Input Processing: This module processes digital inputs with fast response times, making it ideal for applications that require real-time monitoring and control.
• Compact and Modular Design: The module’s small form factor allows it to be used in systems with space constraints, providing flexibility without compromising functionality.
• Wide Operating Temperature Range: With a temperature range of -20°C to +60°C, the IC200MDL650G can be deployed in a variety of environments, including harsh and extreme conditions.
• Built-in Diagnostics: The IC200MDL650G includes diagnostic features that help detect faults and facilitate troubleshooting, improving system uptime and operational reliability.
• LED Indicators for Status Monitoring: LED indicators on the module provide clear and instant visual feedback on the status of each input channel, allowing for easy monitoring and quick identification of issues.
• Easy Integration: The module is designed to integrate easily with GE’s VersaMax PLC systems, enabling fast and straightforward setup in automation systems.
• Reverse Polarity Protection: The module is protected against reverse polarity, preventing damage to the internal electronics in the event of incorrect wiring.
• Power Efficiency: It is designed to minimize power consumption while maintaining high performance, making it an energy-efficient option for continuous operation in industrial control systems.

Applications

The GE IC200MDL650G module is used in various industrial automation systems for applications that require reliable digital input monitoring. Some common use cases include:

• Manufacturing Automation: Monitors signals from limit switches, proximity sensors, and other digital field devices used in automated manufacturing processes.
• Process Control: Provides input monitoring for field devices in industries such as chemical processing, oil and gas, and power generation.
• Building Automation: Used for controlling HVAC systems, lighting, security devices, and other systems in commercial and residential buildings.
• Energy Management: Monitors and controls digital input signals from devices such as energy meters, circuit breakers, and relays to manage energy consumption effectively.
• Machine Control: Provides accurate monitoring of digital inputs from various machines and equipment in factory automation systems.
• Water and Wastewater Treatment: Monitors and controls devices in water treatment plants for controlling pumps, valves, and other critical systems.
• Transportation: Used in transportation systems for monitoring digital inputs in railway signaling, airport systems, and other transportation control applications.
• Agricultural Automation: Used for monitoring sensors and controls in agricultural systems, including irrigation systems and automated farming operations.
• Material Handling: Controls digital inputs from sensors used in material handling systems, such as conveyor belts and robotic arms.
• Pharmaceutical Manufacturing: Ensures compliance with regulatory requirements by monitoring and controlling input signals in pharmaceutical manufacturing systems.

Technical Specifications

Below is a table summarizing the key specifications for the GE IC200MDL650G VersaMax Discrete Input Module:
