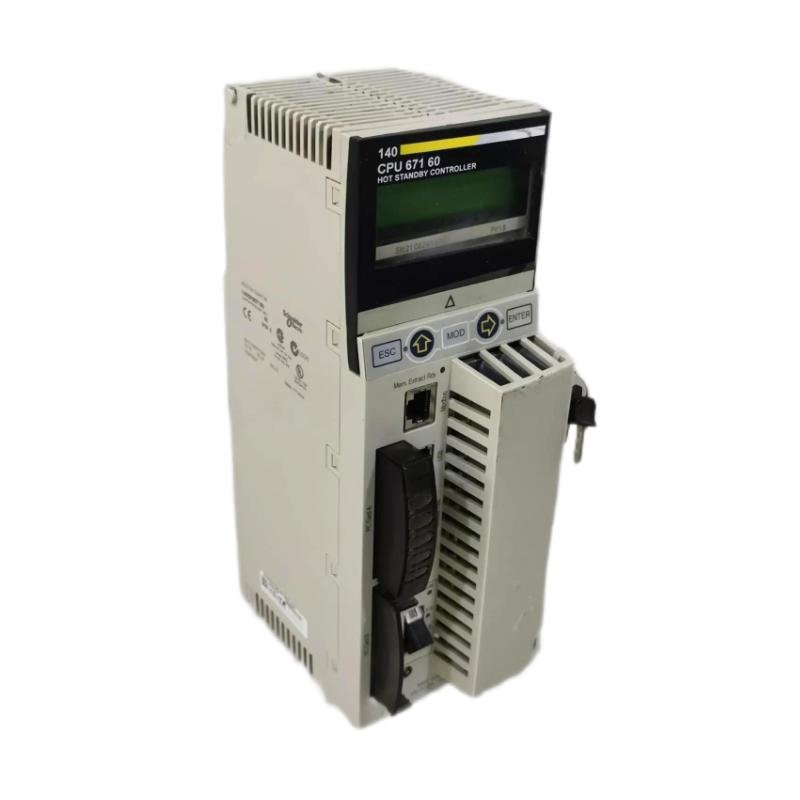

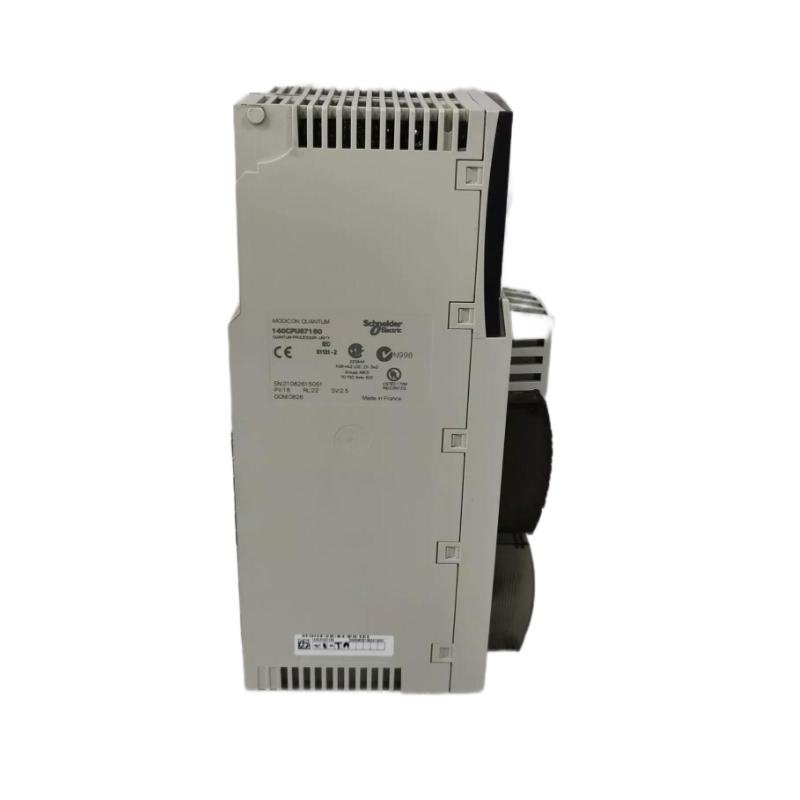

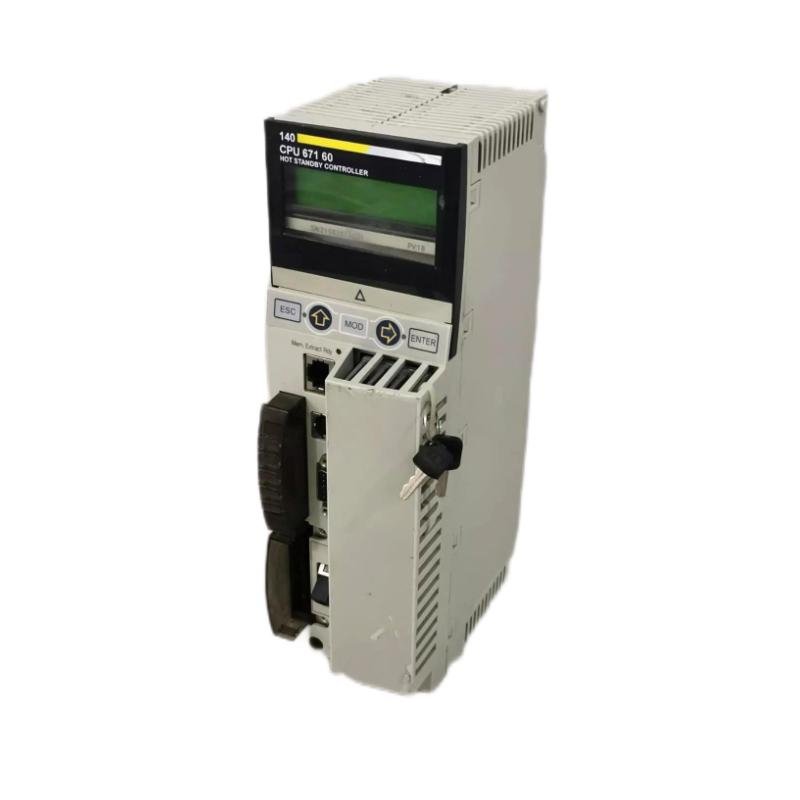

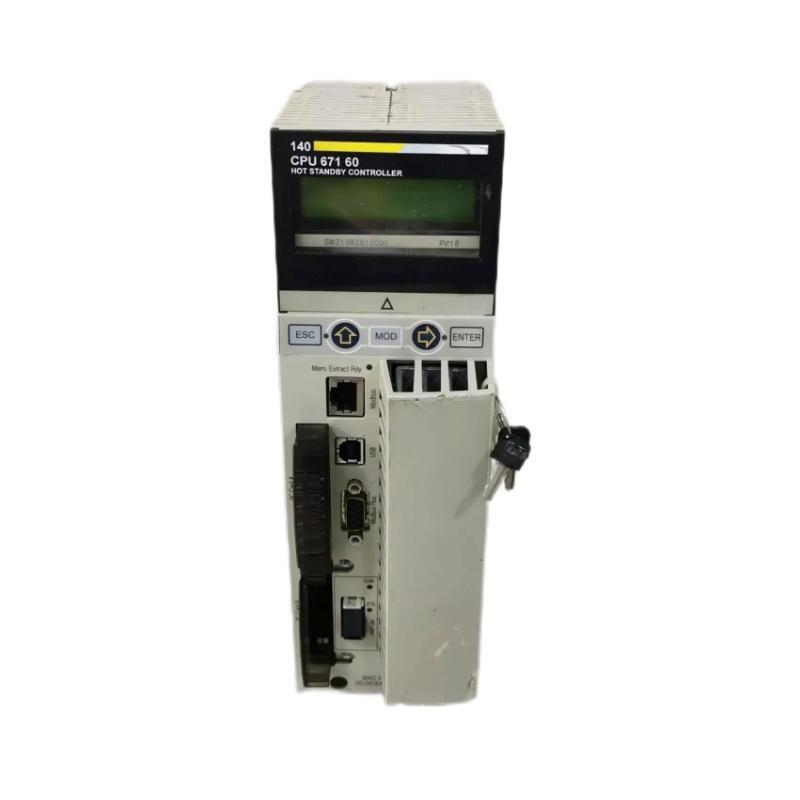

Schneider 140CPU67160 Unity Hot Standby Processor with Multi-Mode Ethernet
Manufacturer: Schneider Electric
Product Number: 140CPU67160
Category: Unity Hot Standby Processor with Multi-Mode Ethernet (Modicon Quantum)
Processor Speed: 266 MHz PowerPC
Memory: 7 MB application memory
Redundancy: Hot standby for fault-tolerant control
Communication: Multi-mode Ethernet
Product Description
The Schneider Electric 140CPU67160 is a high-performance Unity hot standby processor designed for use in Modicon Quantum automation systems. It provides redundancy, fast processing speeds, and enhanced communication capabilities, making it ideal for critical industrial applications that require high availability and reliability. Equipped with multi-mode Ethernet capabilities, this processor supports real-time data exchange, remote diagnostics, and seamless system integration.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 140CPU67160 |
| Product Type | Unity Hot Standby Processor |
| Series | Modicon Quantum |
| Processor Type | 486 DX4 |
| Processor Speed | 100 MHz |
| Memory (User Application) | 1024 KB SRAM |
| Flash Memory | 1 MB |
| Loadable Memory | 64 KB |
| Cycle Time per Instruction | 0.3 μs for Boolean instructions |
| Maximum I/O Capacity | 31 RIO drops |
| Hot Standby Redundancy | Yes |
| Communication Ports | 1x USB, 1x RS-232, 1x RJ-45 (Ethernet TCP/IP) |
| Ethernet Capabilities | Multi-mode Ethernet, 10/100 Mbps |
| Protocol Support | Modbus TCP/IP, UDP/IP, IEC 61131-2, Unity |
| Watchdog Timer | Yes |
| Backplane Compatibility | Quantum Series |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Shock Resistance | 30g |
| Vibration Resistance | 1g |
| Power Supply Voltage | 5 V DC |
| Power Consumption | 2.5 W |
| Package Dimensions (W × H × D) | 110 mm × 190 mm × 325 mm |
| Package Weight | 1.447 kg |
| Compliance & Certifications | CE, UL, CSA, ATEX, IEC 61131-2 |
Key Features and Benefits
1. Hot Standby Redundancy for High Availability
The 140CPU67160 supports hot standby operation, meaning that in the event of a primary CPU failure, the backup processor seamlessly takes over to maintain continuous system operation. This is essential for industries that require zero downtime, such as power plants, oil and gas, and water treatment facilities.
2. Powerful Processing Capabilities
With a 100 MHz 486 DX4 processor, the 140CPU67160 delivers fast processing speeds and high I/O capacity, allowing complex automation applications to run efficiently without delays.
3. Multi-Mode Ethernet for Enhanced Connectivity
Equipped with a 10/100 Mbps Ethernet port, this processor enables real-time data exchange, remote system monitoring, and seamless integration with SCADA systems. It supports Modbus TCP/IP for industrial communication and IEC 61131-2 compliance for standardized PLC programming.
4. Large Memory for Extensive Applications
The 1024 KB SRAM user memory and 1 MB Flash memory provide ample space for storing application programs, ensuring efficient execution of complex control tasks.
5. Robust Industrial Design
Designed to withstand harsh industrial conditions, the 140CPU67160 features a wide operating temperature range, shock and vibration resistance, and compliance with international safety and automation standards.
Applications
The Schneider Electric 140CPU67160 is widely used in various industries requiring high reliability and redundancy, such as:
- Power Generation and Distribution: Ensuring uninterrupted control and monitoring of power plants.
- Oil & Gas Industry: Managing refineries, pipelines, and offshore platforms with critical process automation.
- Water and Wastewater Treatment: Controlling pumps, valves, and sensors for optimized water processing.
- Manufacturing & Industrial Automation: Supporting large-scale production lines with real-time control.
- Pharmaceutical & Chemical Processing: Maintaining precise environmental conditions for sensitive manufacturing processes.
