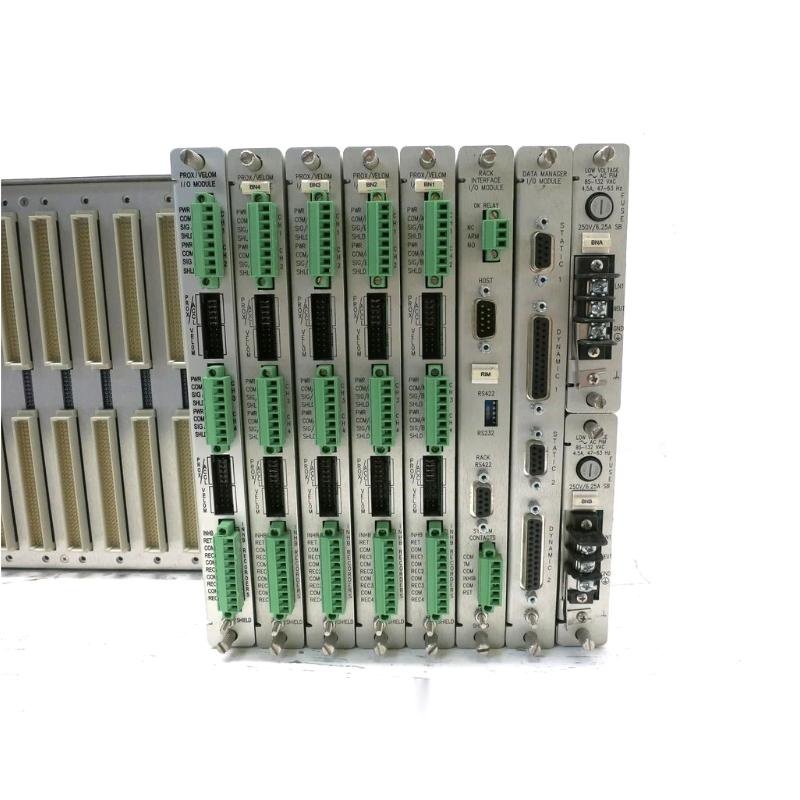

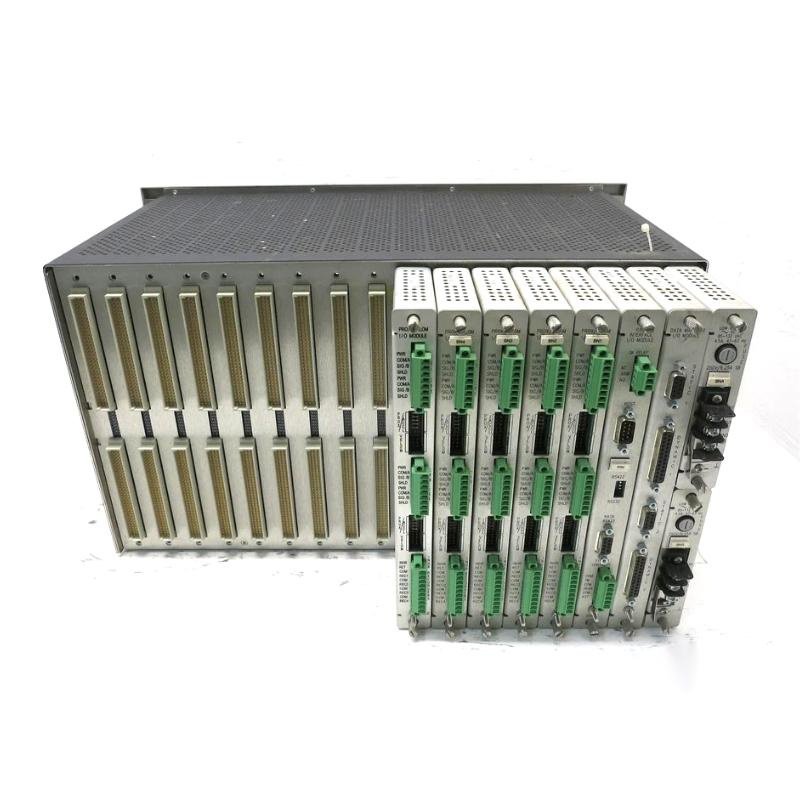

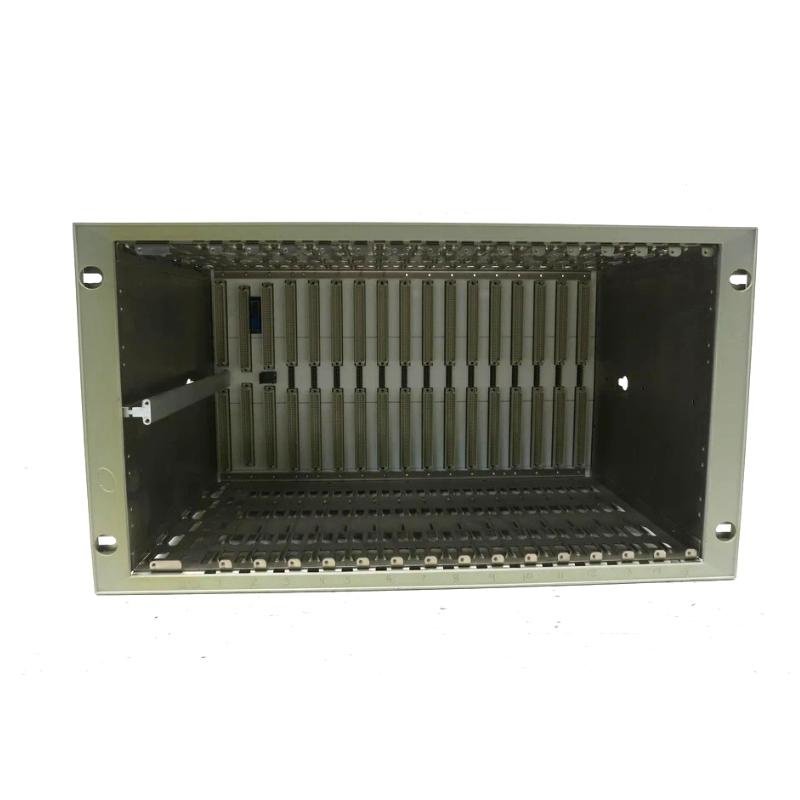

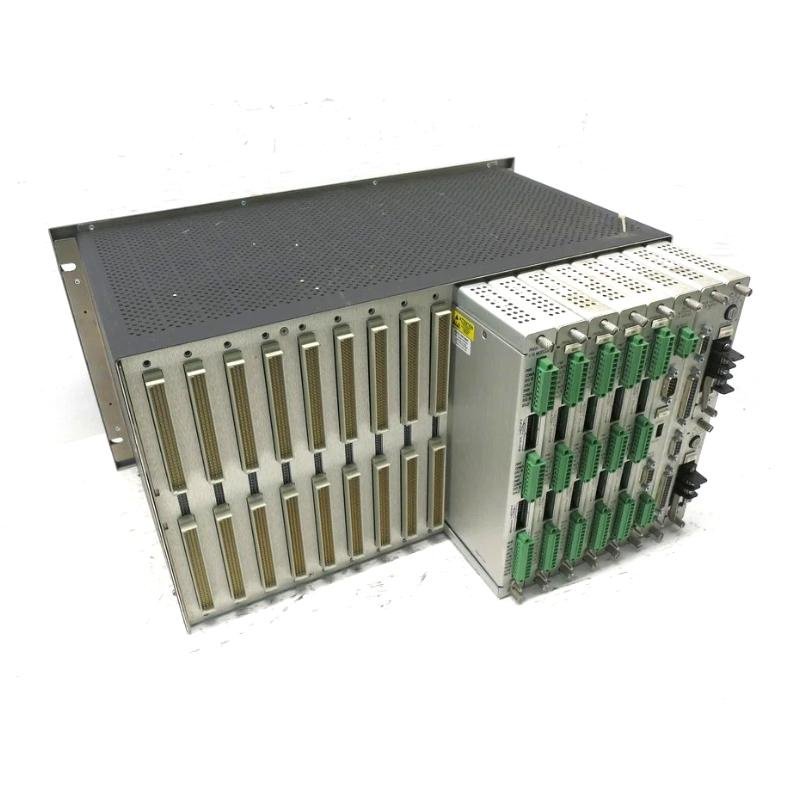

Bently Nevada 3500/05-01-03-00-01 rack assembly
Manufacturer: Bently Nevada
Product Number: 3500/05-01-03-00-01
Category: Rack Assembly (3500 Series Machinery Protection System)
Number of Slots: 14-slot
System Compatibility: Bently Nevada 3500 Series Machinery Protection System
Function: Provides reliable housing platform for monitoring modules, power supplies, and communication interfaces
Product Description
The Bently Nevada 3500/05-01-03-00-01 is a robust rack unit engineered for the 3500 Series Machinery Protection System, providing a reliable housing platform for monitoring modules, power supplies, and communication interfaces. With its 14-slot standard 19-inch rack design, it supports a wide range of monitoring configurations, enabling flexible system integration. This rack version is designed with durability and efficiency in mind, ensuring uninterrupted performance in demanding industrial environments.
Main Features
-
14-slot rack capacity for multi-module integration
-
Standard 19-inch rack format for easy installation in industrial cabinets
-
Hot-swappable module support for reduced downtime during maintenance
-
High structural integrity for harsh operating conditions
-
Certified compliance with CE and EMC standards for global applications
-
Wide operating temperature range for reliable performance in critical environments
-
Optimized power distribution system ensuring stable module operation
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 3500/05-01-03-00-01 |
| Product Type | System Rack |
| Mounting | 19-inch EIA Rack |
| Operating Temp. | -52°C to +100°C |
| Storage Temp. | -52°C to +105°C |
| Compliance | CE, EMC |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24V DC |
| Module Slots | 14 |
| Hot-Swappable | Yes |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 10–90% RH (non-condensing) |
| Vibration | 5–150 Hz, 2G |
| Shock Resistance | 15G, 11ms |
| Protection Class | IP20 |
Industry Applications
The Bently Nevada 3500/05-01-03-00-01 rack is applied in various industries requiring continuous machinery protection and monitoring, such as:
-
Oil & Gas: Monitoring compressors, pumps, and turbines in refining and transportation systems
-
Power Generation: Ensuring reliability of turbines, generators, and auxiliary systems
-
Chemical Processing: Supporting critical rotating machinery in production and refining units
-
Pharmaceutical Manufacturing: Providing secure monitoring for precision equipment
-
Water and Wastewater Treatment: Safeguarding pumps, blowers, and treatment machinery
-
Metals and Mining: Protecting mills, crushers, and other heavy-duty rotating assets
