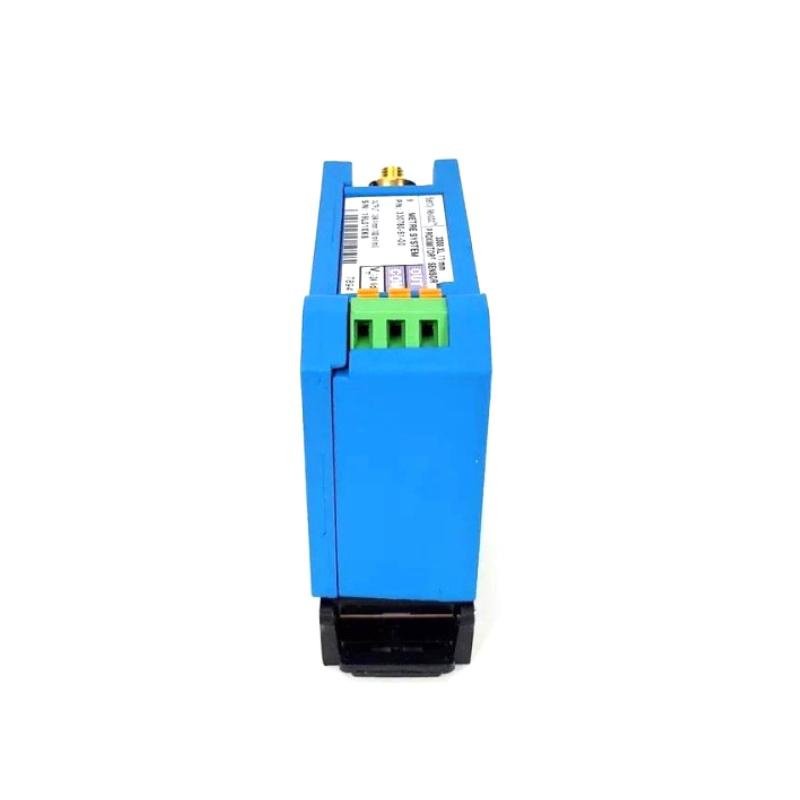

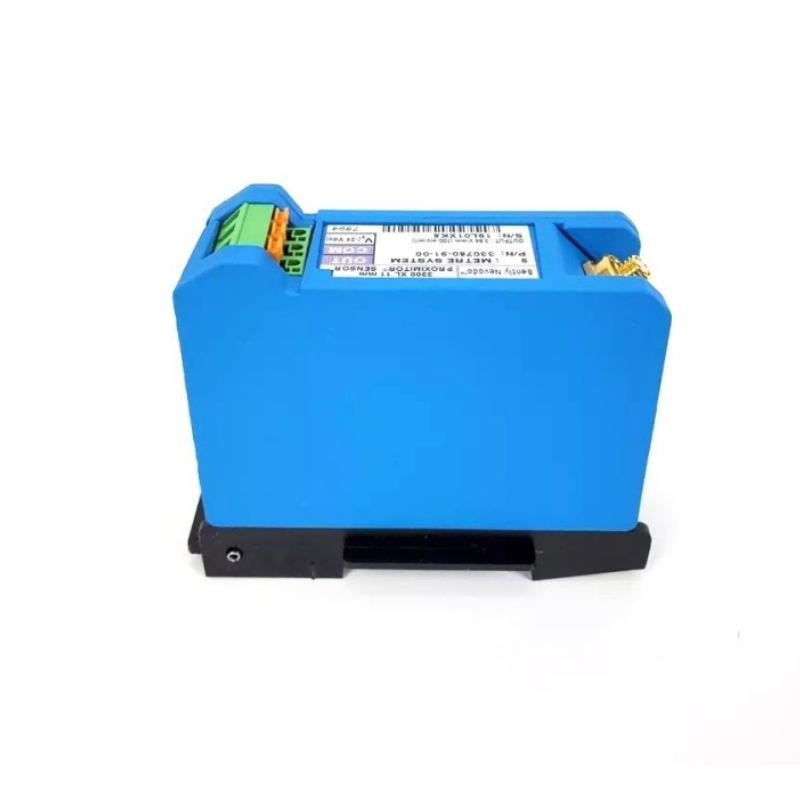

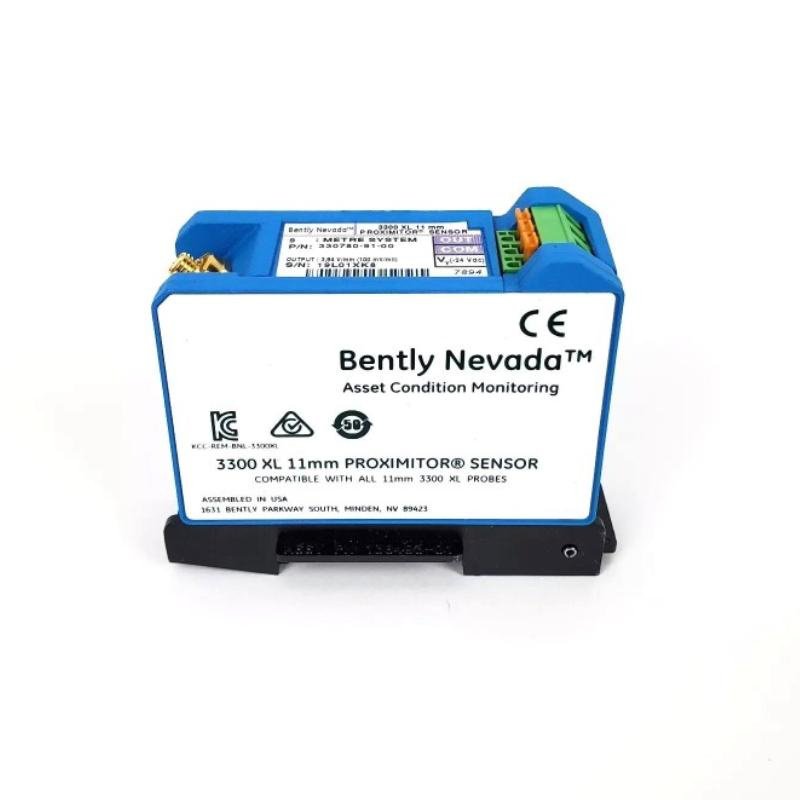

Bently Nevada 330780-91-00 Proximitor/Proximity Sensor Module
Manufacturer: Bently Nevada
Product Number: 330780-91-00
Category: Proximitor Sensor (3300 XL 11 mm System)
System Compatibility: 3300 XL 11 mm Proximity Transducer System
Supply Voltage: 24 VDC
Output Signal: 4-20 mA proportional to vibration/displacement
Frequency Response: 0 to 10,000 Hz
Operating Temperature: -35°C to +85°C
Product Description
The Bently Nevada 330780-91-00 is a Proximitor Sensor designed for use in the 3300 XL 11 mm Proximity Transducer System.
It provides precise, non-contact measurement of shaft vibration and position, enabling continuous monitoring and protection of critical rotating machinery such as turbines, compressors, motors, and pumps.
This model features a 10.0-meter total system length (including probe, extension cable, and proximitor), making it ideal for installations where the monitoring cabinet is located at a greater distance from the measurement point.
The 330780-91-00 is designed to meet API 670 machinery protection standards, ensuring accurate and reliable performance in demanding industrial environments.
Key Features
-
Designed for 11 mm 3300 XL proximity probes
-
10.0 m total system length (probe + extension cable + proximitor)
-
High accuracy and linearity for both static and dynamic measurements
-
Non-contact eddy-current sensing for vibration and displacement
-
Rugged design for industrial and high-temperature environments
-
Excellent EMI/RFI immunity
-
Fully API 670 compliant for use in machinery protection systems
-
Compatible with Bently Nevada 3500 and 1900 series monitors
Technical Specifications
| Parameter | Specification | Description / Notes |
|---|---|---|
| Model Number | 330780-91-00 | Proximitor Sensor (11 mm System) |
| Manufacturer | Bently Nevada (GE Measurement & Control) | — |
| Measurement Type | Non-contact vibration and position | Eddy-current sensing principle |
| Compatible Probe System | 11 mm 3300 XL Proximity Probe | Matched set required |
| System Length | 10.0 m (32.8 ft) | Probe + extension cable + proximitor |

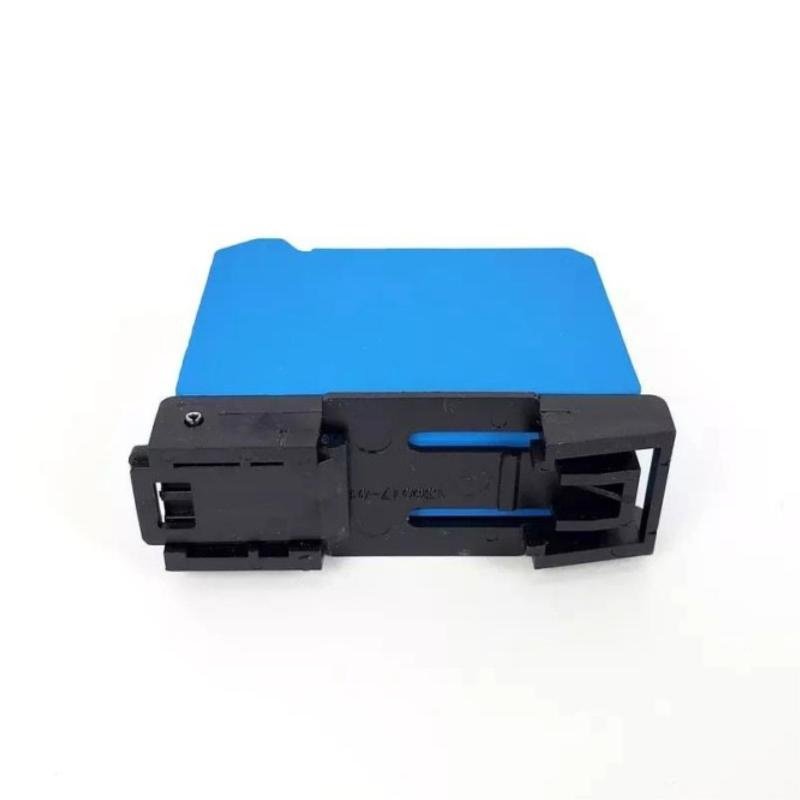

| Mounting Type | DIN Rail | Standard industrial mounting |
| Output Sensitivity | 3.94 V/mm (100 mV/mil) | Standard calibration |
| Linear Range | 0 to 2.3 mm (0 to 90 mils) | Full linear measurement range |
| Output Voltage Range | –10 V DC to –2 V DC | Proportional to probe gap |
| Frequency Response | DC to 10 kHz | Suitable for vibration and displacement |
| Power Supply Voltage | –23 V DC to –25 V DC | Typical –24 V DC nominal |
| Accuracy | ±0.5 % of full scale | Within calibrated range |
| Operating Temperature (Electronics) | –35 °C to +100 °C | Continuous operation |
| Probe Operating Temperature | –35 °C to +177 °C | Extended temperature range |
| Storage Temperature | –55 °C to +85 °C | Non-operational condition |
| Relative Humidity | 5 %–95 % (non-condensing) | Industrial environments |
| Recommended Target Size | ≥ 30.5 mm flat surface | Ensures linear calibration |
| Electrical Isolation | Input/output isolated | Reduces noise and interference |
| Housing Material | Aluminum alloy (A380) | Rugged and corrosion-resistant |
| Compliance Standards | API 670, CE, CSA | Meets global industry standards |
| Dimensions (H × W × D) | 103 mm × 75 mm × 52 mm (4.06 × 2.95 × 2.05 in) | Standard proximitor enclosure |
| Weight | Approx. 0.82 kg (1.81 lb) | Typical module weight |
