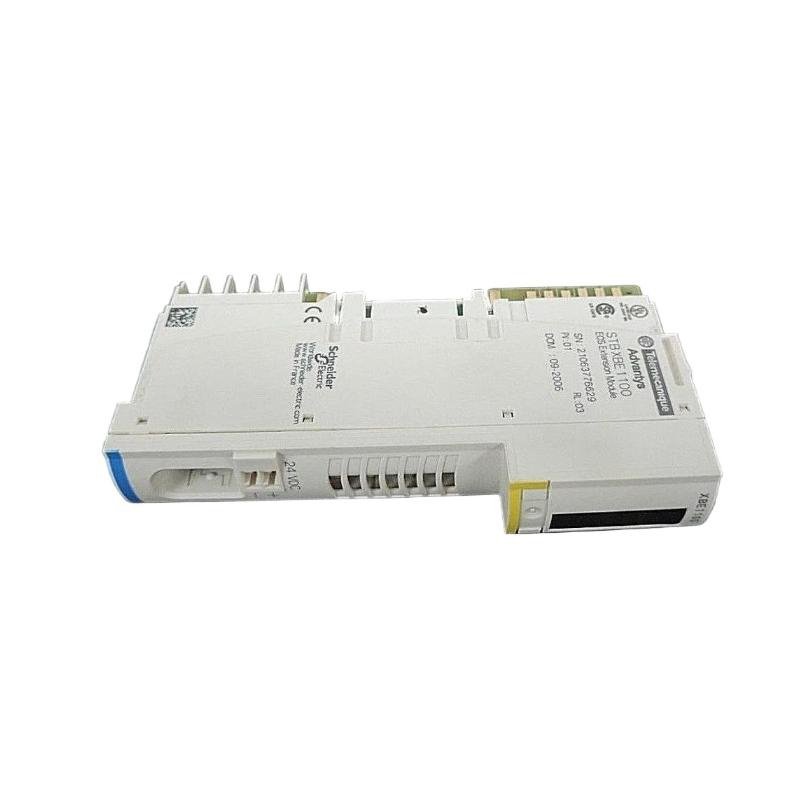

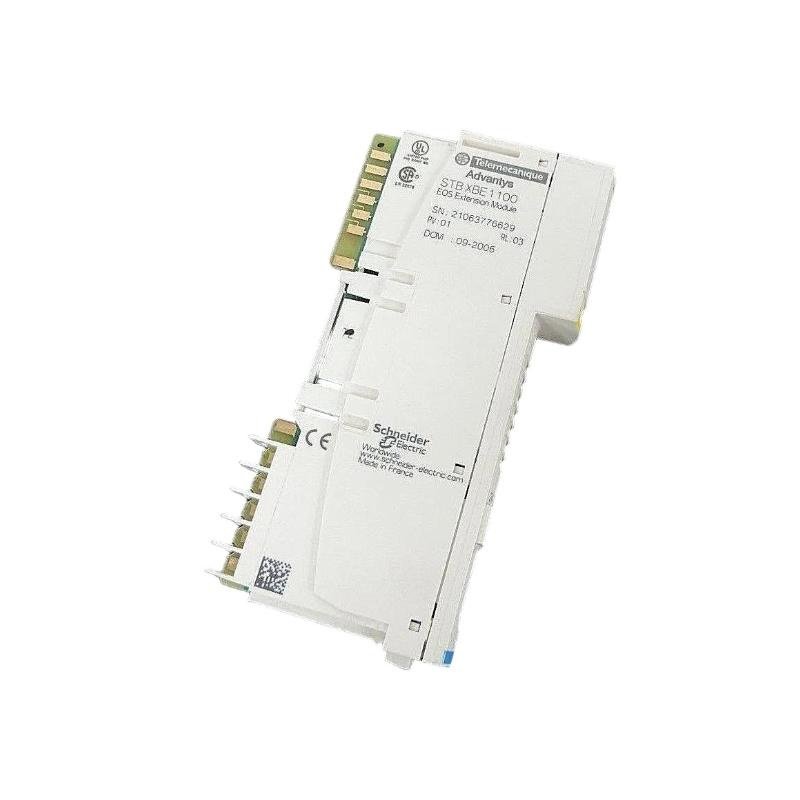

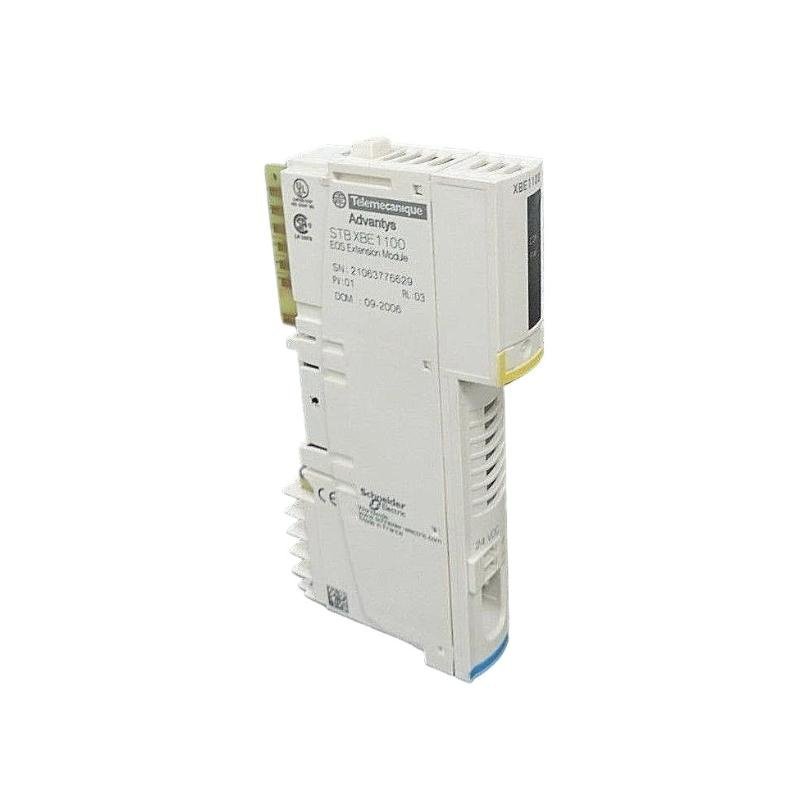

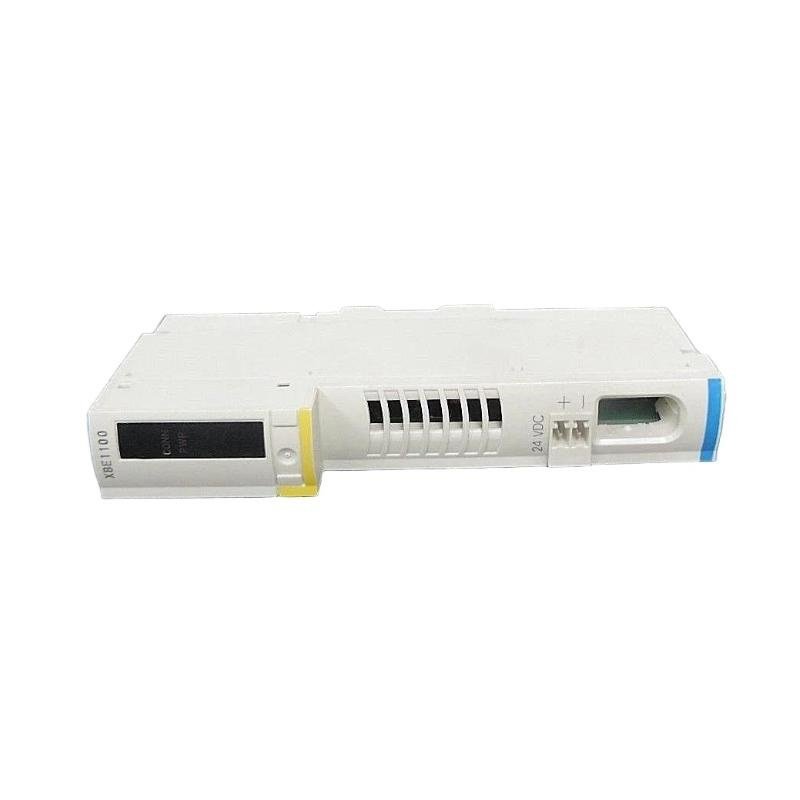

Schneider STBXBE1100 EOS Internal Bus Expansion Module
Manufacturer: Schneider Electric
Product Number: STBXBE1100
Category: EOS Internal Bus Expansion Module
System Compatibility: Schneider Electric EOS automation systems
Function: Extends internal bus connections, enabling additional modules to be integrated
Product Description
The Schneider STBXBE1100 is an internal bus expansion module designed to enhance communication capacity within Schneider Electric’s EOS automation systems. This module facilitates the extension of internal bus connections, enabling additional I/O modules and system components to be integrated seamlessly. It supports scalable system growth while maintaining high-speed data transfer and system integrity.
Key Features
-
Internal Bus Expansion–Increases the number of connected modules on the EOS bus
-
High-Speed Communication–Maintains fast data transfer rates for real-time control
-
Plug-and-Play Installation–Simple integration into existing EOS racks without complex wiring
-
Compact Design–Optimizes space within control cabinets
-
Robust and Reliable–Designed for industrial environments with high noise immunity
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 × 100 × 40 mm |
| Weight | 0.3 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Module Type | Internal Bus Expansion Module |
| Compatible Systems | Schneider Electric EOS series |
| Communication Bus | EOS internal communication bus |
| Power Supply | Supplied via EOS rack |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Vibration Resistance | Complies with IEC standards |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Schneider EOS Control Systems |
Industry Applications
-
Industrial Automation–Expands system I/O capacity in EOS control systems
-
Manufacturing–Supports flexible system scaling for production automation
-
Building Automation–Enhances control system integration and expansion
-
Energy Management–Facilitates system growth in energy monitoring setups
-
Water and Wastewater–Provides scalable control for treatment plants
The Schneider STBXBE1100 EOS Internal Bus Expansion Module offers a reliable and easy-to-install solution for expanding the communication capabilities of Schneider EOS automation systems. Its robust design and compact footprint ensure dependable performance in a variety of industrial environments.
