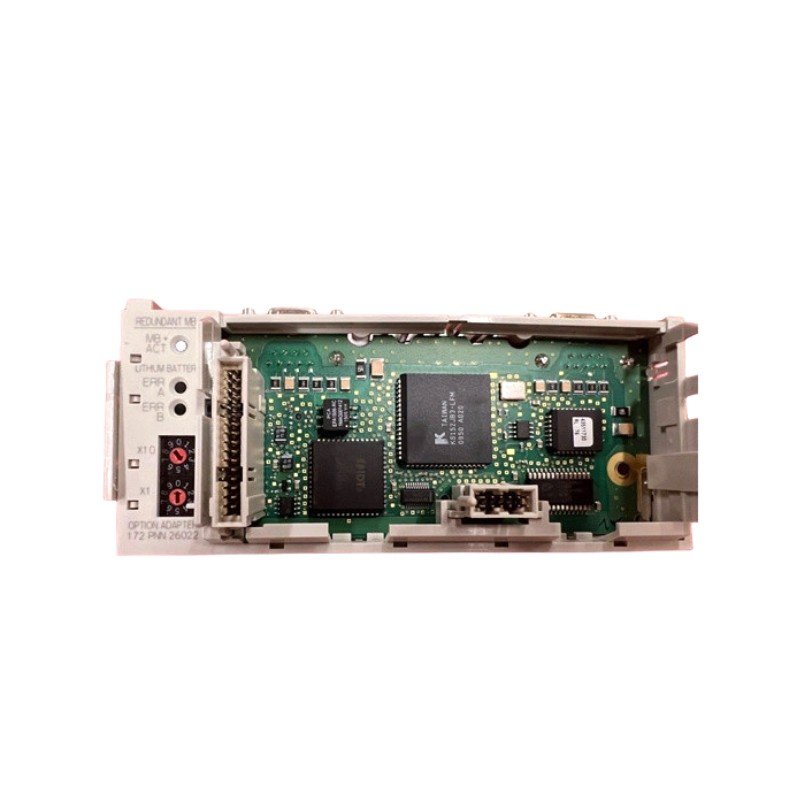

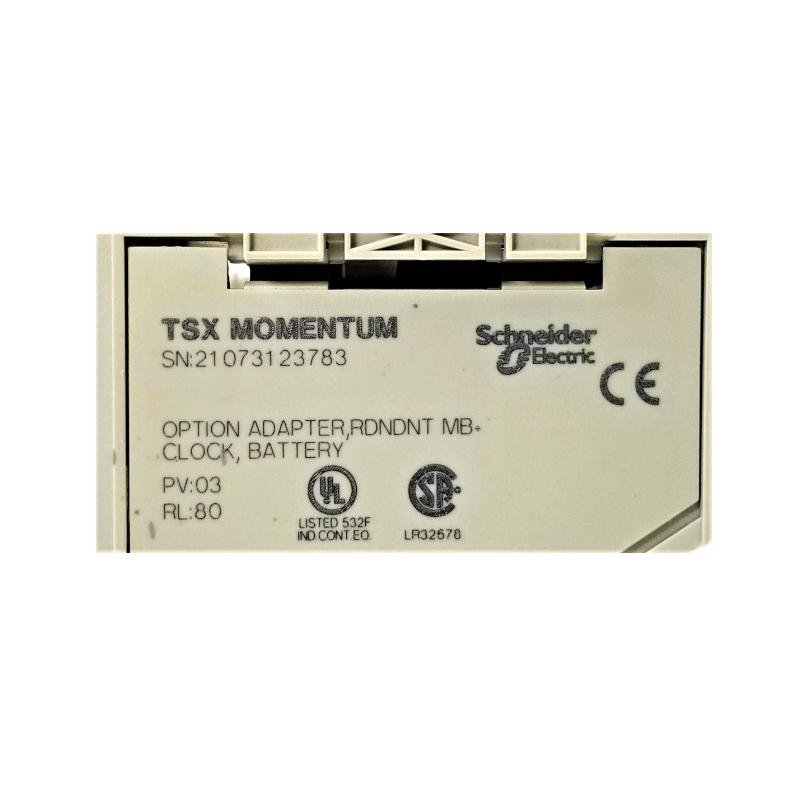

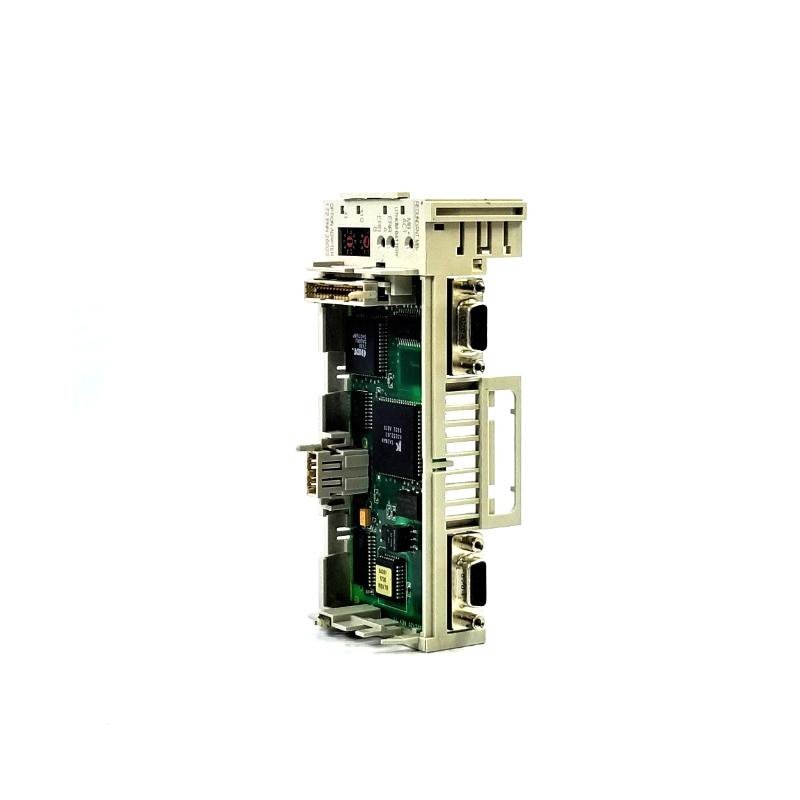

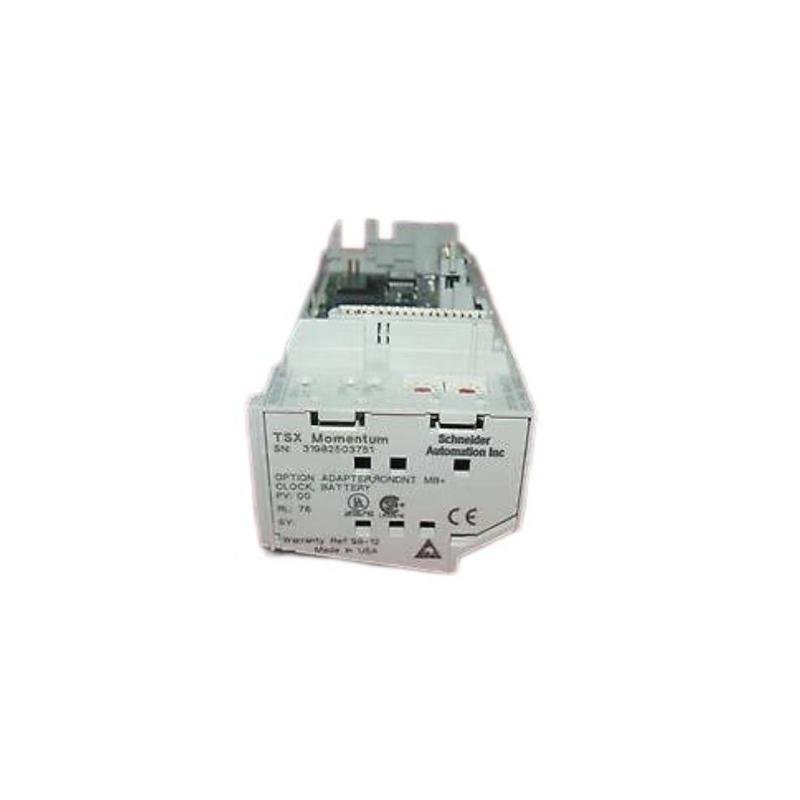

Schneider 172PNN26022 Modbus Plus Option Adapter
Manufacturer: Schneider Electric
Product Number: 172PNN26022
Category: Modbus Plus Option Adapter (Modicon Momentum)
System Compatibility: Modicon Momentum control platform
Protocol: Modbus Plus
Function: Allows processors and I/O bases to communicate via high-speed deterministic Modbus Plus network
Product Description
The Schneider 172PNN26022 Modbus Plus Option Adapter is an intelligent communication module designed for the Modicon Momentum control platform. It allows processors and I/O bases within the system to communicate via the high-speed, deterministic Modbus Plus network. Ideal for real-time control and monitoring applications, this module provides enhanced data transfer performance and seamless integration with distributed industrial automation systems.
Key Features
-
Modbus Plus Network Interface: Enables high-speed, token-passing communication across industrial systems.
-
Plug-and-Play Design: Easily installs into Modicon Momentum I/O bases without complex configuration.
-
Reliable Data Transfer: Supports deterministic, peer-to-peer communications, ideal for time-critical applications.
-
Compact and Durable: Rugged form factor suitable for harsh industrial environments.
-
Diagnostic LEDs: Provides clear visual status indicators for quick troubleshooting.
-
Seamless Integration: Compatible with other Schneider Electric control platforms and software tools.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 25 x 143.1 x 60.06 mm |
| Weight | 0.085 kg |
Module Information
| Item | Specification |
|---|---|
| Model Number | 172PNN26022 |
| Module Type | Modbus Plus Option Adapter |
| Mounting | Plug-in to Modicon Momentum I/O base |
| Communication | Modbus Plus |
Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 5 VDC (via I/O base connection) |
| Power Consumption | < 3 W |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Schneider Modicon Momentum Platform |
| Network Support | Modbus Plus |
| Configuration Software | Concept, Unity Pro, or applicable tools |
Industry Applications
-
Manufacturing Automation: Enhances data exchange between controllers and remote I/O systems.
-
Energy Management Systems: Used in substations and energy distribution for monitoring and control.
-
Water/Wastewater Treatment: Facilitates communication in SCADA systems for real-time plant control.
-
Oil & Gas: Reliable performance in hazardous environments for drilling and production control.
-
Material Handling: Used in conveyor systems and automated storage for high-speed coordination.
The Schneider 172PNN26022 Modbus Plus Option Adapter provides robust, high-speed communication for Momentum control systems. Its integration with Modbus Plus networks makes it ideal for distributed industrial automation applications that demand speed, reliability, and scalability.
